B250G - i7

7th Gen Core™ i7, 256GB SSD, DP+HDMI, Intel® LAN, M.2 NVMe.

Intel® Core™ i7-7700T
Intel® B250 Express Chipset
Intel® 630 Graphics HDMI+DP Dual 4K Displays
8GB RAM, 256GB M.2 SSD
PCIe 16x Slot + M.2 SSD Socket
1 x Intel® GigaLAN, 11ac WiFi
Microsoft Windows 10
6 USB 3.0, 3 USB 2.0, 1 Type-C™
Dimensions: 300B: 2.2" (H)x8.1(W)x8.1(D)
Applications:Network Appliance, POS, Signage, Kiosk, Digital Home，AV Entertainment, Surveillance, PBX, Thin Client

This is the award-winning model that was reviewed in PC Magazine, 10/11/2017. Click HERE for the review.

To customize this model, please use our standard B250G product page. click here

SKU: B250G-i7 Promo

Specifications
Request for Info

Product specifications

Processor • Intel® 7th Generation Kaby Lake processor • LGA1151 socket series with 35W to 91W TDP • Intel® Core™ i7 processor 7700 series • Intel® Core™ i5 processor 7500/7400 series • Intel® Core™ i3 processor • Intel® Pentium® processor • Intel® Celeron® processor , • Intel® 6th Generation Skylake processor • LGA1151 socket series with 35W to 65W TDP • Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W) • Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W) • Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W) • Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W) Chipset • Intel® B250 • ITE® 8628CX I/O Controller
Memory • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory • Support for DDR4 2400/2133 MHz memory modules • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules • Support for Extreme Memory Profile (XMP) memory modules(* To support 2400 MHz or XMP memory, you must install a 7th generation processor.） Expansion Slot • 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Network • Intel® GbE LAN chip (10/100/1000 Mbit) Graphics • Integrated Graphics Processor- Intel® HD Graphics support: • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz（* Support for DisplayPort 1.2 version.） • 1 x HDMI® port, supporting a maximum resolution of 4096x2160@24 Hz（* Support for HDMI® 1.4 version.） • Maximum shared memory of 1 GB
Storage • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) • 4 x SATA 6Gb/s connectors Audio • Realtek® ALC892 codec • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out

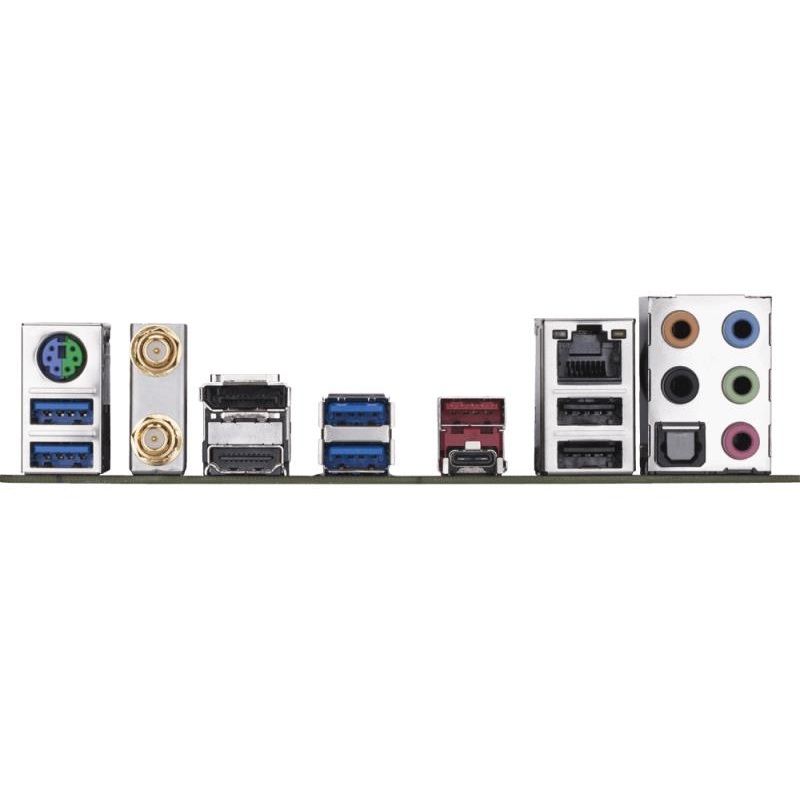

Internal I/O • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 4 x SATA 6Gb/s connectors • 1 x CPU fan header • 2 x system fan headers • 1 x front panel header • 1 x front panel audio header • 1 x S/PDIF Out header • 1 x USB 3.1 Gen 1 header • 1 x USB 2.0/1.1 header • 1 x speaker header • 1 x RGB (RGBW) LED strip extension cable header • 1 x Clear CMOS jumper • 1 x chassis intrusion header Back Panel I/O • 1 x PS/2 keyboard/mouse port • 2 x SMA antenna connectors (2T2R) • 1 x DisplayPort • 1 x HDMI® port • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support • 1 x USB 3.1 Gen 2 Type-A port (red) • 4 x USB 3.1 Gen 1 ports • 2 x USB 2.0/1.1 ports • 1 x RJ-45 port • 1 x optical S/PDIF Out connector • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

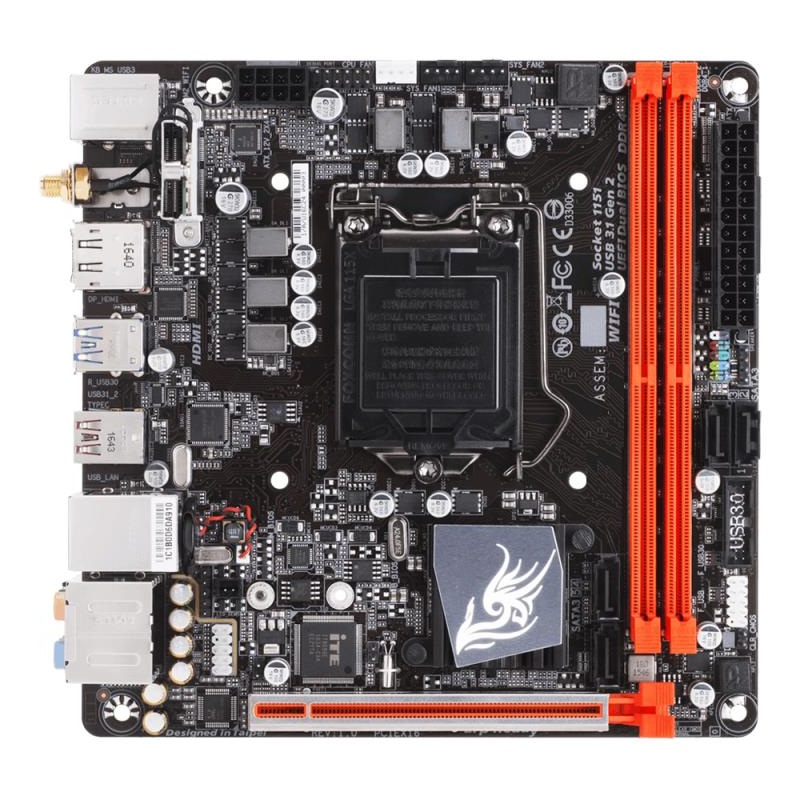

System BIOS • 2 x 64 Mbit flash • Use of licensed AMI UEFI BIOS • Support for DualBIOS™ • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Systemboard • Small Form Factor(6.7" x 6.7") • Back I/O
Chassis • Small Form Factor with aluminum panel, convertible to 1U Rackmount • Dimensions: 175C: 1.75(H)x8(W)x8(D ) inch • 300B: 2.2(H) x 8.1 (W) x 8.1 (D) inch • 1750F: 1.75(H) x 12.25 (W) x 8.1(D) inch Fanless chassis • Weight: 3 lb. Net 10 lb (with packaging) • Drive Bay: one 2.5" internal for HD or SSD • Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available. • Supports VESA, wall mount or rackmount brackets. • Optonal Chassis: 1750C or 500B with RISER Slot; 500A with DVD/Blu-ray, 730N5 with 5x 3.5" HD Power • DC12V 5-12.5A input 2.5mm, Optional up to 400W AC Powered with 550PS or 1U-1000S Case • AC Adapter: 60W, 80W, 120W or 150W 90V-240V; UL, CSA, FCC, CE Certified • Power Cord: Standard US Power Cord included, European Power Cord available as option. • Energy Star Compliance, Idle mode at <1W
OS Support • Support for Windows 10 64-bit (for 7th Generation Intel® processors) • Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6th Generation Intel® processors) Application • Digital Signage, Kiosk, Surveillance, POS, Media Player, IPTV, Network Appliance, IP/PBX, Medical Equipment, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® 7th Generation Kaby Lake processor • LGA1151 socket series with 35W to 91W TDP • Intel® Core™ i7 processor 7700 series • Intel® Core™ i5 processor 7500/7400 series • Intel® Core™ i3 processor • Intel® Pentium® processor • Intel® Celeron® processor , • Intel® 6th Generation Skylake processor • LGA1151 socket series with 35W to 65W TDP • Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W) • Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W) • Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W) • Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W) Chipset • Intel® B250 • ITE® 8628CX I/O Controller
Memory • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory • Support for DDR4 2400/2133 MHz memory modules • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules • Support for Extreme Memory Profile (XMP) memory modules(* To support 2400 MHz or XMP memory, you must install a 7th generation processor.） Expansion Slot • 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Network • Intel® GbE LAN chip (10/100/1000 Mbit) Graphics • Integrated Graphics Processor- Intel® HD Graphics support: • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz（* Support for DisplayPort 1.2 version.） • 1 x HDMI® port, supporting a maximum resolution of 4096x2160@24 Hz（* Support for HDMI® 1.4 version.） • Maximum shared memory of 1 GB
Storage • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) • 4 x SATA 6Gb/s connectors Audio • Realtek® ALC892 codec • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out
Internal I/O • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 4 x SATA 6Gb/s connectors • 1 x CPU fan header • 2 x system fan headers • 1 x front panel header • 1 x front panel audio header • 1 x S/PDIF Out header • 1 x USB 3.1 Gen 1 header • 1 x USB 2.0/1.1 header • 1 x speaker header • 1 x RGB (RGBW) LED strip extension cable header • 1 x Clear CMOS jumper • 1 x chassis intrusion header Back Panel I/O • 1 x PS/2 keyboard/mouse port • 2 x SMA antenna connectors (2T2R) • 1 x DisplayPort • 1 x HDMI® port • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support • 1 x USB 3.1 Gen 2 Type-A port (red) • 4 x USB 3.1 Gen 1 ports • 2 x USB 2.0/1.1 ports • 1 x RJ-45 port • 1 x optical S/PDIF Out connector • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
System BIOS • 2 x 64 Mbit flash • Use of licensed AMI UEFI BIOS • Support for DualBIOS™ • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Systemboard • Small Form Factor(6.7" x 6.7") • Back I/O
Chassis • Small Form Factor with aluminum panel, convertible to 1U Rackmount • Dimensions: 175C: 1.75(H)x8(W)x8(D ) inch • 300B: 2.2(H) x 8.1 (W) x 8.1 (D) inch • 1750F: 1.75(H) x 12.25 (W) x 8.1(D) inch Fanless chassis • Weight: 3 lb. Net 10 lb (with packaging) • Drive Bay: one 2.5" internal for HD or SSD • Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available. • Supports VESA, wall mount or rackmount brackets. • Optonal Chassis: 1750C or 500B with RISER Slot; 500A with DVD/Blu-ray, 730N5 with 5x 3.5" HD Power • DC12V 5-12.5A input 2.5mm, Optional up to 400W AC Powered with 550PS or 1U-1000S Case • AC Adapter: 60W, 80W, 120W or 150W 90V-240V; UL, CSA, FCC, CE Certified • Power Cord: Standard US Power Cord included, European Power Cord available as option. • Energy Star Compliance, Idle mode at <1W
OS Support • Support for Windows 10 64-bit (for 7th Generation Intel® processors) • Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6th Generation Intel® processors) Application • Digital Signage, Kiosk, Surveillance, POS, Media Player, IPTV, Network Appliance, IP/PBX, Medical Equipment, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
