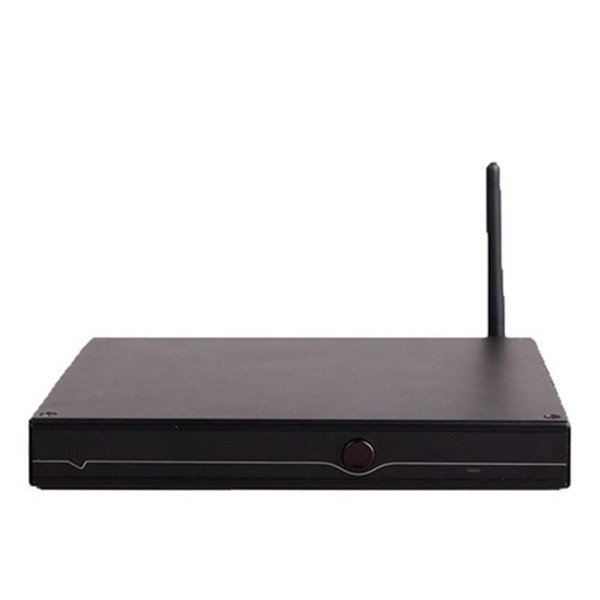

Picture of D67

D67

Intel® Core™ i5-7200u, HDMI, DP, SATA, mSATA, SIM

Featured Highlights
•	Intel® Core™ i5-7200u Processor
•	Intel® Kaby Lake Platform (SOC)
•	Intel® HD 520 Graphics, 4K Resolution, HDMI+DP
•	2 x DDR3L SO-DIMM for up to 16GB Memory
•	2 x MiniPCIe slots
•	1 Intel® Gigabit LAN
•	2 USB 3.0, 2 USB 2.0, Type C
•	1 x SATA, 1 x mSATA
•	5.1 ALC662 Audio Sound
•	Power Supply: DC19V input
•	OS Support: Windows 10 64-bit, Linux, IOT
•	Applications: Set Top Box, Digital Signage, etc.

SKU: D67

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 15W • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u Chipset • Intel® Kaby Lake Platform (SOC)
Graphics • Intel® HD 520 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics Port Memory • 2 x DDR3L SO-DIMM • 1600/1333MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 16GB
Network • 1 x Intel® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Optional WiFi via miniPCIe module • Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module Expansion Slot • 2 x MiniPCIe sockets • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe x4 NVMe) • 1 x SIM socket for 3G/4G-LTE option
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe x4 NVMe) • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card Audio • Realtek® ALC662 6-channel (5.1)
Back Panel I/O • 1 x USB Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 1 x HDMI® port • 1 x DP port • 1 x LAN port Other I/O • 2 x USB 3.0 Ports (Front) • 2 x USB 2.0 Ports (Front)
Chassis • Nano -booksize I series • Dimensions: 7.48"W x 5.87D x 1.18H Weight 7lbs • Color: Black • 1 x SATA, 1 x m • Power Supply:DC12-19V input Power Supply • Power: DC19V Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10 64-bit, Linux, IOT • Option: Windows 7 (works with Skylake Processor family only) Application • Set Top Box, Digital Signage, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 15W • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u Chipset • Intel® Kaby Lake Platform (SOC)
Graphics • Intel® HD 520 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics Port Memory • 2 x DDR3L SO-DIMM • 1600/1333MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 16GB
Network • 1 x Intel® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Optional WiFi via miniPCIe module • Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module Expansion Slot • 2 x MiniPCIe sockets • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe x4 NVMe) • 1 x SIM socket for 3G/4G-LTE option
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s • 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe x4 NVMe) • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card Audio • Realtek® ALC662 6-channel (5.1)
Back Panel I/O • 1 x USB Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 1 x HDMI® port • 1 x DP port • 1 x LAN port Other I/O • 2 x USB 3.0 Ports (Front) • 2 x USB 2.0 Ports (Front)
Chassis • Nano -booksize I series • Dimensions: 7.48"W x 5.87D x 1.18H Weight 7lbs • Color: Black • 1 x SATA, 1 x m • Power Supply:DC12-19V input Power Supply • Power: DC19V Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10 64-bit, Linux, IOT • Option: Windows 7 (works with Skylake Processor family only) Application • Set Top Box, Digital Signage, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
