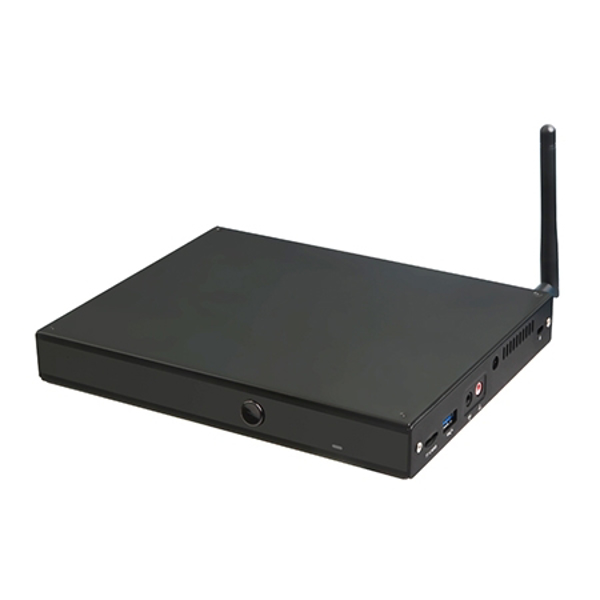

F200

Intel Celeron N2807, HDMI, mSATA, TF Card Reader, SIM

Featured Highlights
	Intel® Celeron N2807
	Intel® Kaby Lake Platform (SOC)
	Intel® HD Graphics , HDMI
	2GB Onboard DDR3L-1333MHz for up to 2GB Memory
	2 x MiniPCIe slots
	1 Intel® Gigabit LAN
	1 x USB 3.0, 2 x USB 2.0
	1 x mSATA, 1 x TF Card Reader
	5.1 ALC662 Audio Sound
	Power Supply: DC12V input
	OS Support: Windows 7/8.1/10(64-bit), Linux

SKU: F200

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron N2807 1.58 GHz (Up to 2.16 GHz ) Chipset • Intel® Kaby Lake Platform (SOC)
Graphics • Intel® HD Graphics • DirectX 11.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0 • 1 x HDMI® (Max. 1920 x 1080@60Hz) Memory • 2GB Onboard DDR3L-1333MHz • Supports up to 2GB
Network • 1x Realtek RTL8111F Gigabit Ethernet Expansion Slot • 1 x Full-size Mini-PCIe for mSATA • 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
Storage • 1 x Full-size mSATA • 1 x TF Card reader Audio • Realtek® ALC662 6-channel (5.1)
I/O • 1 x USB 3.0, 2 x USB 2.0 • 1 x HDMI® • 1 x RJ45 • 1 x MIC-IN, 1 x AUDIO-OUT • 1 x Full-size Mini-PCIe for mSATA • 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G • 1 x SIM Slot • 1 x HDD LED, 1 x Power LED Chassis • Dimensions (W × D × H):116.6mm x 107.2mm x 30mm • Construction:Metal • Color:Black
Power Supply • DC-IN 12V OS Support • Windows 7/8.1/10(64-bit), Linux
Application • Digital Signage, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
