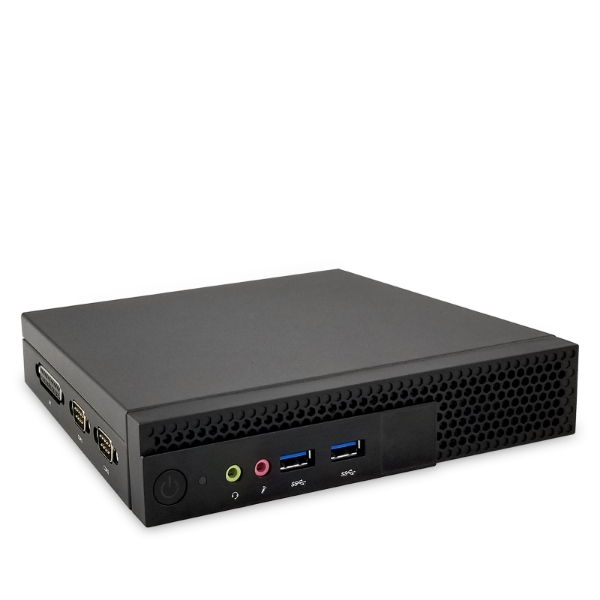

Picture of H410A

Picture of H410A

Picture of H410A

Picture of H410A

Picture of H410A

H310AEL2 - Embedded Digital Signage | POS/Kiosk

H410A

10th Gen. Socket-S, 2 Display HDMI+DP/VGA, 3 M.2+2 COM, DC12-19V Wide Power Range

Featured Highlights
	Intel® 10th Gen. Socket-S LGA1200 Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor
	Intel® H410 Express Chipset
	Intel® UHD 630 Graphics, 4K Resolution, HDMI + DP/VGA
	2 DDR4 SO-DIMM for up to 64GB Memory
	M.2 NVMe/SATA + M.2 WiFi, Optional M.2 4G-LTE
	Gigabit LAN
	4 USB 3.0, 4 USB 2.0
	5.1 ALC662 Audio Sound
	DC19V or DC12V Wide Range Power Input
	OS Support: Windows 10/11, IoT, Linux
	Applications: POS/Kiosk, Digital Signage, A/V Player, AI Edge, Set Top Box, etc.

SKU: H410A

Specifications
Request for Info

Product specifications

Processor • Intel® 10th Generation Comet Lake processor • LGA1200 Socket-S series with 35W, 65W TDP • Intel® Core™ i9-10900, 10900T 10C/20T 20M • Intel® Core™ i7-10700, 10700T 8C/16T 16M • Intel® Core™ i5-10600, 10500, 10400T 6C/12T 12M • Intel® Core™ i3-10105, 10105T, 10100, 10100T 4C/8T 6M • Intel® Pentium® Gold G6605, G6600, G6405, G6405T, G6400T 2C/4T 4M • Intel® Celeron® G5905, G5905T 2C/2T 4M • Intel® Celeron® G5900, G5900T 2C/2T 2M Chipset • Intel® H410 Express Chipset
Graphics • Intel® UHD 630 4K Resolution Graphics (based on CPU) • Support 2 Graphics ports • 1 x DP 4K 60Hz Graphics port (can be replaced with VGA port) • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 Memory • 2 x DDR4 SO-DIMM • 2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB (practical for 64GB limited by 2 x 32GB modules)
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: 1 x M.2 2242 (for 4G-LTE Module Pair with SIM Card) • Option: Additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • Option: 1 x M.2 2242 (for 4G-LTE Module Pair with SIM Card)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • Optional SATA port for 2.5" SATA SSD/HD Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x DP/VGA port • 1 x HDMI® port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 3.0 ports (Front) • 2 x 3.5mm Audio jacks (Front) • 2 x RS232 Serial COM port (Side) • 1 x Parallel port (Side)
System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Watchdog supported Systemboard • Small Form Factor • Back I/O
Chassis • 140E Mini Chassis (Sheet Metal) • Dimensions: 7"(W) x 7"(D) x 1.4"(H) / Weight: 2.9 lb (Net) 6.5 lb (Gross). • VESA, wall mount bracket supported • Option: 236F3 Fanless Chassis Power Supply • Power: DC19V or DC12V Wide Range Power Input Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10/11, IoT, Linux Application • SoHo PC, Thin Client, POS/Kiosk, Digital Signage, A/V Player, AI Edge, Set Top Box, etc. • Embedded-Longevity
Environment • Operating Temperature: 0 to +40 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
