Processor
• Intel® Core™ i5-6200u 2.30/2.80GHz 2Core 4Threads 3M 15W • Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u
Chipset
• Intel® Skylake Platform (SOC)
|
Graphics
• Intel® HD 520 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI port
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM) • 1 x SIM socket for 3G/4G-LTE option • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM)
|
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers
|
Back Panel I/O
• 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x HDMI® port • 1 x DVI port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 2 x USB 3.0 headers • 2 x USB 2.0 headers • 2 x Serial COM headers • 1 x S/PDIF header
|
System BIOS
• Watchdog supported
|

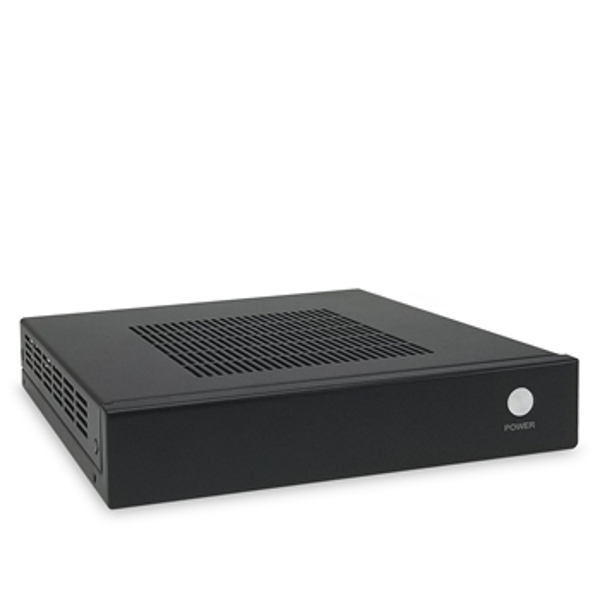

Chassis
• 10A Series Fanless Aluminum Chassis • Dimensions: 7.50"(W) x 7.50"(D) x 1.40"(H) • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 2.5 lb. (Net) and 4.5 lb. (gross with packaging) • Color: Black as default color, custom colors available with special order • Optional: 100F Fanless 1.4" Slim • Optional: 138D 7.00"(W) x 7.20"(D) x 1.38"(H)
Power Supply
• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux • Windows 7 is not supported by Kaby Lake and Coffee Lake processor but Skylake only
Application
• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, etc.
|
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
