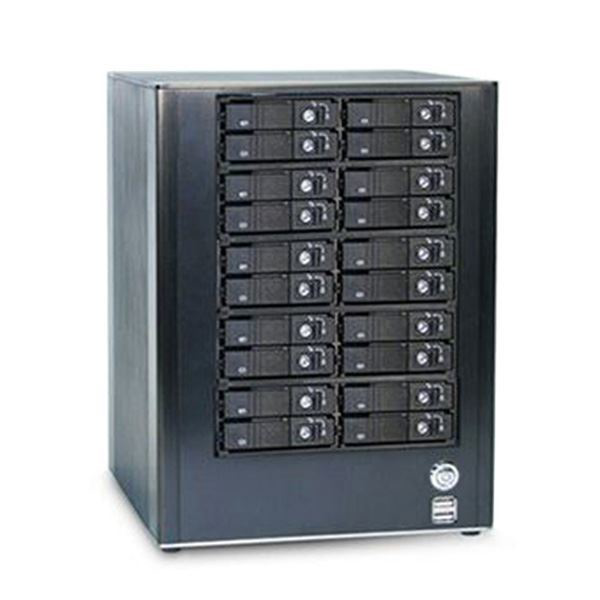

MiniStor 800N20

20 x 2.5 hot swap RAID-5/6 NAS/iSCSI Small and quiet, Energy Saving High Performance System, Affordable Price

Featured Highlights
•	Data file sharing among Wnidows, Linux OS, and Macintosh users, with user name, passowrd protection,
	and managed access in local workgroups.
•	The backup and recovery application provides system backup, remote boot and recovery for Windows clients.
•	Can act as a Dynamic Host Configuration Protocol (DHCP) server.
•	Can act as a DHCP client for easy network configuration
•	Can be used as linear storage or set up as RAID 0, 1, 5, 6, 10, 50.
•	User-Friendly Web interface for setting up users and access rights.
•	Built-in FTP server provides convenient high-speed file transfers.

MiniStor 800N is an intelligent network storage solution for small office, medium office, and home network environments, costing less than Windows file servers.

SKU: MiniStor 800N20

Specifications
Request for Info

Product specifications

Processor • Intel®2.4GHz 4-Core Memory • DDR3 4GB
Flash • 32GB with NAS and OS (Optional for MS HomeServer, MS Storage) LAN • 2x Gigabit LAN port
Network Service • DHCP client/server (default is DHCP client/Static) • Network Protocol: CIFS/SMB, NFS, FTP • iSCSI (optional), can be configured as mix with NAS and iSCSI Storage/RAID • 20x 2.5" SATA-II/SATA-6G/s Hot-Swap Drive 1TB or 2TB Harddrive • RAID 5, 6, 10, 1 and 0 with Hot Spare supported
USB • 4x USB 2.0 connectors Dimensions • 205(W) x 286(H) x 205(D)mm • 8.1(W) x 11.25(H) x 8.1(D)inch
Weight • 8kg (17.6 lb) System Power • 270W DC Power
Software • Operating System: Linux/FreeBSD, (Optional Microsoft Home Server) • Backup and Recovery Client Support: Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac Operating Temperature • From 5ºC to 45ºC (35ºF to 95ºF)
Non-Operating Temperature • From -40ºC to 70ºC (-40ºF to 158ºF) Non-Operating Humidity • Up to 90% non-condensing humidity at 35°C (95ºF), • CE/FCC
Management Interface • Web GUI • E-mail notification • Rsync supported Remote Boot Function • Requires NIC with PXE support on client
File Sharing • Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder) Access Control • Allows users to access shared files for "Read Only" or "Read/Write"

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel®2.4GHz 4-Core Memory • DDR3 4GB
Flash • 32GB with NAS and OS (Optional for MS HomeServer, MS Storage) LAN • 2x Gigabit LAN port
Network Service • DHCP client/server (default is DHCP client/Static) • Network Protocol: CIFS/SMB, NFS, FTP • iSCSI (optional), can be configured as mix with NAS and iSCSI Storage/RAID • 20x 2.5" SATA-II/SATA-6G/s Hot-Swap Drive 1TB or 2TB Harddrive • RAID 5, 6, 10, 1 and 0 with Hot Spare supported
USB • 4x USB 2.0 connectors Dimensions • 205(W) x 286(H) x 205(D)mm • 8.1(W) x 11.25(H) x 8.1(D)inch
Weight • 8kg (17.6 lb) System Power • 270W DC Power
Software • Operating System: Linux/FreeBSD, (Optional Microsoft Home Server) • Backup and Recovery Client Support: Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac Operating Temperature • From 5ºC to 45ºC (35ºF to 95ºF)
Non-Operating Temperature • From -40ºC to 70ºC (-40ºF to 158ºF) Non-Operating Humidity • Up to 90% non-condensing humidity at 35°C (95ºF), • CE/FCC
Management Interface • Web GUI • E-mail notification • Rsync supported Remote Boot Function • Requires NIC with PXE support on client
File Sharing • Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder) Access Control • Allows users to access shared files for "Read Only" or "Read/Write"
