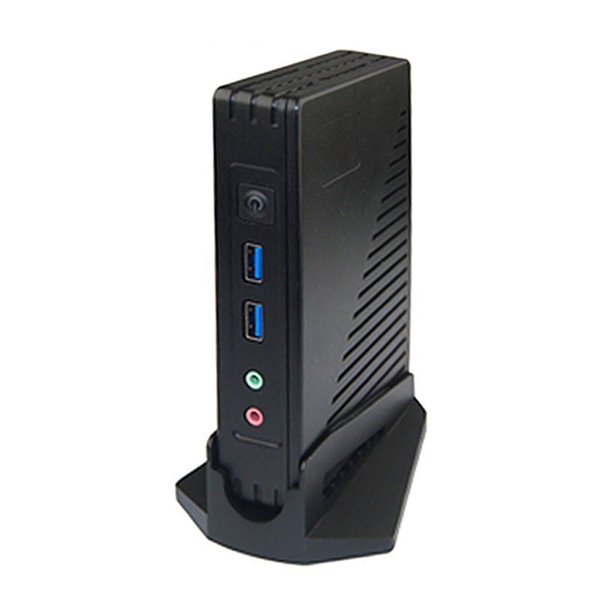

Picture of N3160ZV3

Picture of N3160ZV3

Picture of N3160ZV3

Picture of N3160ZV3

Picture of N3160ZV3

Picture of N3160ZV3

Picture of N3160ZV3

Sorry - this product is no longer available

N3160ZV3

Braswell N3160 Processor, HD Graphics 2 HDMI+DP, COM+SATA+mSATA, 6 USB+2 MiniPCIe+SIM

Featured Highlights
	Intel® Celeron® N3160 Processor
	Intel® 8th Generation HD Graphics, 2 HDMI+DP
	DDR3L SO-DIMM for up to 8GB Memory
	SATA-6Gb/s, mSATA-6Gb/s
	2 MiniPCIe
	Gigabit LAN
	4 USB 3.0, 2 USB 2.0
	5.1 ALC662 Audio Sound
	DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.

SKU: N3160ZV3

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® N3160 1.60/2.24GHz 4Core 4Threads 2M 4/6W Chipset • Intel® Braswell Platform (SOC)
Graphics • Intel® 8th Generation HD Graphics • Support 3 Graphics ports • 2 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP Memory • 1 x DDR3L SO-DIMM • 1600/1333MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB (however 2GB is most practical)
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 2 x MiniPCIe full size slots
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s Audio • Realtek® ALC662 6-channel (5.1)
Back Panel I/O • 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x RJ45 Serial COM port • 2 x HDMI® ports • 1 x DP • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 3.0 ports (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Nano - Z series Plastic Enclosure • Dimensions: 6"(W) x 3.7"(D) x 1"(H) weight: 7lbs • Color: Black
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Windows 7, Windows 8, Windows 10, IoT, Linux
Application • Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc. Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
