Processor
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
|
Graphics
• Intel® HD 500 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x VGA port • 1 x LVDS header
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
|
Network
• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x1 slot • 1 x MiniPCIe full size slot • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
|
Storage
• 2 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Audio
• Realtek® ALC887 8-channel (7.1) • 2 x 3.5mm Analog Stereo Audio jacks
|
Back Panel I/O
• 4 x USB 3.0 ports • 6 x Serial COM ports (2 RS485, 4 RS232) • 1 x HDMI® port • 1 x VGA port • 2 x LAN ports • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 4 x USB 2.0 headers • 1 x Parallel port header
|
Function
• 1 x 4in/4out GPIO header
System BIOS
• AMI® UEFI 64MBit BIOS
|

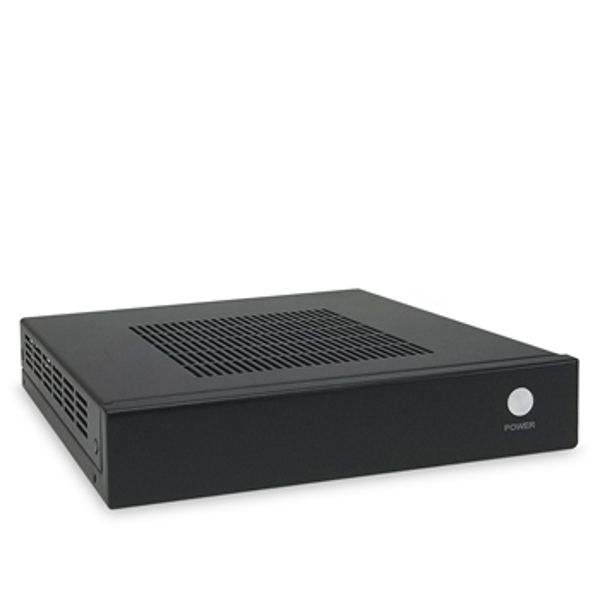

Chassis
• 300R Series Fanless Aluminum Chassis • Dimensions:300 Case: 8.1"(D) x 8.1"(W) x 2.2"(H) • Drive Bay: One 2.5" HD/Solid State Drive Bay • Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot • Optional: Slim 10a Series 1.4" Slim • Optional: 138D 7"x7"x1.38H
|
Power Supply
• Power: DC12V or DC19-24V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
|
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
