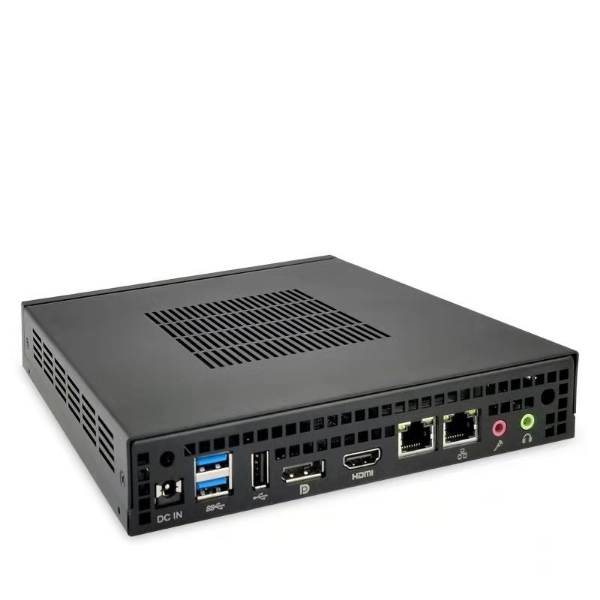

Picture of N7000AE/AEL2

Picture of N7000AE/AEL2

Picture of N7000AE/AEL2

Picture of N7000AE/AEL2

Picture of N7000AE/AEL2

Picture of N7000AE/AEL2

N7000AE/AEL2

12th Gen Alder Lake-N UHD Graphics, DP+HDMI, 2 LAN+ 4USB, M.2 SSD

Featured Highlights
	Intel® N-Series Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, DP+HDMI
	1 DDR4, up to 32GB Memory
	M.2 2280 NVMe/SATA SSD + 2.5" SATA
	1 or 2 LAN, M.2 WiFi/BT + 5G/4G-LTE w/sim slot
	Up to 7 USB Ports, Dual RS232/RS485 COM ports
	Realtek® HD
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, Linux
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: N7000AE/AEL2

Specifications
Request for Info

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Option: • Intel® N95 1.70/3.40GHz 4Core 4Threads 6M 15W • Intel® N97 3.40GHz 4Cores 6M 12W • Intel® N50 3.40GHz 2Cores 6M 6W • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® i3-N305 3.80GHz 8Cores 8Threads 6M 9W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 1 x HDMI® 2.0 supporting a maximum resolution of 4K @60Hz • 1 x DP supporting a maximum resolution of 4K @60Hz Memory • 1 x DDR4 SO-DIMM • 2933/2666MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 1x Realtek® 8111H Gigabit (10/100/1000 Mb/s) LAN • Optional 2nd LAN Intel® i226 2.5 Gigabit (10/100/1000/2500 Mb/s) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042/3052 (for 5G/4G-LTE modem w/sim slot) • 1 x M.2 2280 (for NVME/SATA-6Gb/s SSD) • 1 x PCIe 3.0 x1 slot
Storage • 1 x M.2 2280 (for SATA-6Gb/s SSD) Audio • Realtek® ALC897 HD Audio • 1 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 1 or 2 x LAN ports (share with 2 USB ports) • 1 x DP port • 1 x HDMI® port • 2 x USB 3.2 Gen 2 ports • 1 x USB 2.0 port • 1 x DC-In Power Connecter Internal I/O • 2 x RS232/RS485 Serial COM header • 1 x LVDS/eDP • 4 x USB 2.0 header
System BIOS • AMI® BIOS Function • TPM 2.0 • 1 x 8bit GPIO
Chassis • Slim Enclosure • Dimensions: 7"(W) x 7.2"(D) x 1.7"(H), weight: 1 lbs., Gross: 5 lb. • Color: Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V/19VPower Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, Linux Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.
Environment • Operating Temperature: -10 to 60 C (Please contact product specialist for details) • Non operating temperature: -40 to 85 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 85% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance
