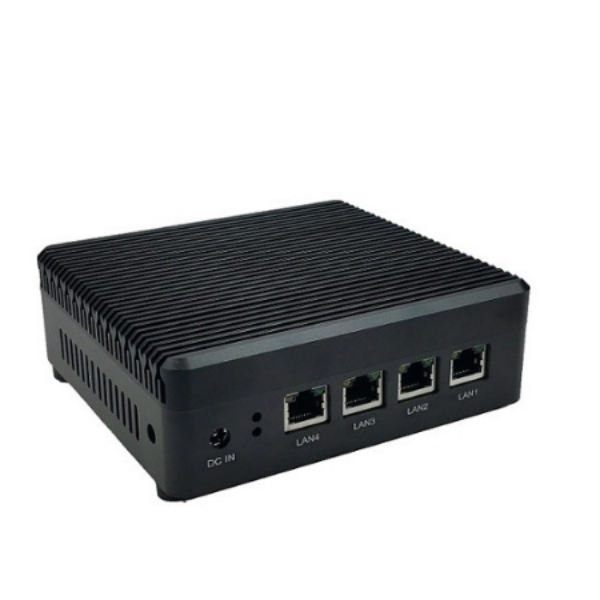

Picture of Nano-J4125L4

Picture of Nano-J4125L4

Picture of Nano-J4125L4

Picture of Nano-J4125L4

Nano-J4125L4

7th Gen Gemini Lake, HD Graphics HDMI®+VGA, 4 LAN+2USB, Onboard SIM slot w/ 4G Support

Featured Highlights
	Intel® Celeron/Pentium Processor
	Intel® Gemini Lake Platform (SOC)
	Intel® HD Graphics, HDMI + VGA
	2 DDR4-SODIMM, up to 16GB Memory
	1 mSATA PCIe SSD
	4 Gigabit LAN
	2 USB 3.0
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
	Applications: High Speed Router, Firewall, VPN, Network Security, etc

SKU: Nano-J4125L4

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W • Option: • Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W • Intel® Pentium® Silver N5000 1.10/2.7GHz 4Core 4Threads 4M 6W • Intel® Celeron® N2940 1.83/2.25GHz 4Cores 4Threads 2M 7.5W • Intel® Pentium® N3700 1.60/2.40GHz 4Cores 4Threads 2M 6W Chipset • Intel® Gemini Lake Platform (SOC)
Graphics • Integrated Intel® HD 600 Graphics • 1 x HDMI® port • 1 x VGA port Memory • 2 x DDR4 SO-DIMM • 2666/2400MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 16GB
Network • 4 x Intel® i211 Gigabit (10/100/1000 Mb/s) LAN • Optiona: 4 x Intel® i226v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Support for 3G/4G Module pair w/ SIM option • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe+SIM slot for 4G-LTE
Storage • 1 x mSATA SSD • 1 x Optional SATA port for 2.5" SATA HD/SSD Back Panel I/O • 4 x LAN ports • Optional RJ45 Serial Console Port • 1 x DC-In Power Connecter
Other I/O • 2 x USB 3.0 ports (Front) • 1 x HDMI port® (Front) • 1 x VGA port (Front) System BIOS • AMI® BIOS
Chassis • Nano Size Fan-less Enclosure • Dimensions: 5.27"(W) x 5"(D) x 1.41"(H), Weight: 2.2 lbs., Gross: 5 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Vyos, Rocky 9, Linux, Windows 10/11 Pro/IoT Application • High Speed Router, Firewall, VPN, Network Security, etc.
Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -30 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU is available
