Nano-N3450L2/J3455L2

Apollo Lake Processor, HD 500 Graphics 2 HDMI+VGA, 2 LAN+SIM+2 COM, 32GB eMMC+mSATA

Featured Highlights
	Intel® Celeron® Processor
	Intel® Apollo Lake Platform (SOC)
	Intel® HD 500 Graphics, 4K Resolution, 2 HDMI+VGA
	DDR3L SO-DIMM for up to 8GB Memory
	SATA-6Gb/s, mSATA-6Gb/s, 32GB eMMC
	MiniPCIe
	2 Gigabit LAN, SIM
	4 USB 3.0, 2 USB 2.0
	5.1 ALC662 Audio Sound
	DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10, IoT, Linux
	Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.

SKU: Nano-N3450L2/J3455L2

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W • Intel® Celeron® J3455 1.50/2.30GHz 4Core 4Threads 2M 10W Chipset • Intel® Apollo Lake Platform (SOC)
Graphics • Intel® HD 500 Graphics, 4K Resolution • Support 3 Graphics ports • 2 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x VGA port Memory • 1 x DDR3L SO-DIMM • 1600/1333MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB
Network • 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s • 32GB eMMC Flash Internal Storage Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks

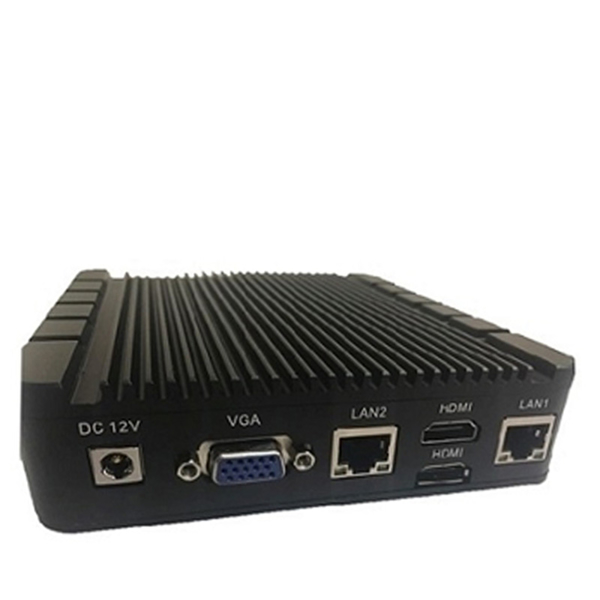

Back Panel I/O • 2 x HDMI® ports • 1 x VGA port • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 4 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 2 x Serial COM ports (Front) • 2 x 3.5mm Audio jacks (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Nano-LX series Fanless Enclosure • Dimensions: 5.43"(W) x 5.0"(D) x 1"(H) weight: 5lbs • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets • Option: Nano-2/H/HD 5.49"(W) x 4.96"(D) x 1.54"(H) , Nano-F4 5.43"(W) x 4.96"(D) x 1.54"(H)
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Application • Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc. Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W • Intel® Celeron® J3455 1.50/2.30GHz 4Core 4Threads 2M 10W Chipset • Intel® Apollo Lake Platform (SOC)
Graphics • Intel® HD 500 Graphics, 4K Resolution • Support 3 Graphics ports • 2 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x VGA port Memory • 1 x DDR3L SO-DIMM • 1600/1333MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB
Network • 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s • 32GB eMMC Flash Internal Storage Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x HDMI® ports • 1 x VGA port • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 4 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 2 x Serial COM ports (Front) • 2 x 3.5mm Audio jacks (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Nano-LX series Fanless Enclosure • Dimensions: 5.43"(W) x 5.0"(D) x 1"(H) weight: 5lbs • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets • Option: Nano-2/H/HD 5.49"(W) x 4.96"(D) x 1.54"(H) , Nano-F4 5.43"(W) x 4.96"(D) x 1.54"(H)
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Application • Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc. Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
