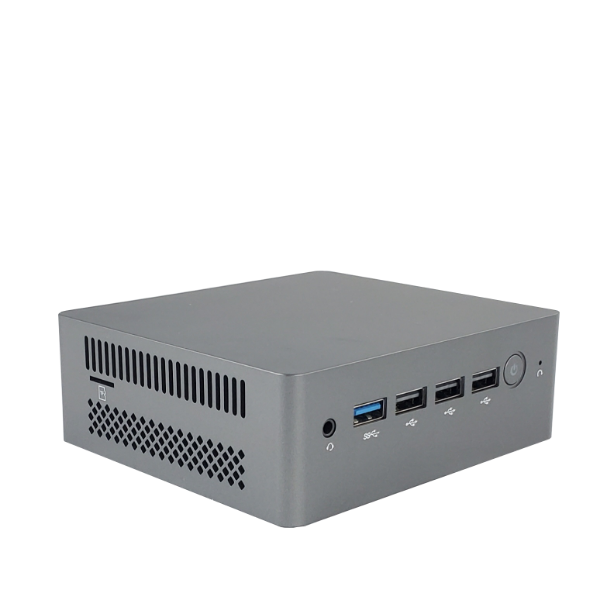

Nano-N7000L2

12th Gen Alder Lake-N UHD Graphics, DP+HDMI+Type-C, 2 LAN+ Dual-Band WiFi, M.2 SSD+TF Card+4USB

Featured Highlights
	Intel® N-Series Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, DP+HDMI+Type-C
	LPDDR5 On-board, up to 8GB Memory
	2.5" SATA HDD slot, TF Card slot, M.2 2280
	2 Gigabit LAN, Dual-Band WiFi6+BT4.2
	USB 3.0, 3 USB 2.0, Type-C
	Realtek® U32R59
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, Linux
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: Nano-N7000L2

Specifications
Request for Info

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Option: • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.2, supporting a maximum resolution of 4K @60Hz • 1 x Type-C, supporting a maximum resolution of 4K @60Hz Memory • 8GB LPDDR5 on-board • 4800MHz unbuffered non-ECC • Option: Up to 16GB (special order, MOQ required)
Network • 2 x Realtek® RTL8111 Gigabit (10/100/1000 Mb/s) LAN • Intel® 7265ac Dual-Band WiFi/BT4.2 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD)
Storage • 1 x SATA HDD slot (SATA 3.0 6Gb/s) • Standard 250GB M.2 2280 SSD • 1 x M.2 2280 (Taken by 250GB SSD) Audio • Realtek® U32R59 Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x LAN ports • 1 x DP 1.2 port • 1 x HDMI® 2.0 port • 1 x Type-C port • 1 x DC-In Power Connecter Other I/O • 1 x USB 3.0 port (Front) • 3 x USB 2.0 ports (Front) • 1 x Audio jack (Front) • 1 x TF/MicroSD Card slot (Side)
System BIOS • AMI® BIOS Chassis • Nano Enclosure • Dimensions: 4.9"(W) x 4.4"(D) x 1.7"(H), weight: 1 lbs., Gross: 5 lb. • Color: Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A 36W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc. Environment • Operating Temperature: 0 to +40 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Option: • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.2, supporting a maximum resolution of 4K @60Hz • 1 x Type-C, supporting a maximum resolution of 4K @60Hz Memory • 8GB LPDDR5 on-board • 4800MHz unbuffered non-ECC • Option: Up to 16GB (special order, MOQ required)
Network • 2 x Realtek® RTL8111 Gigabit (10/100/1000 Mb/s) LAN • Intel® 7265ac Dual-Band WiFi/BT4.2 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD)
Storage • 1 x SATA HDD slot (SATA 3.0 6Gb/s) • Standard 250GB M.2 2280 SSD • 1 x M.2 2280 (Taken by 250GB SSD) Audio • Realtek® U32R59 Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x LAN ports • 1 x DP 1.2 port • 1 x HDMI® 2.0 port • 1 x Type-C port • 1 x DC-In Power Connecter Other I/O • 1 x USB 3.0 port (Front) • 3 x USB 2.0 ports (Front) • 1 x Audio jack (Front) • 1 x TF/MicroSD Card slot (Side)
System BIOS • AMI® BIOS Chassis • Nano Enclosure • Dimensions: 4.9"(W) x 4.4"(D) x 1.7"(H), weight: 1 lbs., Gross: 5 lb. • Color: Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A 36W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc. Environment • Operating Temperature: 0 to +40 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
