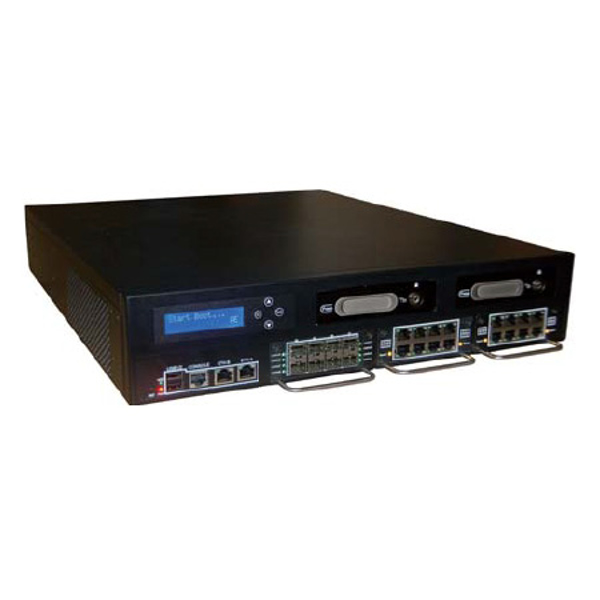

NIS-201

Intel E-2100/E-2200 series Xeon or Core i8 / i9 Processor C246 Chipset, Up to 128GB DDR4 2 Channel Memory with ECC option

Featured Highlights
	Intel E-2100/E-2200 series Xeon or Core i8 / i9 Processor C246 Chipset
	Up to 128GB DDR4 2 Channel Memory with ECC option
	Base Network Module: 2 x Intel Gigabit RJ45 Port (Intel 82574L) 2 x by-pass ports
	Optional Network Module: (up to three modules selection)
	8 x Intel Gigabit RJ45 Port (Intel I350AM4/82580EB), 2 x by pass ports
	8 x Intel Gigabit SFP Port (Intel I350AM4/82580EB)
	4 x Intel Gigabit SFP Port (Intel 82580EB)
	4 x USB 2.0 (2 front ports, 2 from Header)
	4 x Intel Gigabit RJ45 Port (Intel 82580EB), 2 x by pass ports
	4 x Intel 10Gigabit SFP Port (Intel 82599ES)
	2 x Intel 10Gigabit SFP Port (Intel 82599ES)
	1 x PCIe 8x expansion slot
	3 x Network Module expansion port (PCIe 8x)
	3 x Network Module expansion port (PCIe 8x)
	3 x SATA, 1 x CF and 1 x IDE Connectors
	4 x USB 2.0 (2 front ports, 2 from Header)
	2 x RS-232 Serial Port (1 x RJ45 and 1 Header)
	1 x 4-in / 4-out GPIO Header
	1 x VGA port on back panel
	2U Chassis 21.6" depth rackmount
	SKU# 201-01:3 Network Modular Slot, 2 x Hot swap hard Drive bay, 1 LCD Control Module
	SKU# 201-02:3 Network Modular Slot, 3 x Hot swap hard Drive bay
	300W 100V-240V AC Power Supply

SKU: NIS-201

Product specifications

Environment • Operating Temperature: 0 to +55 °C • Non operating temperature: -20 to +70 °C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating 3,920 m/s2 (400G) 2ms • Shock - Non-Operating 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • FCC, CE, UL, RoHS

Your name *

Your email *

Inquiry *

Product specifications

Environment • Operating Temperature: 0 to +55 °C • Non operating temperature: -20 to +70 °C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating 3,920 m/s2 (400G) 2ms • Shock - Non-Operating 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • FCC, CE, UL, RoHS
