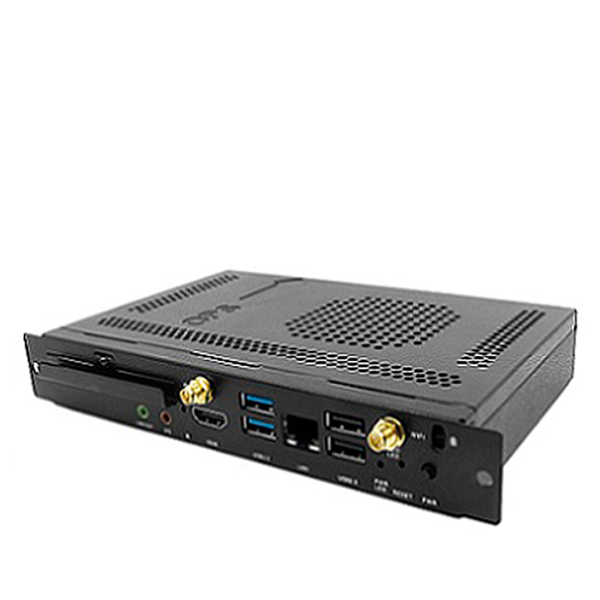

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

Picture of OPS-7000-S044

OPS-7000-S044

7th/8th Gen. Core™-u i7/i5/i3, Dual 4K Display OPS+HDMI, M.2 SSD+Supports vPro®, M.2-WiFi+BT

Featured Highlights
	Intel® Core™ i7/i5/i3/Celeron®-u Processor
	Intel® Kaby Lake-u Platform (SOC)
	Intel® 7th Generation HD Graphics Support up to 4K Resolution, HDMI+JAE OPS
	2 DDR4 SO-DIMM for up to 32GB Memory
	Intel® Gigabit LAN, M.2 WiFi
	2 USB 3.0, 2 USB 2.0
	2.5" SATA-6Gb/s, M.2 SSD
	5.1 ALC662 Audio Sound
	Power Supply: DC12-19V Input
	OS Support: Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, etc.

SKU: OPS-7000J

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-7500u 2.70/3.50GHz 2Core 2Threads 4M 7.5-15W • Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 15-25W • Intel® Core™ i3-7100u 0.80/2.40GHz 2Core 4Threads 3M 15W • Intel® Celeron® 3865u 1.8GHz 4Core 4Threads 2M 10-15W • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u Chipset • Intel® Kaby Lake-u Platform (SOC) • Optional Support for Intel® vPro®
Graphics • Intel® 7th Generation HD Graphics support up to 4K Resolution • Support 2 Graphics ports • 1 x Standard JAE-80pin OPS Connector (HDMI® signal) • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 32GB
Network • 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2242 (for SATA-6Gb/s only)
Storage • 1 x 2.5" HDD/SSD SATA 6Gb/s • 1 x M.2 2242 (for SATA-6Gb/s only) Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 1 x JAE-80pin OPS Connector Other I/O • RS232 Serial Signal via JAE-80pin OPS Connector • 2 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 1 x HDMI® port (Front) • 1 x LAN port (Front) • 2 x 3.5mm Audio jacks (Front)
Function • 1 x TPM header System BIOS • AMI® UEFI BIOS
Chassis • OPS Form Factor Chassis: 1.18"(H) x 7.9"(W) x 4.7"(D) • 2.5" Hot Swap SATA drive bay • System Weight: 1.5 lb. Power Supply • Power Obtained from OPS Screen through JAE-80pin OPS connector • Optional Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10, IoT, Linux Application • Set Top Box, Digital Signage, etc. • Embedded-Longevity
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
