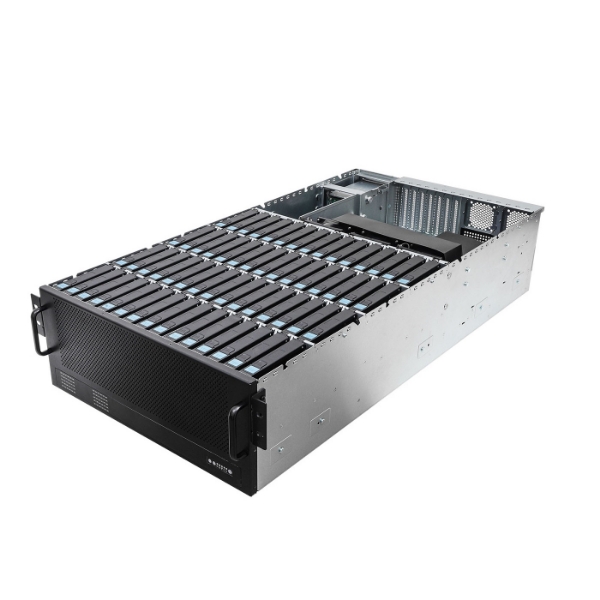

PolyStor 4U60S

4U 60 Hot-Swap HD, up to 600TB Quad LAN, RAID 5, 6, 10, 50, 60

Featured Highlights
•	Dimensions: 17.1(w)x33.5(D)x6.9(H) inch
	AMD EPYC™ 9005*/9004 and 97x4 Series Processors
	60 Hot-swap 3.5" SATA/SAS Top Loaded drive bays,8 Optional Hot-swap 2.5" U.2 NVMe Rear drive bays
	Intel^® X550-AT2 2 RJ45 10Gbe LAN, 1 dedicated IPMI
	8 DIMM slots(1DPC), Supports DDR5 288-pin RDIMM, RDIMM-3DS
	Hardware RAID Acceleration Controller
	Power Supply: 2+2 CRPS power supply (4 x 800W 80-Plus Platinum modules) 100-240V 60/50Hz UR/FCC/CE Certified
	OS Support: Windows Server 2019(64bit), 2022(64bit), RedHat Linux, ,UBuntu,SUSE, VMWare,,CITRIX
•	Application: Data Centers, Enterprise Archiving, or Cloud Storage.

SKU: PolyStor 4U60S

Specifications
Request for Info

Product specifications

Processor • Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors Memory* • 8 DIMM slots (1DPC) • Supports DDR5 288-pin RDIMM, RDIMM-3DS • RDIMM: 96GB (2R),RDIMM-3DS: 512GB (2S8Rx4)
Graphics • ASPEED AST2600 • DDR4 512MB OS and Storage Manager • Microsoft^® Windows:- Server 2019 (64bit)- Server 2022 (64 bit), Linux OS and NAS/iSCSI WEB based Manager • Optional: Solaris, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System • XFS, EXT3 standard • Optional: ZFS, NTFS, or any file system supported by the x86 platform Network I/O • Intel® X550-AT2: 2 RJ45 (10GbE). Optional 2 or 4 additional 10/25/100/100GbE by Card • 1 dedicated IPMI
Network Service • DHCP client/server (default is DHCP client/static) • Network Protocol: CIFS/SMB, NFS, FTP • iSCSI / NAS / SAN (Can be mixed) Management Interface • Web GUI • E-mail notification • Local Host Access via VGA and Keyboard
Expansion Slot • 4 FHHL PCIe5.0 x16 slots Remote Boot Function • Requires NIC with PXE support on client
File Sharing • Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder) Access Control • Allows users to access shared files for "Read Only" or "Read/Write"

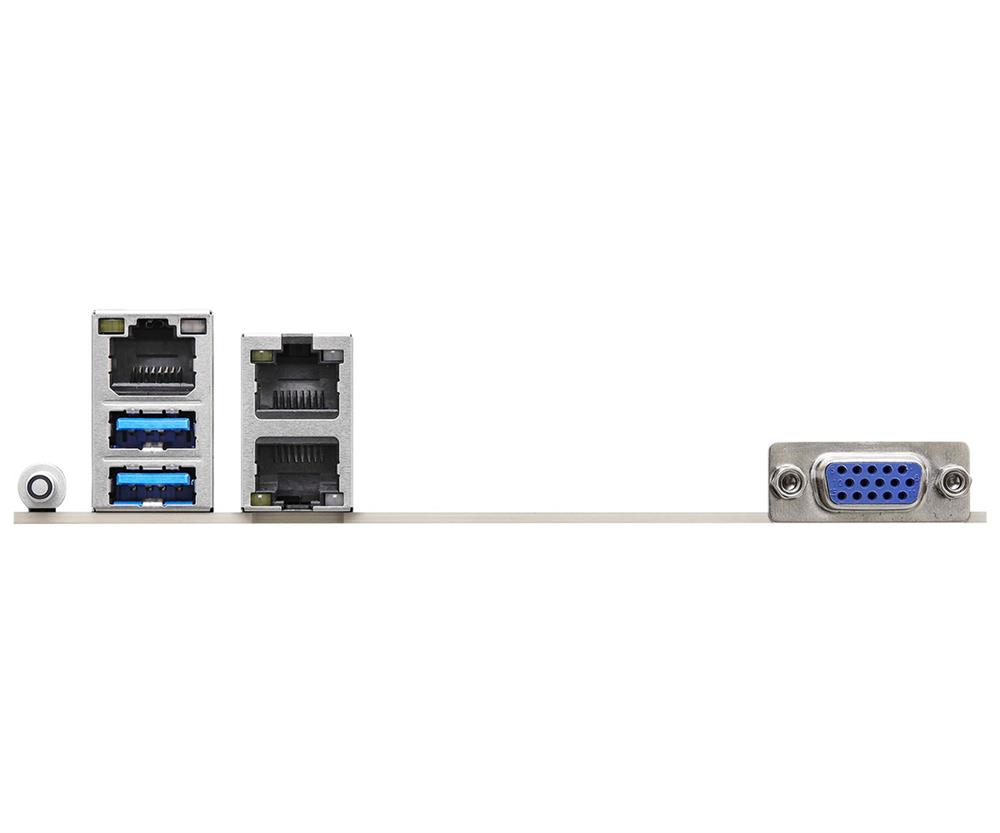

Storage/RAID • 60 Hot-swap 3.5" SATA/SAS Top Loaded drive bays, 8 Optional Hot-swap 2.5" U.2 NVMe Rear drive bays • 2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor • 8 Hot-swap 2.5'' NVMe (PCIe5.0 x4) drive bays* Supports TA@30C Additional RAID/HBA card required to support the 60 x 3.5" SATA/SAS drives • 8-ports NVMe passive backplane • 2 x 30-port 12G SAS backplanes with 40-PHY expander I/O • 2x Type-A(USB 3.2 Gen1) rear connectors • VGA graphics • 2 x SATA-6G/s, 4 SATA-3G/s SATA port, optional SAS ports supported • Optional: 2 additional I/O (such as COM, PS/2, TPM) supported by header or add-on
Client Support • MS Windows®11,10,8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac • Snap Shot Backup and Recovery Client Support • Active Directory, Rsync are supported Remote Controls • Power on/off, system reset + USB • IPMI, KVM over IP, Remote Power On/Off is supported

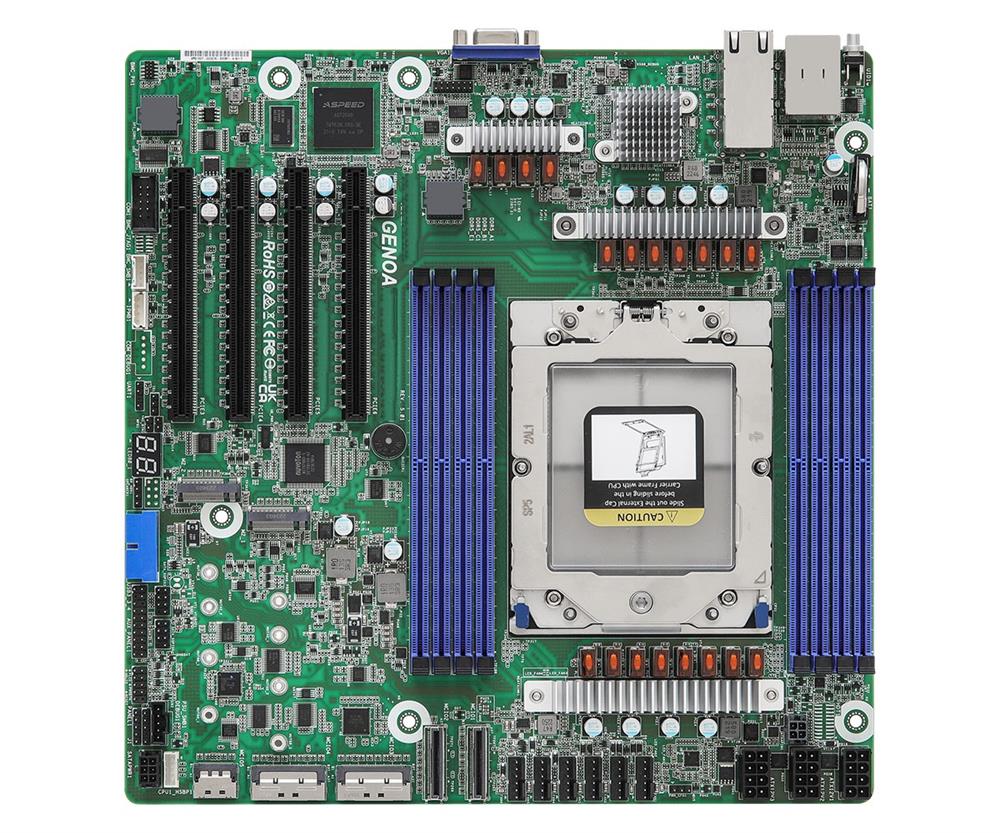

Systemboard • Small Form Factor • Back I/O Indicators • Power, LAN and HDD LEDs
Cooling • Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB Power Supply • 2+2 CRPS power supply (4 x 800W 80-Plus Platinum modules) 100-240V 60/50Hz UR/FCC/CE Certified
Operating Temperature • From 0 °C to 40 °C (32°F to 104 °F) Non-Operating Temperature • From 0 °C to 40 °C (32°F to 104 °F)
Operating Humidity • From 10% to 90% relative humidity EMI Safety • CE/FCC
Dimensions • 4U Rackmount Chassis • Dimensions: 17.1" W x 7" H x 33.5" D • Weight: 200 lb. Warranty • SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year • Base system:3 year standard parts and depot labor;lifetime toll free phone support. • Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service. • Optional:7+year extended warranty service available. • On-site service is available with additional cost.
