ServerStation W790G4

4 RTX-6000 ada or 2 RTX4090 GPU, 4th Gen. Xeon-W, 8-ch. DDR 5.0, 4 x PCIe 5.0 x16 Slots

Featured Highlights
	Supports Intel® Xeon® W2500/W2400 and W3500/W3400 Processors
	Intel® W790 Chipset, Sapphire Rapids Family
	8 x 8-Channel DDR 5.0 Memory for up to 2TB ECC memory
	4 PCIe 5.0 x16 + 3 PCIe 5.0 x8 Slots for 4 Dual-Slot or 3 Triple-Slot GPU Cards
	Optional VGA AST2500 BMC
	2 M.2-2280 NVMe PCIe 4.0 x4 Slots for OS RAID
	2 x 2.5G Intel® Ethernet, AST2500 BMC IPMI 2.0 with dedicated LAN
	4U/Tower Chassis with 2 x 3.5” + 1 x 2.5” SATA drive bays
	2 x 1200W/1600W/2000W Redundant Platinum/Titanium PSU
	OS Support: Windows, Linux, FreeBSD
	Applications: GPU Computing for AI

SKU: ServerStation W790G4

Specifications
Request for Info

Product specifications

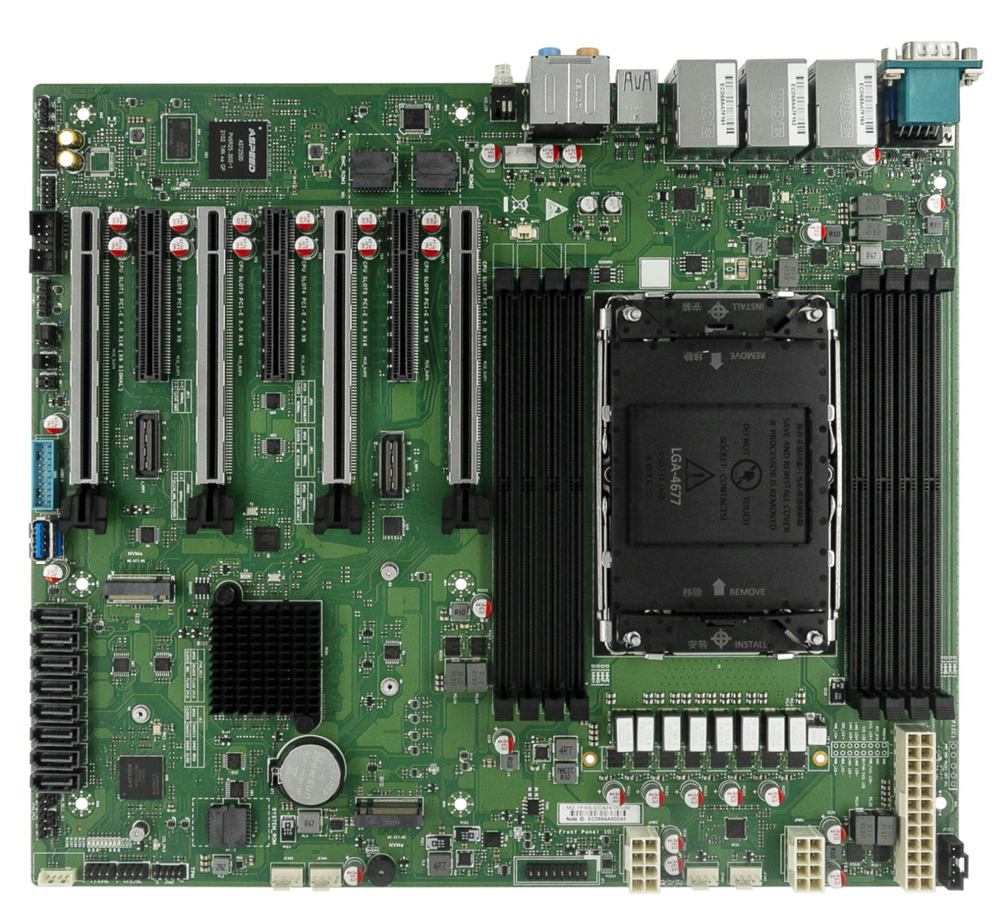

Processor • 4th Generation Intel® Xeon® LGA-4677 Socket-E • Intel® Xeon® w9/w7/w5-3500,3400 112L w7/w5-2500,2400 64L • Up to 56 Cores / 112 Threads 105MB Smart Cache Chipset • Intel® W790 Chipset for Sapphire Rapids
Memory • 8 x DDR5 RDIMM Slots • 4800MHz ECC (W3400 112L 8 Channel, W2400 64L 4 Channel) • W3400 112L up to 2TB, W2400 64L up to 1TB Graphics • Up to 4 NVIDIA® Dual-Slot (RTX 6000 ada, A100, A800, H800) or 2 Triple-Slot (RTX-4090) GPU Cards via 4 PCIe 5.0 x16 Slots • Optional VGA with AST2500 BMC
Storage • 8 x SATA 6Gb/s Supports RAID-0, 1, 5, 10 • 2 x M.2-2280 Sockets (PCIe 4.0 x4 NVMe) SSD Network • 2 x Intel® I226 2.5Gigabit Ethernet • Option: additional LAN can be added by PCIe adapters
Expansion Slot • 3 x PCI Express 5.0 x16 slot (x16 Signal) • 1 x PCI Express 5.0 x16 slot (x8 Signal) • 3 x PCI Express 5.0 x8 slot (x8 Signal) • 2 x M.2-2280 Sockets (PCIe 4.0 x4 NVMe) Audio • Realtek® ALC897 Audio Codec (7.1) • 6 x 3.5mm Analog Stereo Audio jacks

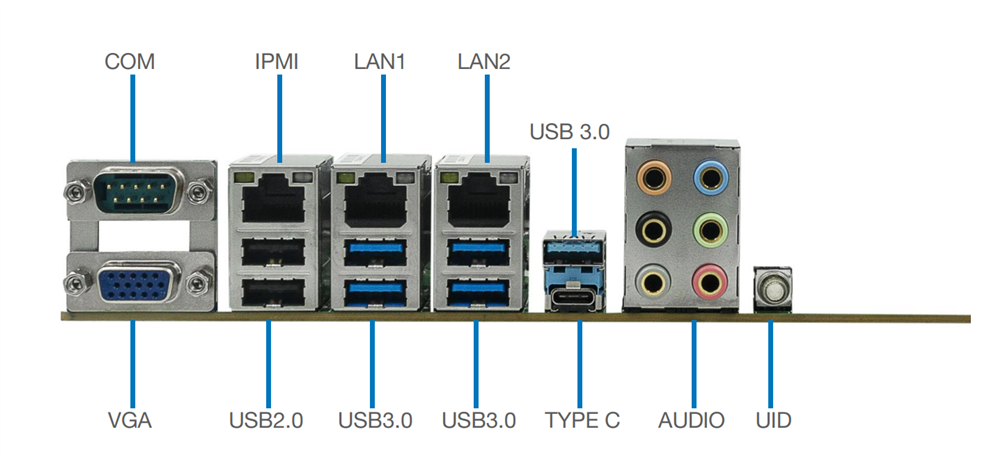

Back Panel I/O • 5 x USB 3.2 Gen2 Ports • 2 x USB 2.0, 1 x USB 3.2 Type-C • 1 x VGA port • 2 x RJ-45 LAN ports, 1 x RJ45 IPMI port • 1 x RS232 DB9 COM port • 6 x 3.5mm Audio jacks Internal I/O • 1 x USB 3.0 Header (for 2 ports) • 1 x USB 2.0 Header (for 2 ports) • 1 x USB 3.0 Type-A • 1 x SMBus, 1 x TPM Connector • 1 x Intrusion Header, 1 x Front Audio Header • 1 x RS232 COM Header, 5 x 4pin Fan connectors • 1 x 24pin ATX-in, 2 x 8pin Power Connectors

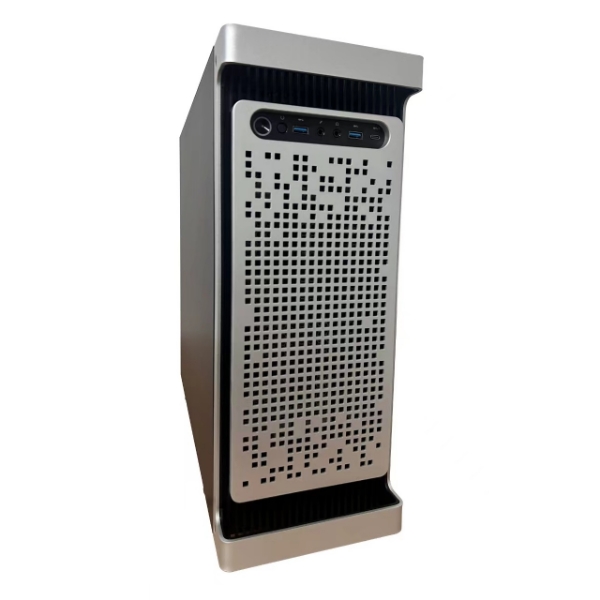

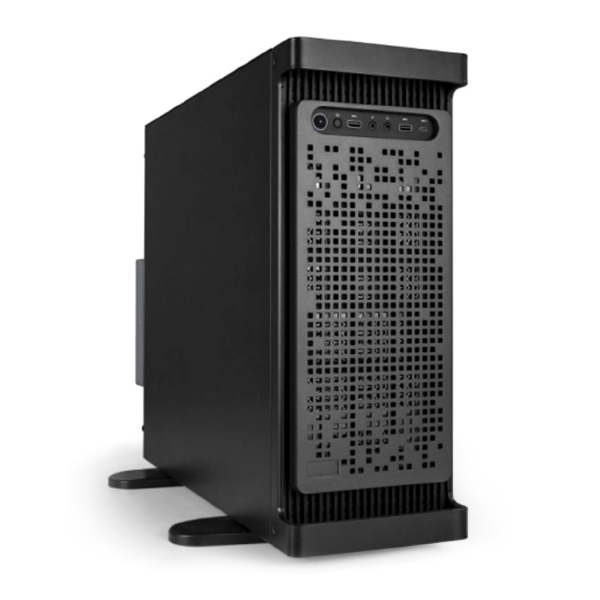

Systemboard • ATX • IO Chassis • Tower / 4U Rackmount Metal Enclosure • Dimensions: (Tower) 17.12"(H)x6.87"(W)x 19.68"(D) • (4U) 17.12”(W) x 6.87”(H) x 19.68”(D) • Weight: 41 lb. (Net), 58 lb. (with packaging) • Drive Bay: 2 x 3.5”, 1 x 2.5 • Front: 1 x UID, 1 x Reset, 1 x Power Switch/LED
BIOS • AMI UEFI OS Support • Windows 10/11 Pro, Windows Server, Linux, FreeBSD
Power • Dual CRPS Redundant 1200W/1600W/2000W Platinum/Titanium • 90V-240VAC Input Application • GPU Computing for AI, Workstations
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
