Processor
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M Cache 6W
Chipset
• Intel® Apollo Lake Platform (SOC)
|
Graphics
• Intel® 9th Generation HD 500 Graphics 4K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics Port
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
Expansion Slot
• 1 x M.2 socket (configured with 11ac WiFi + Bluetooth module)
|
Storage
• 1 x mSATA 6Gb/s
• 32G eMMC Flash internal Storage
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jacks
|
Back Panel I/O
• 2 x USB 2.0 Ports • 1 x HDMI® port • 1 x DP port • 1 x LAN port • 1 x DC IN Jack
Other I/O

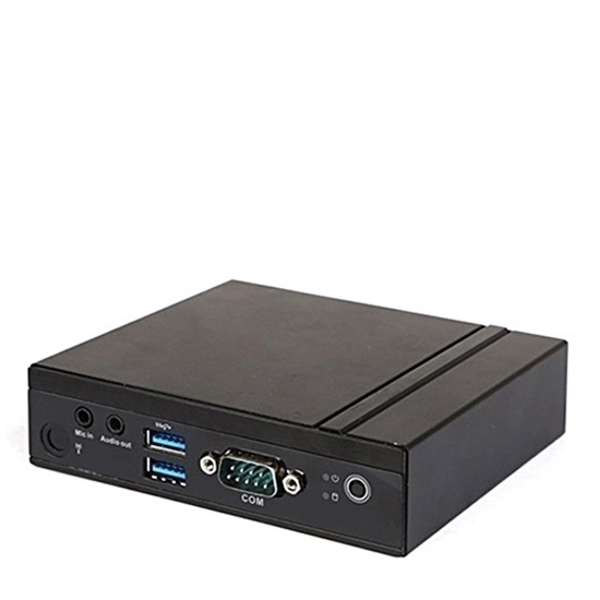

• 2 x USB 3.0 Ports (Front) • 1 x Serial COM port (Front) • 2 x 3.5mm audio jacks (Front)
|
Chassis
• NUC Tiny Chassis
• Dimensions: 1.33(H) x 4.96(W) x 4.33(D) inch(Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC 19V 2A Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 10 64-bit, Linux, IOT
Application
• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, Media Player/IPTV, AV Player, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, etc.
|
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
