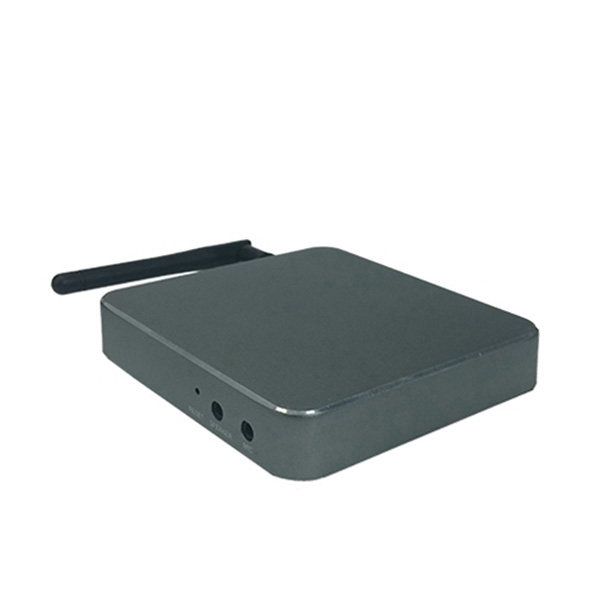

Picture of X10-mini for OnSign TV (X10M-216STV1)

Picture of X10-mini for OnSign TV (X10M-216STV1)

Picture of X10-mini for OnSign TV (X10M-216STV1)

Picture of X10-mini for OnSign TV (X10M-216STV1)

X10-mini for OnSign TV (X10M-216STV1)

2G RAM, 16G Storage, supports 3G/4G-LTE

Featured Highlights
•	ARM® Cortex®-A53 Processor
•	RK3368 Chipset
•	PowerVR G6110 HDMI 2.0 4K 60Hz
•	1G/2GB SO-DIMM DDR3 Memory
•	1 RJ45 LAN, WiFi + BT
•	2 USB 2.0
•	5.1 HDMI Audio Sound
•	Power Supply: DC5V/12V input
•	OS Supports: Android 6.0, Linux
•	Appllication: MedIa Player/IPTV, etc.

SKU: X10M-216STV1

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A53 8Core up to 1.20GHz Chipset • RK3368
Graphics • PowerVR G6110 • HDMI® 2.0 4K 30Hz Graphics Port • Supports H.264,H.265, MP4. HTML5 4K Video Hardware Decoding Memory • 2G SO-DIMM DDR3 (Option: 1G with MOQ required)
Network • 1 x RJ45 10/100Mb/s LAN • 802.11n/g Wi-Fi + Bluetooth (AP6212) • Option: Gigabit LAN, 11ac WiFi (MOQ required) Expansion Slot • 1 x Full Size MiniPCIe and Mini SIM Card slot for 3G/4G-LTE Module
Storage • 16GB eMMC Flash internal Storage (Option: 8G, 32G for custom order) • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card Audio • 5.1 HD audio subsystem via HDMI® 1.4 interface • 2 x 3.5mm Speaker-out and Mic-in Jacks
I/O • 2 x USB 2.0 Ports • 1x HDMI® 2.0 ports • 1 x LAN port • 1 x TF (MicroSD) • 1 x DC-in 2.5mm • 1 x MicroUSB OTG port (Side) Chassis • NUC-X Chassis • Dimensions: 4.10"(W) x 4.10"(D) x 0.99"(H), Weight: 1.5 lb. (Net) 3 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V (Option: 5V) Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Android 6.0, Linux
Application • Media Player/IPTV, Digital Signage, Set top Box, Gaming, Audio Player, Network Security, IoT etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
