X55L4

QuadCore ARM® Cortex®-A55, HDMI® 2.0 4K Mali-G52, Dual 2.5GbE LAN + Dual Gigabit LAN, 16GB eMMC+SD reader

Featured Highlights
	ARM® Cortex®-A55 Processor
	RK3568 Chipset
	Mali™-G52 GPU, HDMI® 2.0
	2GB/4GB Onboard DDR4 Memory
	16GB/32GB eMMC Storage
	2 2.5GbE LAN + 2 Gigabit LAN, SIM card
	2 USB/OTG, Type-C, SD slot
	HD Audio Sound
	Power Supply: DC12V 3A 40W Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux/OpenWrt
	Applications: High Speed Router, Firewall, VPN, Network Security, etc

SKU: X55L4

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A55 4Core 64-bit Chipset • Rockchip RK3568 (SOC)
Graphics • Mali™-G52 Graphics • 1 x HDMI® 2.0 port, supports a max. resolution of 4K at 60Hz Memory • 2GB/4GB LPDDR4 Onboard (non-changeable)
Network • 2 x 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 2 x Gigabit (10/100/1000 Mb/s) LAN • 1 x MiniPCIe Full Size slot (for WiFi/BT Module or 4G Module pair w/ SIM) • Wake on LAN Storage • 16GB/32GB eMMC Flash Internal Storage • 1 x SD reader, supports 128GB

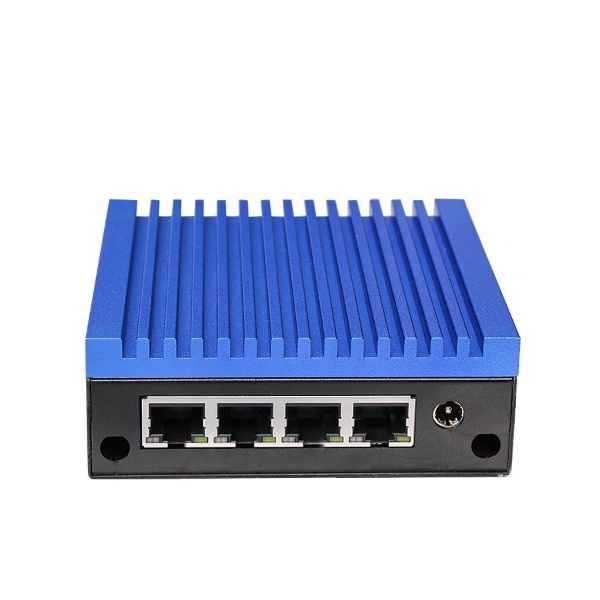

Back Panel I/O • 4 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x Type-C port (Front) • 1 x USB 3.0 port (Front) • 1 x USB 2.0 port (Front) • 1 x HDMI® 2.0 port (Front) • 1 x SIM card slot (Front) • 1 x SD card reader (Front) • 1 x RJ45 Serial Console port (Front)
System BIOS • AMI® BIOS • Watchdog supported Chassis • Fanless Aluminum Nano Size Chassis • Dimensions: 3.9"(W) x 3.9"(D) x 1.3"(H), Weight: 1.1 lb (Net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Linux/OpenWrt
Application • High Speed Router, Firewall, VPN, Network Security, etc Environment • Operating Temperature: 0 to +40 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 0% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A55 4Core 64-bit Chipset • Rockchip RK3568 (SOC)
Graphics • Mali™-G52 Graphics • 1 x HDMI® 2.0 port, supports a max. resolution of 4K at 60Hz Memory • 2GB/4GB LPDDR4 Onboard (non-changeable)
Network • 2 x 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 2 x Gigabit (10/100/1000 Mb/s) LAN • 1 x MiniPCIe Full Size slot (for WiFi/BT Module or 4G Module pair w/ SIM) • Wake on LAN Storage • 16GB/32GB eMMC Flash Internal Storage • 1 x SD reader, supports 128GB
Back Panel I/O • 4 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x Type-C port (Front) • 1 x USB 3.0 port (Front) • 1 x USB 2.0 port (Front) • 1 x HDMI® 2.0 port (Front) • 1 x SIM card slot (Front) • 1 x SD card reader (Front) • 1 x RJ45 Serial Console port (Front)
System BIOS • AMI® BIOS • Watchdog supported Chassis • Fanless Aluminum Nano Size Chassis • Dimensions: 3.9"(W) x 3.9"(D) x 1.3"(H), Weight: 1.1 lb (Net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Linux/OpenWrt
Application • High Speed Router, Firewall, VPN, Network Security, etc Environment • Operating Temperature: 0 to +40 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 0% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
