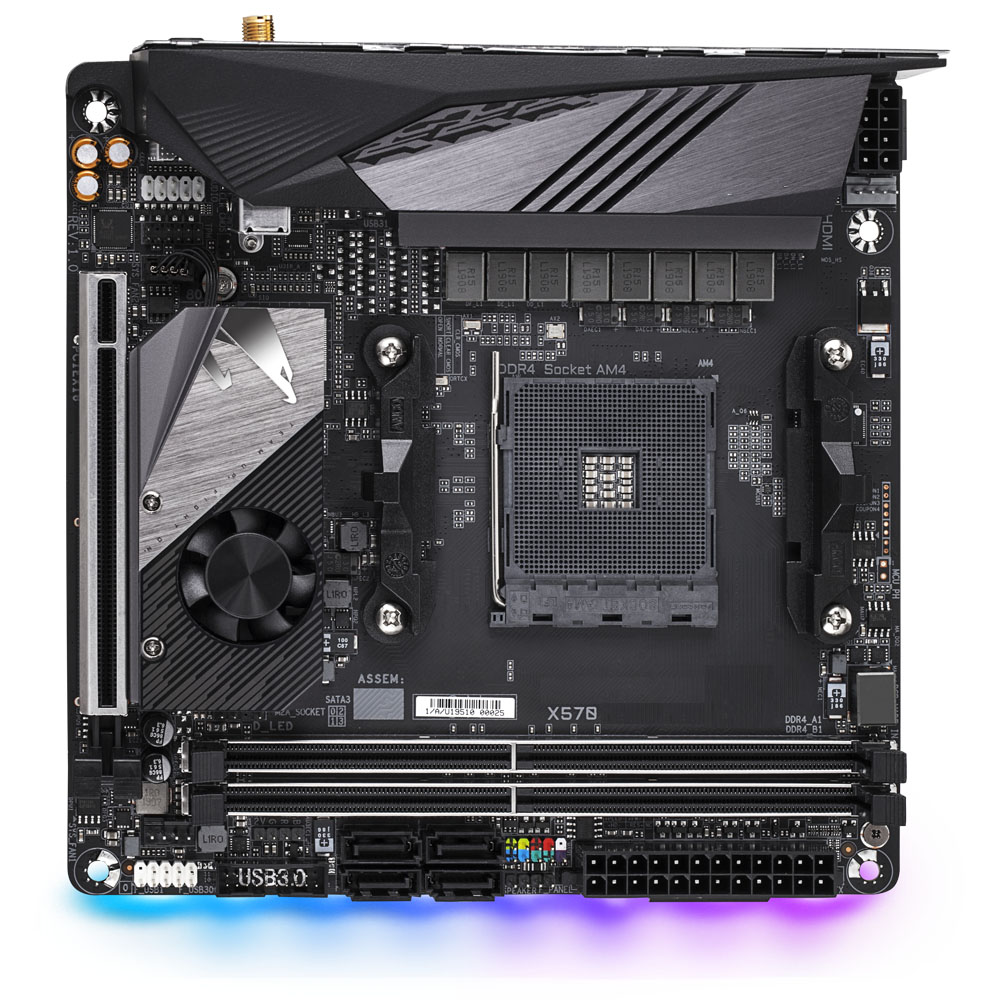

Picture of X570E

Picture of X570E

Picture of X570E

X570E

Ryzen™ Vega 2HDMI, DP, PCIe 4.0 x16, 11ax WiFi, 2xM.2

Featured Highlights
	AMD Ryzen™ 3rd Gen. processor Socket AM4
	AMD X570 Chipset
	AMD Radeon™ Vega FGX Graphics, DP1.4+2 HDMI 2.1
	2 x DDR4 DIMM for up to 64GB Memory
	4 x SATA-6Gb/s -RAID, 2 x M.2 NVMe 4.0
	PCIe 4.0 16x Slot
	Gigabit LAN + M.2-WiFi
	6 USB 3.0, 2 USB 2.0,1 Type-C,1 Type-A
	7.1 ALC1220 Audio Sound
	DC12V 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
	Optional 90V-240V 220W or higher wattage AC Power Supply
	OS Support: Windows 10, IoT, Linux
	Applications: Computing PC, Gaming, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, etc.

SKU: X570E

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • AMD Ryzen™ processor 3rd Generation Socket AM4 • AMD Ryzen™-9 3950X 16C/32T 3.5/4.7G 73M CPU 105W • AMD Ryzen™-9 3900XT 12C/24T 3.8/4.7G 70M CPU 105W • AMD Ryzen™-9 3900X 12C/24T 3.8/4.6G 70M CPU 105W • AMD Ryzen™-9 3900 12C/24T 3.1/4.3G 70M CPU 65W • AMD Ryzen™-7 3800XT 8C/16T 3.9/4.7G 36M CPU 105W • AMD Ryzen™-7 3800X 8C/16T 3.9/4.5G 36M CPU 105W • AMD Ryzen™-7 3700X 8C/16T 3.6/4.4G 36M CPU 65W • AMD Ryzen™-5 3600XT 6C/12T 3.8/4.5G 35M CPU 95W • AMD Ryzen™-5 3600X 6C/12T 3.8/4.4G 35M CPU 95W • AMD Ryzen™-5 3600 6C/12T 3.6/4.2G 35M CPU 65W • AMD Ryzen™-3 3300X 4C/8T 3.8/4.3G 18M CPU 65W • AMD Ryzen™-3 3100 4C/8T 3.6/3.9G 18M CPU 65W • AMD Ryzen™-7 4700G 8C/16T 3.6/4.4G 8C-GPU 65W • AMD Ryzen™-7 4700GE 8C/16T 3.1/4.3G 8C-GPU 35W • AMD Ryzen™-5 4600G 6C/12T 3.7/4.2G 7C-GPU 65W • AMD Ryzen™-5 4600GE 6C/12T 3.3/4.2G 7C-GPU 35W • AMD Ryzen™-3 4300G 4C/8T 3.8/4.0G 6C-GPU 65W • AMD Ryzen™-3 4300GE 4C/8T 3.5/4.0G 6C-GPU 35W • AMD Athlon™ Gold 3150G 4C/4T 3.5/3.9G 3C-GPU 65W • AMD Athlon™ Gold 3150GE 4C/4T 3.3/3.8G 3C-GPU 35W • AMD Athlon™ Silver 3050GE 2C/4T 3.4G 3C-GPU 35W Chipset • AMD® X570 Chipset
Graphics • AMD Radeon™ Vega FGX Graphics • Supports Triple Display • 1 x DP-1.4 5K 120Hz Graphics Port • 2 x HDMI® -2.1 4K 60Hz Graphics Port • Optional by adding PCIe 4.0 Graphics Card (Require case with Slot) Memory • 2 x DDR4 DIMM • 3600(OC)/3200(OC)/2667/2400MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Intel® i211AT Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 4.0 16x slot (Backward compatible to 3.0) • 1 x M.2 2230 socket (for WiFi+BT or Other Module)
Storage • 4 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10 • 2 x M.2 Socket(type 2280 for SATA-6GB/s or PCIe 4.0/3.0 4x NVMe) Audio • Realtek® ALC1220 8-channel (7.1) • 3 x 3.5mm analog stereo audio jack

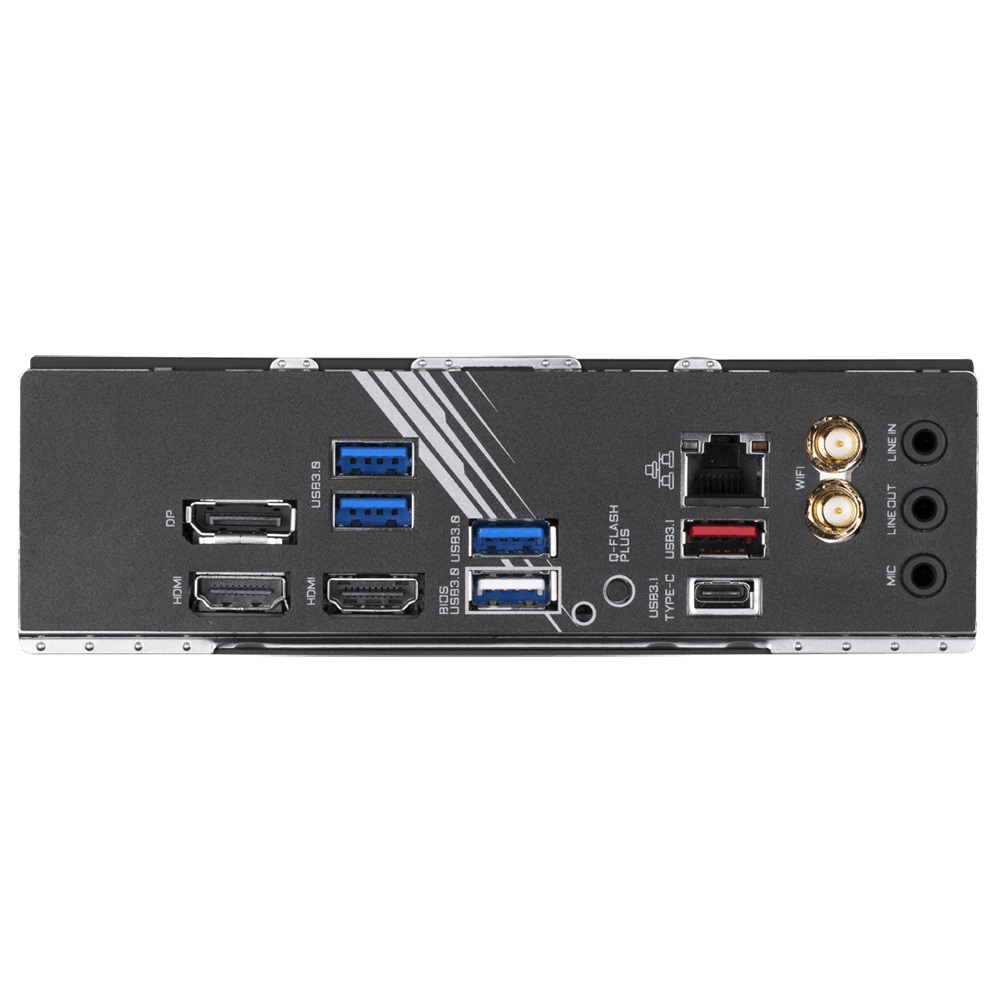

Back Panel I/O • 4 x USB 3.2 Gen.1 Type-A Ports • 1 x USB 3.2 Gen.1 Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 1 x DP-1.4 port • 2 x HDMI® -2.1 ports • 1 x RJ45 LAN port • 3 x 3.5mm Audio jack Internal I/O • 1 x USB 3.2 2-port Header • 1 x USB 2.0 2-port Header • 1 x Serial COM Header
System BIOS • AMI® UEFI 128MBit / Legacy BIOS Systemboard • Small Form Factor • Back I/O
Chassis • 400B Small Form Factor Aluminum Chassis • Dimensions: 8.10"(W) x 8.10"(D) x 2.60"(H). Weight: 1.6 lb. (Net) 4 lb. (gross with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket • Option: 300B Aluminum 2.1"(H), 300A w/Slim DVD Bay, 300R with RISER Slot • Option: 500B 3.5"(H) w/LP Slot, 500A DVD Bay +LP Slot, 500D with 5.25" Bay, 500F Dust Filter, 500C LCD Control • Option: 1750C with slot Power Supply • Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10, IoT, Linux Application • Set Top Box, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, etc.
Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
