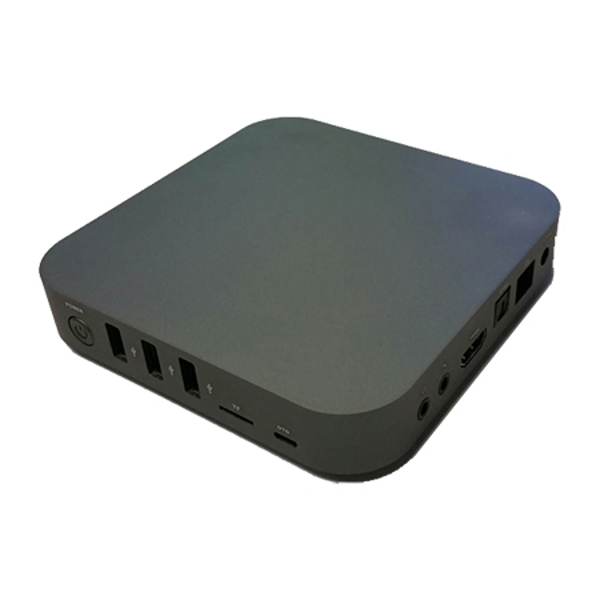

Picture of X9 for Navori (X9-216NAVO1)

Picture of X9 for Navori (X9-216NAVO1)

Picture of X9 for Navori (X9-216NAVO1)

Picture of X9 for Navori (X9-216NAVO1)

X9 for Navori (X9-216NAVO1)

ARM® Cortex®-A17, 1 HDMI2.0

Featured Highlights
	ARM® Cortex®-A17 Processor
	RK3288 Chipset
	Quad-Core Mali™ T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, 1 HDMI2.0
	2GB DDR3 Memory
	11ac WiFi+BT 4.0
	3 USB 2.0
	5.1 HDMI Audio Sound
	Power Supply: DC5V 3A input
	OS Support: Android 4.4, 5.1, Linux
	Applications: Digital Signage, POS/Kiosk, Media Player/IPTV, etc.

SKU: X9-216NAVO1

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A17 4Core up to 2.00GHz Chipset • RK3288
Graphics • Quad-Core Mali™ T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1 • Support 1 Graphics port • 1 x HDMI® 2.0 4K 60Hz Graphics Port Memory • 2G DDR3
Network • 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz) • Bluetooth 4.0 Storage • 16GB eMMC Flash internal Storage • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card
Audio • 5.1 HD audio subsystem via HDMI® 1.4 interface • Support for S/PDIF Out • 1 x 3.5mm analog stereo audio jacks Back Panel I/O • 3 x USB 2.0 Ports • 1 x HDMI® 2.0 port • 1 x S/PDIF port • 1 x 3.5mm audio jacks
Power Supply • Power: DC5V 3A Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Android 4.4, 5.1, Linux
Application • Digital Signage, POS/Kiosk, Media Player/IPTV, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
