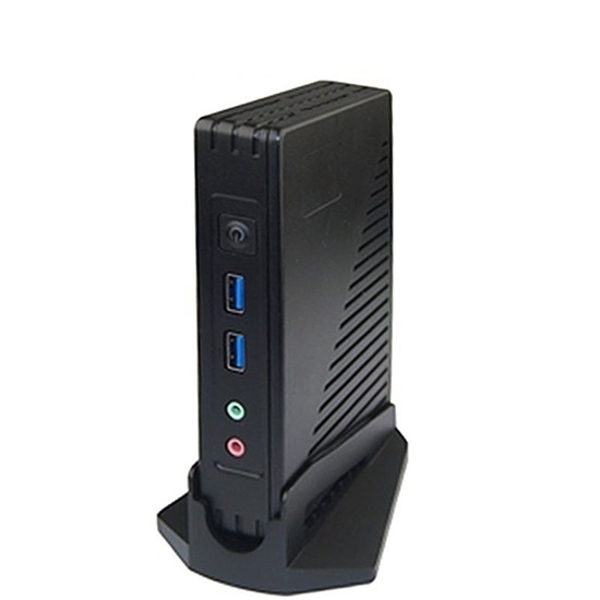

Picture of Z83B/Z83Z

Picture of Z83B/Z83Z

Picture of Z83B/Z83Z

Picture of Z83B/Z83Z

Sorry - this product is no longer available

Z83B/Z83Z

Cherry Trail 4Core, HD Graphics HDMI+VGA, 6 USB+eMMC, MiniPCIe+SIM

Featured Highlights
	Intel® Atom® x5-Z8300 Processor
	Intel® Cherry Trail Platform (SOC)
	Intel® 8th Generation HD Graphics, HDMI+VGA
	2GB/4GB DDR3 Memory
	8GB-32GB eMMC Storage
	MiniPCIe
	Gigabit LAN, 11ac WiFi+BT
	USB 3.0, 5 USB 2.0
	High Quality USB Audio
	DC12V 2A 24W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, etc.

SKU: Nano-Z83B

Specifications
Request for Info

Product specifications

Processor • Intel® Atom® x5-Z8300 1.44/1.84GHz 4Core 4Threads 2M 2W Chipset • Intel® Cherry Trail Platform (SOC)
Graphics • Intel® 8th Generation HD Graphics • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2 • 1 x VGA port Memory • 2GB/4GB DDR3 (built-in, non-changeable) • 1600MHz unbuffered non-ECC (Single Channel I/O)
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0 • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
Storage • 8GB-32GB eMMC Flash Internal Storage • Optional mSATA 6Gb/s SSD Audio • USB Audio Subsystem
Back Panel I/O • 1 x USB 3.0 port • 3 x USB 2.0 ports • 1 x HDMI® port • 1 x VGA port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 2.0 ports (Front)
System BIOS • Watchdog supported Chassis • Nano-Z series Plastic Enclosure • Dimensions: 6.00"(W) x 3.70"(D) x 1.00"(H), Weight: 7 lb. • Color: Black
Power Supply • Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Application • Set Top Box, Digital Signage, Traffic Controller, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Atom® x5-Z8300 1.44/1.84GHz 4Core 4Threads 2M 2W Chipset • Intel® Cherry Trail Platform (SOC)
Graphics • Intel® 8th Generation HD Graphics • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2 • 1 x VGA port Memory • 2GB/4GB DDR3 (built-in, non-changeable) • 1600MHz unbuffered non-ECC (Single Channel I/O)
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0 • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
Storage • 8GB-32GB eMMC Flash Internal Storage • Optional mSATA 6Gb/s SSD Audio • USB Audio Subsystem
Back Panel I/O • 1 x USB 3.0 port • 3 x USB 2.0 ports • 1 x HDMI® port • 1 x VGA port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 2.0 ports (Front)
System BIOS • Watchdog supported Chassis • Nano-Z series Plastic Enclosure • Dimensions: 6.00"(W) x 3.70"(D) x 1.00"(H), Weight: 7 lb. • Color: Black
Power Supply • Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Application • Set Top Box, Digital Signage, Traffic Controller, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
