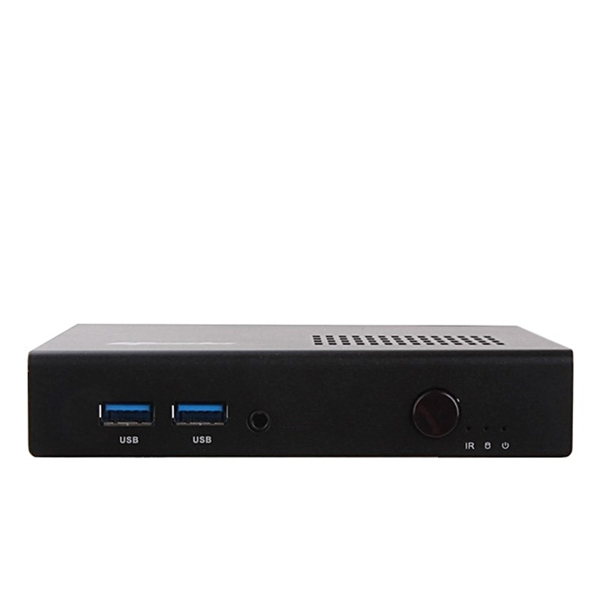

Picture of DK37

Picture of DK37

Picture of DK37

Picture of DK37

DK37

Braswelll HDMI, DP, COM, SATA, mSATA

Featured Highlights
•	Intel® Celeron™ 3865u Processor
•	Intel® Kaby Lake Platform (SOC)
•	Intel® HD 620 Graphics, 4K/5K Resolution, HDR 10Bit color, HDMI+DP
•	1 x DDR4 SO-DIMM for up to 32GB Memory
•	2 x MiniPCIe slots
•	1 Realtek® Gigabit LAN
•	3 USB 3.0
•	1 x SATA, 1 x mSATA
•	5.1 ALC662 Audio Sound
•	Power Supply: DC12V input
•	OS Support: Windows 10 64-bit, Linux, IOT
•	Applications: Set Top Box, Digital Signage, etc.

SKU: DK37

Specifications
Request for Info

Product specifications

Processor • Intel Celeron 3865u 1.80GHz 2Core 2Threads 2M 15W • Optional: Nano-i700-i3 Intel Core i3-7100u 800MHz/2.4GHz 2Core 4Threads 3M 7.5/15W • Optional: Nano-i700-P Intel Pentium 4415u 2.30GHz 2Core 4Threads 2M 15W • Additional Options: 7th Generation Kaby Lake Intel Core i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, • Intel® Celeron® 3865u 1.80GHz 2Core 2Threads 2M 15W • Option: 7th Generation Kaby Lake Intel® Core® i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u Chipset • Intel® Kaby Lake Platform (SOC)
Graphics • Intel® HD 620 Graphics, 4K/5K Resolution, HDR 10Bit color • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics Port Memory • 1 x DDR4 SO-DIMM • 2133MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 32GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Optional WiFi via miniPCIe module • Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module Expansion Slot • 2 x MiniPCIe sockets
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s Audio • Realtek® ALC662 6-channel (5.1)
Back Panel I/O • 3 x USB 3.0 Ports • 1 x Serial COM port • 1 x HDMI® port • 1 x DP port • 1 x LAN port Chassis • NUC Tiny Chassis • Dimensions: 1.33(H) x 4.96(W) x 4.33(D) inch(Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets
Power Supply • Power: DC12V Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10 64-bit, Linux, IOT • Option: Windows 7 (works with Skylake Processor family only)
Application • Set Top Box, Digital Signage, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
