Nano-8000A

8th Gen. Kaby Lake-R, UHD620 4K GPU 2 Display, 2.5" SATA+M.2 NVMe, 4 USB+Type-C

Featured Highlights
	Intel® Core™ i7/i5/i3/Celeron®-u Processor
	Intel® Skylake-u/Kaby Lake-u/Kaby Lake-r Platform (SOC)
	Intel® UHD 620/HD 620/HD 520, 4K Graphics, HDMI+Type-C
	DDR4 SO-DIMM for up to 32GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	Gigabit LAN, M.2 WiFi
	2 USB 3.0, 2 USB 2.0, Type-C
	5.1 HDMI Audio Sound
	DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
	Optional DC12V 2.5mm AC Adapter
	OS Support: Windows 11/10/8, IoT, Linux
	Applications: Set Top Box, Digital Signage, Traffic Controller, Industrial Control/IPC, Medical Equipment, Industrial PC, Embedded PC, Mini PC etc.

SKU: Nano-8000A/7000A

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Processor • Intel® Core™ i3-7100u 0.80/2.40GHz 2Core 4Threads 3M 7.5/15W • Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 7.5/15/25W • Intel® Core™ i7-7500u 2.70/3.50GHz 2Core 4Threads 4M 7.5/15/25W • Intel® Core™ i3-8130u 2.20/3.40GHz 2Core 4Threads 3M 7.5/15W • Intel® Core™ i5-8250u 1.60/3.40GHz 4Core 8Threads 6M 10/15/25W • Intel® Core™ i7-8550u 1.80/4.00GHz 4Core 8Threads 8M 10/15/25W • Intel® Celeron® 3865u 1.80GHz 2Core 2Threads 2M 10/15W • Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u • Option: 8th Generation Kaby Lake-R Intel® Core™ i7-8550u, i5-8250u, i3-8130u Chipset • Intel® Skylake Platform (SOC) • Option: Intel® Kaby Lake-u Platform (SOC) • Option: Intel® Kaby Lake-r Platform (SOC)
Graphics • Intel® UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color • Option: Intel® HD 620 Graphics, 4K Resolution • Option: Intel® HD 520 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x Type-C, 4K 60Hz Graphics port Memory • 1 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • 5.1 HD Audio Subsystem via HDMI® 1.4 Interface • 1 x 3.5mm Analog Stereo Audio jack

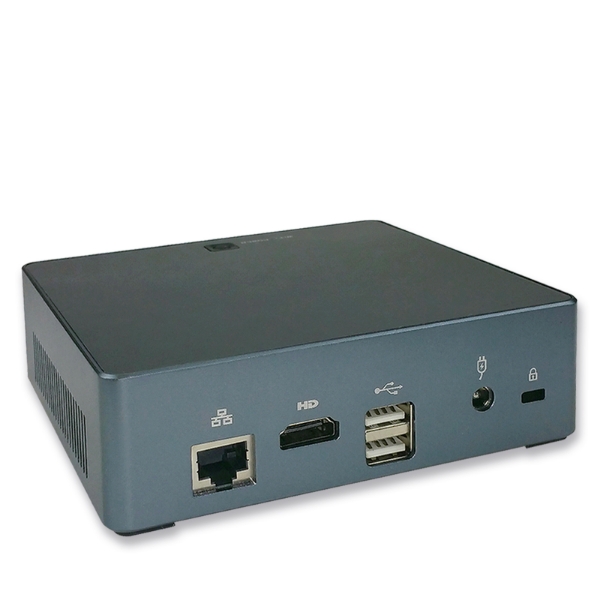

Back Panel I/O • 2 x USB 2.0 ports • 1 x HDMI® port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 3.0 ports (Front) • 1 x Type-C port (for Graphics, Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) (Front) • 1 x 3.5mm Audio jack
System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS) • Watchdog supported Chassis • Nano-A Small Form Factor Enclosure with Copper Heatsink and quiet blower • Dimensions: 5.00"(W) x 4.90"(D) x 1.45"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Drive Bay: M.2 2280 storage socket, 2.5" SATA Bay (cableless SATA+Power plug-in bay) • Color: Dark Grey as default color, custom colors available with special order • VESA, wall mount bracket included • Option: Nano-1 5.49"(W) x 4.96"(D) x 1.54"(H), Nano-2 5.49"(W) x 4.96"(D) x 1.54"(H), Nano-F7S 8.27"(D) x 6.30"(W) x 1.38"(H) , Nano-F8 5.43"(W) x 4.96"(D) x 1.65"(H), Nano-F3 5.50"(W) x 4.96"(D) x 1.54"(H)
Power Supply • Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10/8/7, IoT, Linux • Option: Windows 7 (works with Skylake Processor family only)
Application • Set Top Box, Digital Signage, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc. • Embedded-Longevity Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
