Nano-U12B

12th Gen. Alder Lake, Iris® Xe 8K GPU 4 Display, 2 HDMI 2.0+MiniDP+ThunderBolt, 2 COM+SIM

Featured Highlights
	12^th Gen. Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u/p Processor
	Intel® Alder Lake-u/p Platform (SOC)
	Intel® Iris® Xe/12^th Gen. 8K Graphics, 2 HDMI + MiniDP + ThunderBolt 4.0
	2 DDR4 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	Gigabit LAN, M.2 WiFi + M.2 5G/4G-LTE
	4 USB 3.1, 2 USB 2.0, Thunderbolt 4.0 Type-C, Up to 2 Serial COM ports
	USB HD Audio Sound
	Wide Range DC-Input DC12V to DC19V (UL/CE/FCC Certified)
	OS Support: Windows 11/10, IoT, Linux
	Applications: Digital Signage Player, Network Security, POS/Kiosk, Edge AI (Edge Computing), Deep Learning OpenVino, Entertainment PC, Set Top Box, etc.

SKU: Nano-U12B

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20T 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16T 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16T 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16T 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16T 12M 20/28W • Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12T 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12T 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12T 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12T 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12T 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8T 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6T 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Option: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U • Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U • Intel® Core™ i3-1315U, i3-1305U, i3-1315U Chipset • Intel® Alder Lake-u/p Platform (SOC)
Graphics • Intel® Iris® Xe/12th Gen. UHD Graphics, 4K/5K Resolution • Support 4 Displays • 2 x HDMI® 2.1 4K 60Hz Graphics ports • 1 x MiniDP 4K 60Hz Graphics port • 1 x Thunderbolt 4.0 Type-C port (supports Type-C to HDMI® 2.1/DP 1.4 8K Graphics) Memory • 2 x DDR4 SO-DIMM (Optional DDR5 for special order) • 3200MHz (Optional 4800MHz) unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RT8111H Gigabit (10/100/1000) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2242 (for 5G/4G-LTE Module Pair with SIM Card) • 1 x SIM socket (for 5G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: Additional Gigabit LAN can be added by replacing 2 x USB 3.1 ports Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2242 (for 5G/4G-LTE Module Pair with SIM Card) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • USB HD Audio Sound • 2 x Audio Out/Mic In jacks

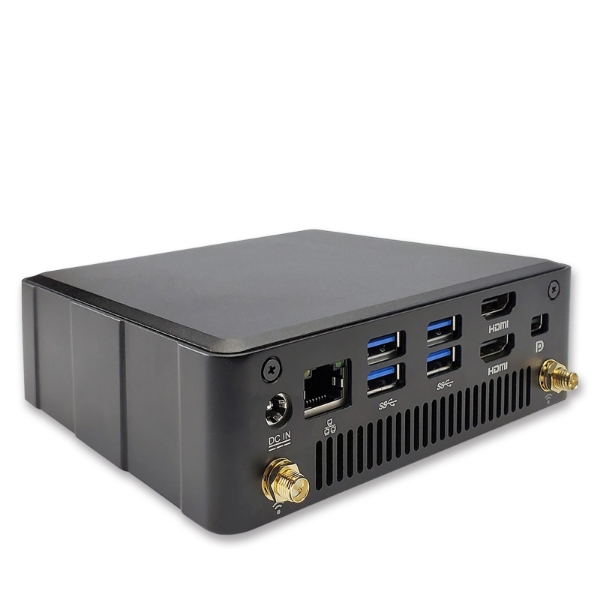

Back Panel I/O • 4 x USB 3.1 ports (Option: 2 x USB 3.1 + 2 x LAN) • 2 x HDMI® 2.1 ports • 1 x MiniDP • 1 x LAN port (Option: 2 x LAN + 2 x USB 3.1) • 1 x DC-In 2.5mm Power Connector Internal I/O • 2 x RS232 Serial COM headers • 1 x SIM slot

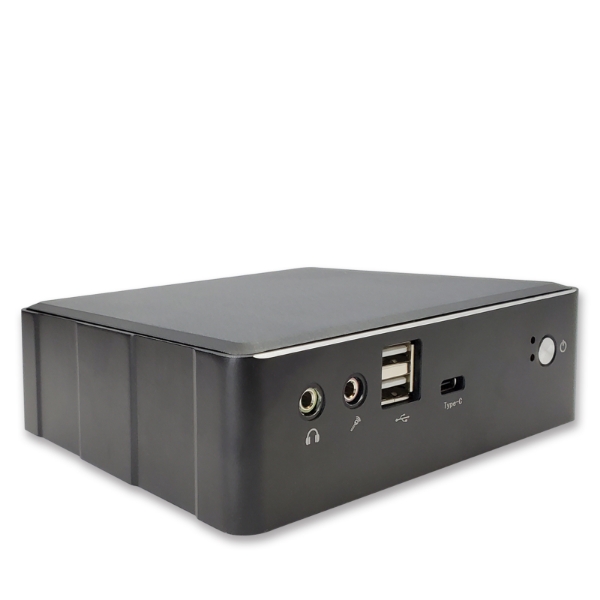

Other I/O • 1 x Thunderbolt 4.0 Type-C port (USB-4 40Gb/s, 8K video, charger out 15W) (Front) • 2 x USB 2.0 ports (Front) • 2 x 3.5mm Audio/Mic jacks (Front) System BIOS • AMI® UEFI 128MBit / Legacy BIOS • Watchdog supported
Chassis • Standard SKU: Nano-12 Chassis 5.44”(W) x 4.97”(D) x 1.73”(H) Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Optional SKU: Nano-F15 Chassis: 7.6"(W) x 4.88"(D) x 2.1"(H) • Optional SKU: Nano-11L Chassis: 8.27”(W) x 4.92”(D) x 1.48”(H) • Optional SKU: Nano-F5 Hybrid Enclosure 5.43”(W) x 4.96”(D) x 1.65”(H) (Hybrid Cooling) • Nano-F10 Fanless Enclosure: Dimensions: 7.87”(W) x 4.92”(D) x 2.24”(H) (Depth dimension changeable), • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, IoT, Linux Application • Digital Signage, Network Security, POS/Kiosk, Edge AI, OpenVino, Entertainment PC, Set Top Box, etc..
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
