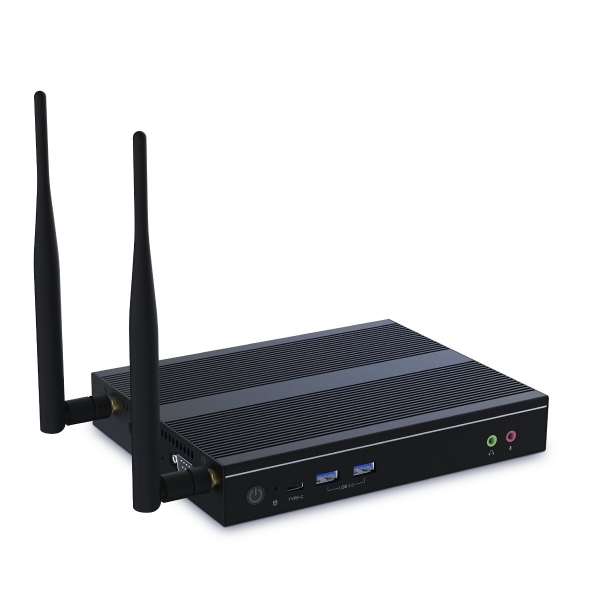

i13U-4HDMI

Slim Booksize i5/i7 with 4 HDMI®, Dual LAN 2 COM, 5USB+Type-C, 3 M.2 for WiFi - 5G/4G-LTE SIM - NVMe

Featured Highlights
	13th Gen. Intel® Core™ i7/i5 u/P-series Processor
	Intel® Raptor Lake-P Platform (SOC)
	Intel® Iris® Xe Graphics, 4 HDMI® 2.0
	2 DDR4, up to 64 GB
	SATA-6Gb/s, M.2 NVMe/SSD
	2 Gigabit LAN, M.2 WiFi/BT + M.2 4G-LTE/5G SIM
	5 USB 3.0, Type-C, 2 COM
	HD Audio
	Power Supply: DC12-19V Input
	OS Support: Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version)
	Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Edge AI (Edge Computing), Traffic Controller, Industrial Control/IPC, Medical Equipment, Deep Learning OpenVino etc.

SKU: i13U-4HDMI

Specifications
Request for Info

Product specifications

Processor • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P 3.70/5.00Ghz 12Cores 16Threads 18M 28/64W • Intel® Core™ i7-1370P 3.50/4.80GHz 14Cores 20Threads 24M 28/64W • Intel® Core™ i7-1365U 3.90/5.20Ghz 10Cores 12Threads 12M 15/55W • Intel® Core™ i7-1335U 3.70/5.00GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i5-1350P 3.50/4.70GHz 12Cores 16Threads 12M 28/64W • Intel® Core™ i5-1340P 3.40/4.60GHz 12Cores 16Threads 12M 28/64W • Intel® Core™ i5-1345U 3.50/4.70GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i5-1335U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i5-1334U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i3-1315U 3.50/4.50GHz 6Cores 8Threads 12M 15/55W • Intel® Core™ i3-1305U 3.30/4.50GHz 5Cores 6Threads 10M 15/55W • Intel® Core™ i3-1315U 3.40/4.60GHz 6Cores 8Threads 10M 15/55W Chipset • Intel® Raptor Lake Platform (SOC)
Graphics • Intel® Iris® Xe Graphics • Support 4 Displays • 4 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 2 x Gigabit LAN (Realtek RTL8111H or Intel® i219) • 2nd LAN Option: Intel® i226 2.Gb/s • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD) Audio • HD Audio • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 3 x USB 3.0 ports • 4 x HDMI® 2.0 ports • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x RS232 Serial COM ports (Side) • 2 x USB 3.0 ports (Front) • 1 x Type-C USB port (Front) • 2 x 3.5mm Audio jacks (Front)
Function • Supports TPM 2.0 System BIOS • AMI® UEFI BIOS • Watchdog supported
Chassis • Slim Booksize Fanless Chassis • Dimensions: 7.48"(W) x 5.83"(D) x 1.57"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Supports Mounting Power Supply • Power: DC12V-19V 2.5A/5.5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version) Application • Set Top Box, Digital Signage Player, POS/Kiosk, IPTV, Edge AI, Traffic Controller, Medical Equipment, etc.
Environment • Operating Temperature: -5 C to +45 C • Non operating temperature: -20 C to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
