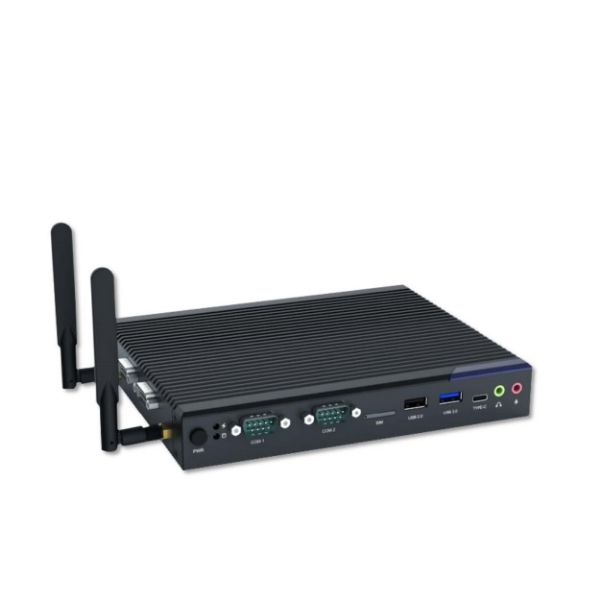

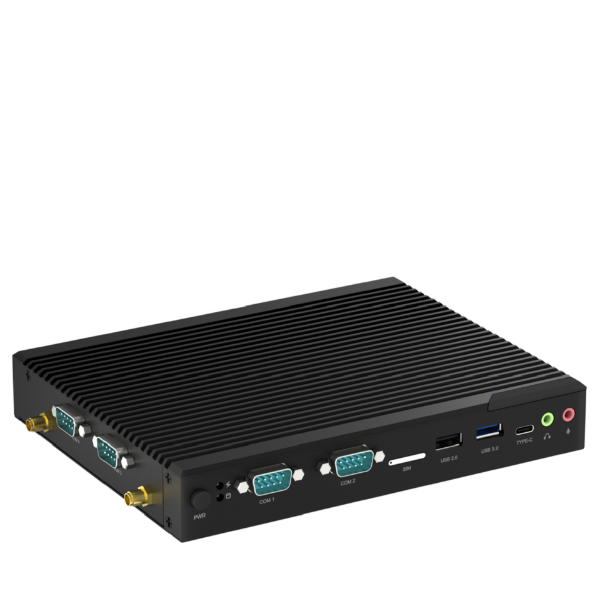

iN7000L2H3

Fanless Booksize 12th Gen Alder Lake-N, UHD Graphics Triple Displays 3 HDMI, 2 LAN + 4 COM + 5 USB + Type-C

Featured Highlights
	Intel® N-Series Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, 3 HDMI
	DDR4-SO-DIMM, support 16GB Memory
	M.2 2280 NVMe/SATA
	2 Gigabit LAN, M.2 2230 WiFi/BT
	3 USB 3.0, 2 USB 2.0, Type C, 4 COM
	Realtek® ALC897 Audio
	DC12V 5A Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, Linux
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: iN7000L2H3

Specifications
Request for Info

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Option: • Intel® N95 3.40GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 3 x HDMI® ports, supporting a maximum resolution of 4K @30Hz Memory • 1 x DDR4 SO-DIMM • Unbuffered non-ECC (Single Channel I/O) • Up to 16GB
Network • 2 x Realtek® RTL8111 Gigabit (10/100/1000Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe) Audio • Realtek® ALC897 Audio • 2 x Audio-In/Mic-Out jacks
Back Panel I/O • 3 x HDMI® ports • 2 x LAN ports • 2 x USB 3.0 ports • 1 x USB 2.0 port • 1 x DC-In Power Connecter Other I/O • 1 x Serial RS232 COM port (Side) • 1 x Serial RS485/422/232 COM port (Side) • 2 x Serial RS232 COM ports (Front) • 1 x USB 3.0 port (Front) • 1 x USB 2.0 port (Front) • 1 x Type-C port (Front) • 2 x Line Out/Mic-In jacks (Front) • 1 x SIM slot (Front)
System BIOS • AMI® BIOS Chassis • Dimensions: 7.83"(W) x 5.98"(D) x 1.18"(H), 199mm(W) x 152mm(D) x 30mm(H) • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc. Environment • Operating Temperature: -10°C to 45°C • Non operating temperature: -20°C to 70°C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
