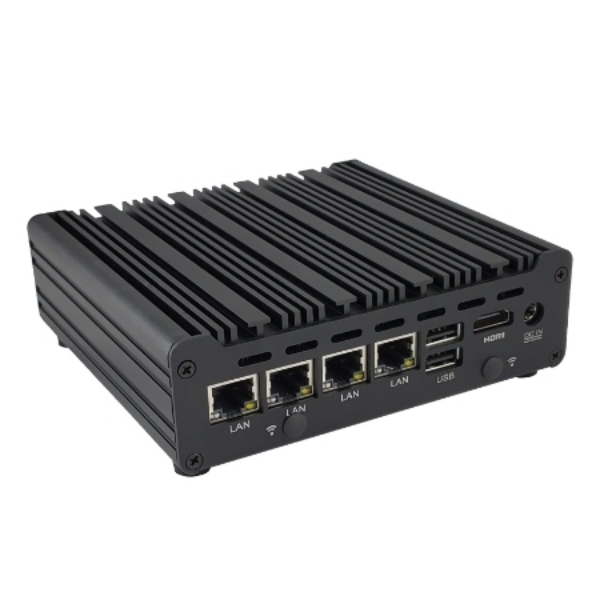

Picture of Nano-N7000L4

Picture of Nano-N7000L4

Picture of Nano-N7000L4

Nano-N7000L4

12th Gen Alder Lake-N, UHD Graphics HDMI+DP, RJ45 Serial Console Port + 4 LAN + 4G/SIM card, 4USB + Type-C

Featured Highlights
	Intel® N-Series Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, HDMI 2.0 + DP 1.4
	1 DDR4-SO, up to 16GB Memory
	M.2 2280 NVMe SSD
	4 Gigabit LAN, MiniPCIe 4G + SIM
	2 USB 3.0 + 2 USB 2.0 + Type-C, RJ45 Serial Console
	HD Audio
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
	Applications: High Speed Router, Firewall, VPN, Network Security, etc.

SKU: Nano-N7000L4

Specifications
Request for Info

Product specifications

Processor • Intel® N95 1.70/3.40GHz 4Core 4Threads 6M 15W • Option: • Intel® N97 3.40GHz 4Cores 6M 12W • Intel® N50 3.40GHz 2Cores 6M 6W • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® i3-N305 3.80GHz 8Cores 8Threads 6M 9W • Intel® Atom® x7213E 3.20 GHz 2Cores 6M 10W • Intel® Atom® x7211E 3.20 GHz 2Cores 6M 6W • Intel® Atom® x7425E 3.40 GHz 4Cores 6M 12W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • HDMI® 2.0, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.4 Memory • 1 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 16GB
Network • 4 x Intel® i225V/i226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • 1 x M.2 2280 (for PCIe NVMe SSD) • 1 x M.2 2230 (for WiFi+BT or Other Module)
Storage • 1 x M.2 2280 (for PCIe NVMe SSD) • 1 x SATA 6Gb/s Audio • HD Audio
Back Panel I/O • 4 x LAN ports • 1 x HDMI® 2.0 port • 1 x DP 1.4 port • 2 x USB 3.0 ports • 1 x DC-In Power Connecter Other I/O • 2 x USB 2.0 ports (Front) • 1 x Type-C USB 3.2 high speed port (Front) • 1 x RJ45 Serial Console port (Front) • 1 x SIM slot (Front)
System BIOS • AMI® BIOS Chassis • Nano Size Fan-less Aluminum Enclosure • Dimensions: 5.35"(W) x 4.96"(D) x 1.57"(H), Weight: 2.2 lbs., Gross: 5 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
Application • High Speed Router, Firewall, VPN, Network Security, etc. Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -30 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
