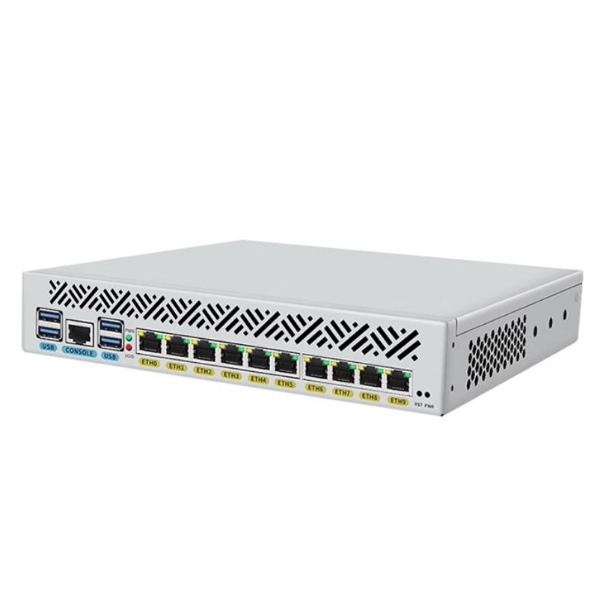

NET-U10L10

10th Gen. Comet Lake-u, UHD 10th Gen. 2 HDMI 4K Displays, mSATA+ mini PCI-E slot, 10 LAN+4 USB 3.0

Featured Highlights
	Intel® Core™ i7/Pentium®-u Processor
	Intel® Comet Lake-u Platform (SOC)
	Intel® UHD 10th Gen. Graphics, 4K Resolution, 2 HDMI®
	2 DDR4 SO-DIMM for up to 64GB Memory
	2.5" SATA HDD/SSD, mSATA SSD
	10 Intel® LAN, MiniPCIe WiFi/BT or 3G/4G
	4 USB 3.0, RJ45 COM
	DC12V 5A Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux, Windows 10/11
	Applications: High Speed Router, Firewall, VPN, Network Security, etc

SKU: Nano-U10L10

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-10810u vPro 1.60/4.90GHz 6Core 12Threads 12M 12.5/25W • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W • Intel® Pentium® Gold 5405u 2.3GHz 2Core 4Threads 2M 12.5/15W Chipset • Intel® Comet Lake-u Platform (SOC)
Graphics • Intel® UHD 10th Gen. Graphics, 4K Resolution, HDR 10Bit color • Support 2 Graphics ports • 2 x HDMI®, supporting a maximum resolution of 4K @60Hz Memory • 2 x DDR4 SO-DIMM • 2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 10 x Intel® I210 Gigabit (10/100/1000Mb/s) LAN • 1 x MiniPCIe full size slot (for WiFi+BT or 3G/4G Pair w/ SIM) • 1 x SIM socket (for 3G/4G option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot (for WiFi+BT or 4G-LTE Pair w/ SIM)
Storage • 1 x 2.5" SATA-6Gb/s HDD/SSD • 1 x mSATA-6Gb/s SSD Back Panel I/O • 2 x HDMI® ports
Other I/O • 10 x LAN ports (Front) • 1 x RJ45 Serial Console port (Front) • 4 x USB 3.0 ports (Front) • 1 x DC-In 2.5mm Power Connector (Side) System BIOS • AMI® UEFI BIOS • Watchdog supported
Systemboard • Small Form Factor Chassis • Slim Metal Chassis • Dimensions: 9.45"(W) x 9.21"(D) x 1.69"(H), Weight: 3.31 lb. (Net) 6 lb. (gross with packaging) • Color: Silver as default color, custom colors available with special order • Supports VESA mount. Rack mount
Power Supply • Power: DC12V 5A~10A 60~120W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Linux, Windows 10/11
Application • High Speed Router, Firewall, VPN, Network Security, etc Environment • Operating Temperature: -20 to +60 C (Please contact product specialist for details) • Non operating temperature: 0 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 10% to 90% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
