Processor
• Core Ultra5-125U/H 4.3GHz, 2+8+2 Core, TDP 15/28W • Core Ultra5-135U/H vPro 4.4GHz, 2+8+2 Core, TDP 15/28W • Core Ultra7-155U/165H vPro 4.9GHz, 2+8+2 Core, TDP 15/28W
|
Graphics
• Intel® UHD Graphics / Iris XE (based on CPU) • 1 x HDMI2.1, Max. 7680 x 4320 @60Hz • 3 x HDMI2.0, Max. 3840 x 2160 @60Hz • 2 x HDMI-IN （based on CPU with IPU)
Memory
• 2 x DDR5 SO-DIMM • 4800MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 2 x Intel i219LM & intel 226V, 2.5 Gigabit Ethernet, Wake-on-LAN support , AMT support
Expansion Slot
• 1 x M.2 2230 with Wi-Fi /BT module support • 1 x M.2 3052 with 4G/5G module support • 2 x M.2 2280 with PCIe 4X /SATA • 1 x M.2 2280 NVMe 5.0 (for 125H or 155H, H-series only).
|
Storage
• 2 x M.2 2280 with PCIe 4X/ SATA, 1 x M.2 NVMe 5.0
Audio
• CMedia CM119B • Audio out + Mic in
|

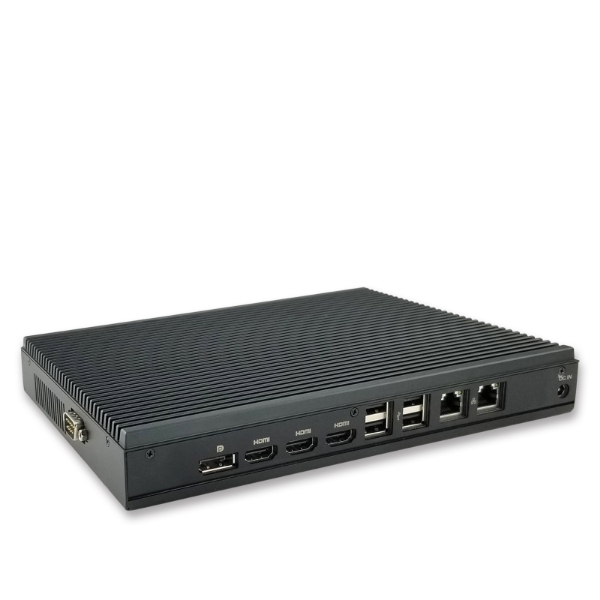

Back Panel I/O
• 1 x HDMI2.1 or DP (8K 60Hz) • 3 x HDMI2.0 (4K 60Hz) • 2 x USB2.0 • 2 x USB3.2 • 2 x LAN • 1 x DC-IN
Front Panel
• 1 x Audio Out • 1 x Mic In • 2 x USB3.2 • 2 x USB2.0 • 1 x Type-C (USB3.2)
|
Other I/O
• 1 x RS232 / RS485 • 2 x HDMI-IN
Function
• Support TPM 2.0, Watchdog, Auto Power On
|
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported
Chassis
• Booksize-iF Slim Fanless enclosure 9.25"(W) x 6.8"(D) x 1.3"(H) (235 x 173 x 33mm) • Booksize ii-Series: Slim version with blower Fan 9.25"(W) x 6.8"(D) x 1.1"(H) (235 x 173 x 28mm) • Net Weight: 3lb (net) 6 lb.(gross with packaging) • Color: Black (other color and custom logo are available with MOQ orders)
|
Power Supply
• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 11/10, IoT, Linux
|
Application
• Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, Set Top Box, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
