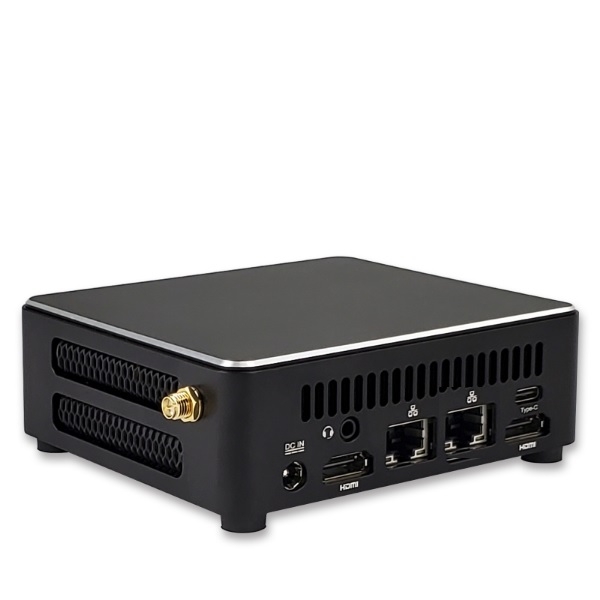

NUC-UC100L2

14th Gen. Meteor Lake, Intel® Arc™ GPU HDMI® + DP, M.2 NVMe SSD with 4 USB + 2 Type-C, Digital Signage Player PC

Featured Highlights
	Intel® Core™ Ultra Processors
	Intel® Meteor Lake Platform (SOC)
	Intel® ARC™ Graphics, HDMI®2.1+DP+2 Type-C
	2 DDR5 SO-DIMM, up to 96GB
	2 M.2 NVMe/SSD
	2 2.5G LAN, WiFi6+BT5.2
	2 USB 3.2, 2 USB 2.0, 2 Type-C
	HD Audio
	DC19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10/11, Linux
	Applications: UHD Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, Network Security, etc.

SKU: NUC-UC100L2

Specifications
Request for Info

Product specifications

Processor • 14th Generation Intel® Core™ Ultra series • Intel® Core™ Ultra 7 165H 0.70/5.00GHz 6P/8E/2LPE-Cores 22Threads 24M 28W • Intel® Core™ Ultra 7 155H 0.70/4.80GHz 6P/8E/2LPE-Cores 22Threads 24M 28W • Intel® Core™ Ultra 5 135U 0.70/4.60GHz 4P/8E/2LPE-Cores 18Threads 18M 28W • Intel® Core™ Ultra 5 125H 0.70/4.50GHz 4P/8E/2LPE-Cores 18Threads 18M 28W Chipset • Intel® Meteor Lake Platform (SOC)
Graphics • Intel® Arc™ Graphics, 8K Resolution • 1 x HDMI® 2.1, supporting a maximum resoltion of 8K @60Hz • 1 x DP, supporting a maximum resolution of 8K @60Hz • 2 x Type-C, supporting a maximum resolution of 8K @60Hz Memory • 2 x DDR5 SO-DIMM • 5600MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 96GB
Network • 2 x Intel® I225B 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • Integrated Intel® AX201 WiFi6/BT5.2 • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2280 (for PCIe Gen4x4 NVMe SSD) • 1 x M.2 2280 (for PCIe Gen3x4 NVMe SSD)
Storage • 1 x M.2 2280 (for PCIe Gen4x4 NVMe SSD) • 1 x M.2 2280 (for PCIe Gen3x4 NVMe SSD) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x USB 3.2 ports • 2 x LAN ports • 1 x Type-C port • 1 x DP • 1 x HDMI® 2.1 port • 1 x DC-In Power Connector Other I/O • 2 x USB 3.0 ports (Front) • 1 x Type-C port (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit Chassis • Nuc Sized Chassis, Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, IoT, Linux
Application • Digital Signage, Kiosk, Edge AI, IoT, Set Top Box, Network Security, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
