Processor
• 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U,i7-1355U, i7-1335U
• Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U
• Intel® Core™ i3-1315U, i3-1305U, i3-1315U
Chipset
• Intel® Raptor Lake-u/-p Platform (SOC)
|
Graphics
• Intel® Iris® Xe Graphics, 4K/8K Resolution • Support Multi Displays • 2 x HDMI® 2.1, 4K 60Hz Graphics ports • 2 x Type-C (support DP 8K 60Hz or HDMI 2.1 4K 60Hz)
Memory
• 2 x DDR5 SO-DIMM unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 1 x Gigabit (10/100/1000 Mb/s) LAN • Optional 2nd (10/100/1000 Mb/s) LAN (Taking a rear USB 3.0 port) • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x SATA HDD
|
Storage
• 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Audio
• HD Audio • 1 x 3.5mm Analog Stereo Audio jack
|
Back Panel I/O
• 2 x Type-C (support DP) • 2 x HDMI® port • 1 x LAN + 1 x USB 3.0 or 2 x LAN ports • 1 x DC-In Power Connector
Other I/O
• 2 x USB 3.2 ports (Front) • 1 x 3.5mm Audio jack (Front)
|
System BIOS
• AMI® UEFI 64MBit

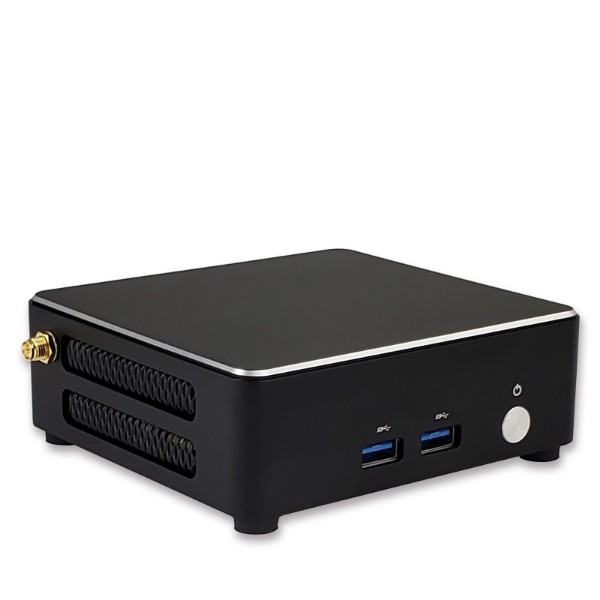

Chassis
• Nuc Chasiss Size, Dimension: 4.39"(W) x 4.39"(D) x 2.16"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
|
Power Supply
• Power: DC12-19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10/11, IoT, Linux
|
Application
• Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
