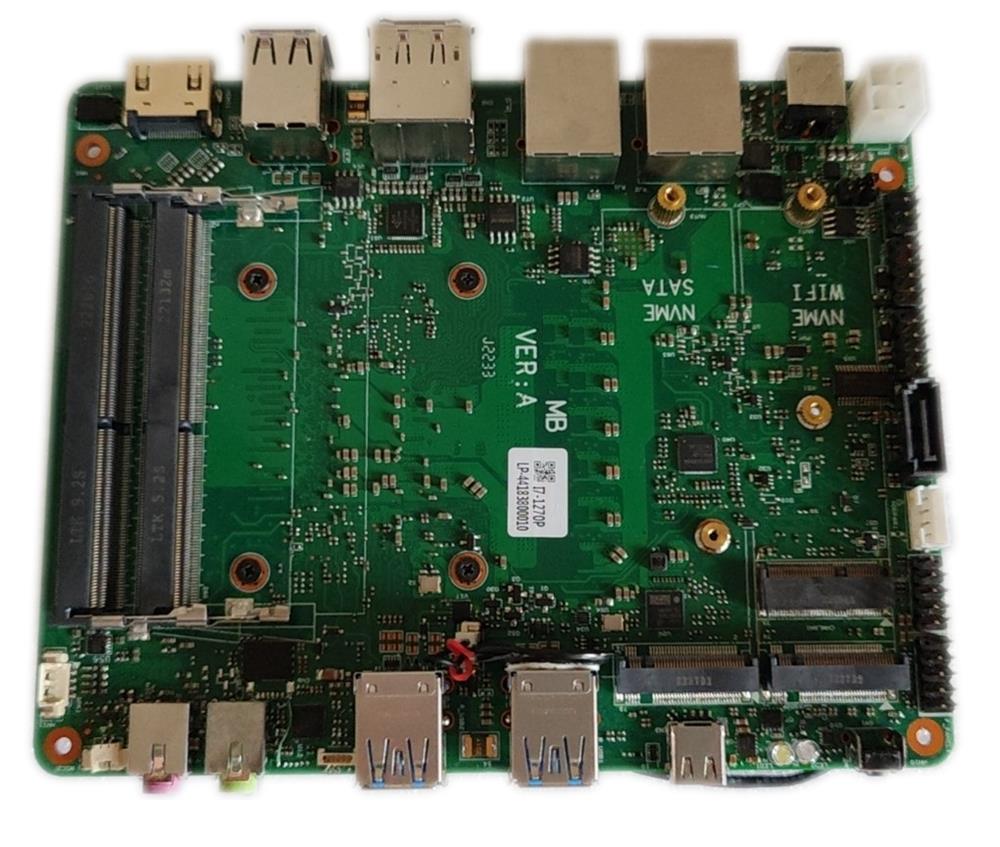

Processor
• 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P 3.70/5.00Ghz 12Cores 16Threads 18M 28/64W
• Intel® Core™ i7-1370P 3.50/4.80GHz 14Cores 20Threads 24M 28/64W
• Intel® Core™ i7-1365U 3.90/5.20Ghz 10Cores 12Threads 12M 15/55W
• Intel® Core™ i7-1335U 3.70/5.00GHz 10Cores 12Threads 12M 15/55W
• Intel® Core™ i5-1350P 3.50/4.70GHz 12Cores 16Threads 12M 28/64W
• Intel® Core™ i5-1340P 3.40/4.60GHz 12Cores 16Threads 12M 28/64W
• Intel® Core™ i5-1345U 3.50/4.70GHz 10Cores 12Threads 12M 15/55W
• Intel® Core™ i5-1335U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W
• Intel® Core™ i5-1334U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W
• Intel® Core™ i3-1315U 3.50/4.50GHz 6Cores 8Threads 12M 15/55W
• Intel® Core™ i3-1305U 3.30/4.50GHz 5Cores 6Threads 10M 15/55W
• Intel® Core™ i3-1315U 3.40/4.60GHz 6Cores 8Threads 10M 15/55W• Intel® Core™i5-13500H 3.50/4.70GHz 12Cores 16Threads 18M 35/95W • Intel® Core™i7-13700H 3.70/5.00GHz 14Cores 20Threads 24M 35/115W • Intel® Core™i9-13900H 4.10/5.40GHz 14Cores 20Threads 24M 35/115W • Intel® Core™U300 3.30/4.40GHz 5Cores 6Threads 24M 35/115W
Chipset
• Intel® Alder Lake-u/p Platform (SOC)
|
Graphics
• Intel® Iris® Xe or 12th Gen UHD Graphics • Supports Quad Displays with 8K Graphics • 1 x eDP header • 2 x HDMI® 2.0, max. resolution up to 4096x2160 4K at 60Hz • 1 x DP 1.4, max. resolution up to 8K at 60Hz • 1 x Type-C (ThunderBolt4.0), supports DP 1.4 or HDMI® 2.1
Memory
• 2 x DDR4 SO-DIMM • 3200/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 2 x Intel® I226v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
|
Storage
• 1 x SATA 6Gb/s • 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
Audio
• Realtek ALC269-D0-VB6 Audio Codec (Chip) • 2 x 3.5mm Analog Stereo Audio jacks
|

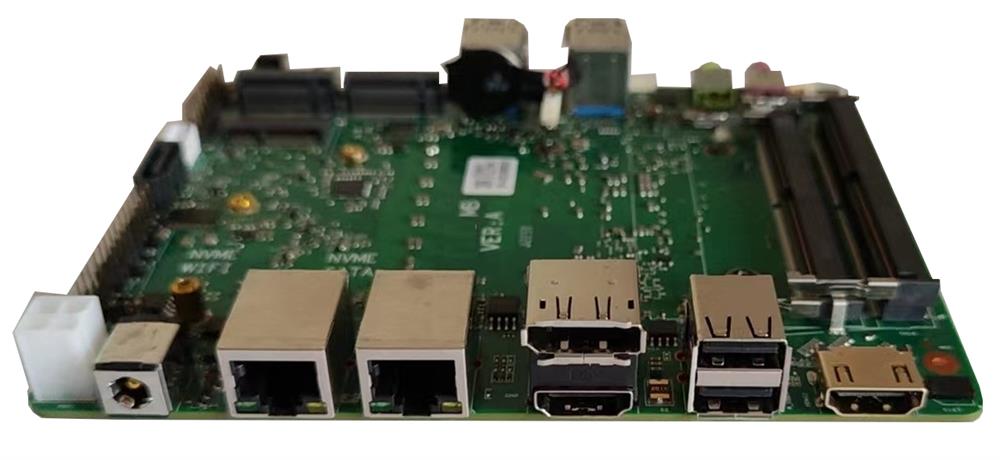

Back Panel I/O
• 2 x USB 2.0 ports • 2 x HDMI® 2.0 ports • 1 x DP 1.4 • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 1 x USB 2.0 header (for 2 x USB 2.0 ports) • 2 x Serial COM headers (RS232 + RS232/RS485) • 1 x eDP header (for Panel Display)
|
Other I/O
• 2 x USB 3.0 ports (Front), 2 x USB 2.0 (Front) • 1 x Type-C Thunderbolt 4.0 port (Front) • 2 x 3.5mm Audio Jacks (Front)
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported
|
Chassis

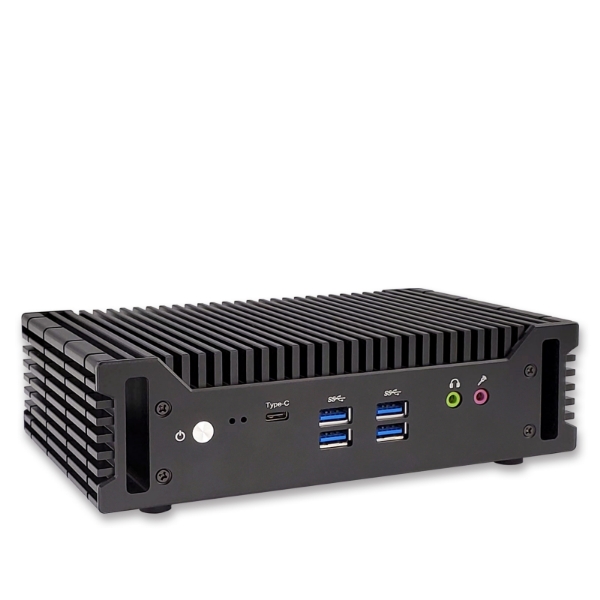

• Nano-U10L2C: Nano-10 Chassis with heatpipe blower. 6.61"(W) x 5.04"(D) x 1.50"(H), 2 lb. (Net) • Nano-U12FL2C: Nano-F15 Fanless Chassis 7.6"(W) x 4.90"(D) x 2.1"(H) 2.75 lb. (net) 6 lb. (gross) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, DIN, wall mount or rackmount brackets
|
Power Supply
• Power: DC12/19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 11/10, IoT, Linux, FreeBSD
|
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, AI-IoT/Edge System, Client Computing, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
