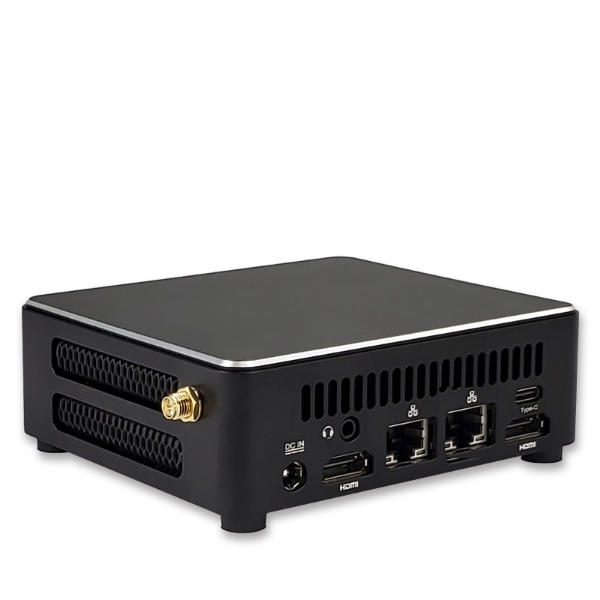

NUC-U11L2

11th Gen. Tiger Lake, 11th Gen UHD Graphics Dual Display HDMI + Mini-DP, SATA+M.2 NVMe SSD with 2 USB + Type-C, Digital Signage Player PC

Featured Highlights
	Intel® Core™ i7/i5/i3/Celeron® Processor
	Intel® Tiger Lake Platform (SOC)
	Intel® UHD Graphics,4K/5K Resolution, HDMI+Mini-DP
	2 DDR4 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	2 Gigabit LAN
	2 USB 3.0, 1 Type-C
	Realtek® ALC662 Audio Codec
	DC12V-19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10, Linux
	Applications: UHD Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, Network Security, etc.

SKU: Nuc-U11L2

Specifications
Request for Info

Product specifications

Processor Intel® Core™ i3-1115G4 3.00/4.10GHz 2C/4T 6M 28W Intel® Core™ i5-1135G7 2.40/4.20GHz 4C/8T 8M 28W Intel® Core™ i7-1165G7 2.80/4.70GHz 4C/8T 12M 28W Intel® Celeron® 6305E 1.80GHz 2C/2T 4M 15W Chipset • Intel® Tiger Lake Platform (SOC)
Graphics • Intel® UHD Graphics, 4K Resolution • Support Dual Displays • 1 x HDMI® 2.0, 4K 60Hz Graphics port • 1 x Mini-DP 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 3200/2666/2400MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 2 x Intel® i225B-V3 Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x SATA HDD • PCIe 2X • M.2 2242(Optional)
Storage • 1 x SATA 6Gb/s • PCIe X2 NVMe • 1 x M.2 2242(Optional) Audio • Realtek® ALC662 Audio Codec • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 1 x Mini-DP port • 1 x HDMI® port • 2 x LAN port • 1 x DC-In Power Connector Other I/O • 2 x USB 3.0 ports (Front) • 1 x Type-C port (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit Chassis • Nuc Sized Chassis, Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12-19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Application • Digital Signage, Kiosk, Edge AI, IoT, Set Top Box, Network Security, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
