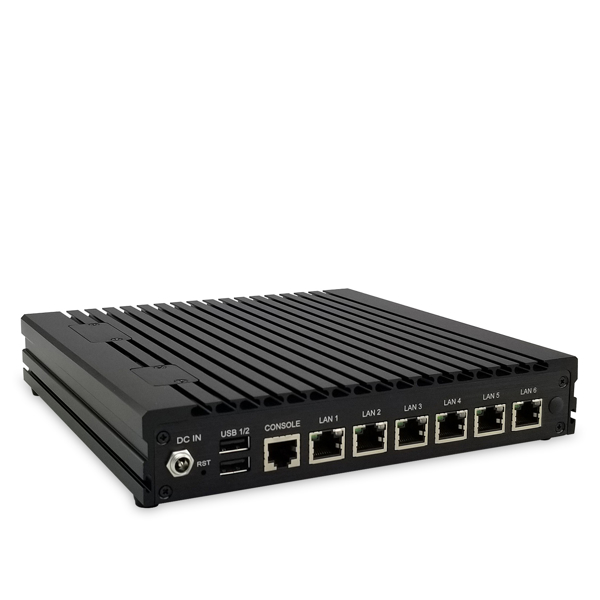

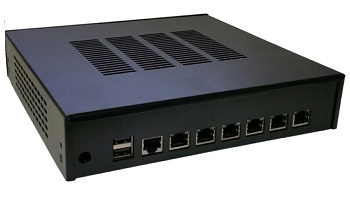

Picture of J1900L6

Picture of J1900L6

Picture of J1900L6

Picture of J1900L6

Picture of J1900L6

J1900L6

Bay Trail 4Core Celeron®, Embedded Network Security Gateway, 6 LAN+MiniPCIe+Console

Featured Highlights
	Intel® Celeron® J1900 Processor
	Intel® Bay Trail Platform (SOC)
	Intel® HD Graphics 1920x1080, Optional VGA
	DDR3L SO-DIMM for up to 8GB Memory
	SATA-6Gb/s
	PCI Express 3.0 x8, MiniPCIe
	6 Gigabit LAN
	2 USB 2.0
	5.1 ALC662 Audio Sound
	DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
	Applications: Firewall, Network Appliance, POS/Kiosk, IP/PBX, IoT/Edge System, Network Security Gateway etc.

SKU: J1900L6

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W Chipset • Intel® Bay Trail Platform (SOC)
Graphics • Intel® 7th Generation HD Graphics 1080p Resolution • Support 1 Graphics port • 1 x Internal VGA port Memory • 1 x DDR3L SO-DIMM • 1600/1333MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB
Network • 6 x Intel® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 3.0 x8 slot • 1 x MiniPCIe full size slot
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s by MiniPCIe full size slot • 1 x CF (Compact Flash) socket (for OS boot) Audio • Realtek® ALC662 6-channel (5.1)
Back Panel I/O • 2 x USB 2.0 ports • 1 x RJ45 Serial COM port • 6 x LAN ports • 1 x DC-In 2.5mm Power Connector Internal I/O • 1 x Internal Vertical VGA port
System BIOS • Watchdog supported Systemboard • Small Form Factor • Back I/O
Chassis • 100F2 Fanless Aluminum, Convertible to 1U Rackmount • 1 x 2.5" Drive bay • Dimensions: 8.1"(W) x 8.1"(D) x 1.5"(H) inch, Weight: 3 lb(Net) 10 lb(gross with packaging) • Cooling: Heatsink Top Cover Shassis • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: 175C Case 8"Wx8"Dx1.75"H Power Supply • Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 7, Windows 8, Windows 10, IoT, Linux Application • Set Top Box, Network Appliance, POS/Kiosk, IP/PBX, IoT/Edge System, etc. • Embedded-Longevity
Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
