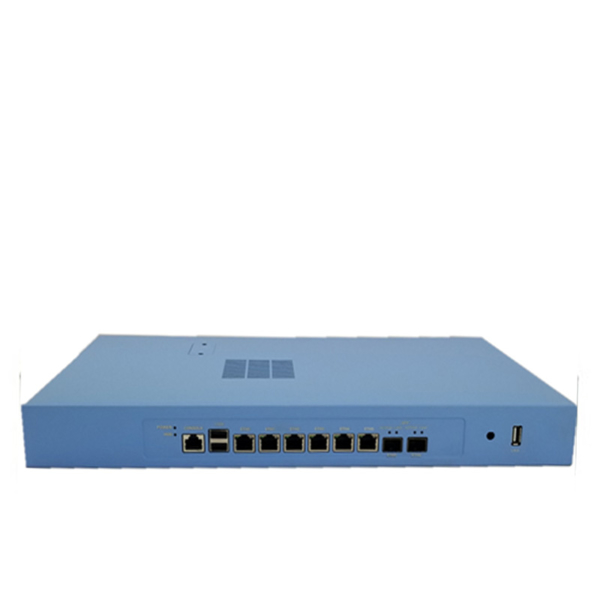

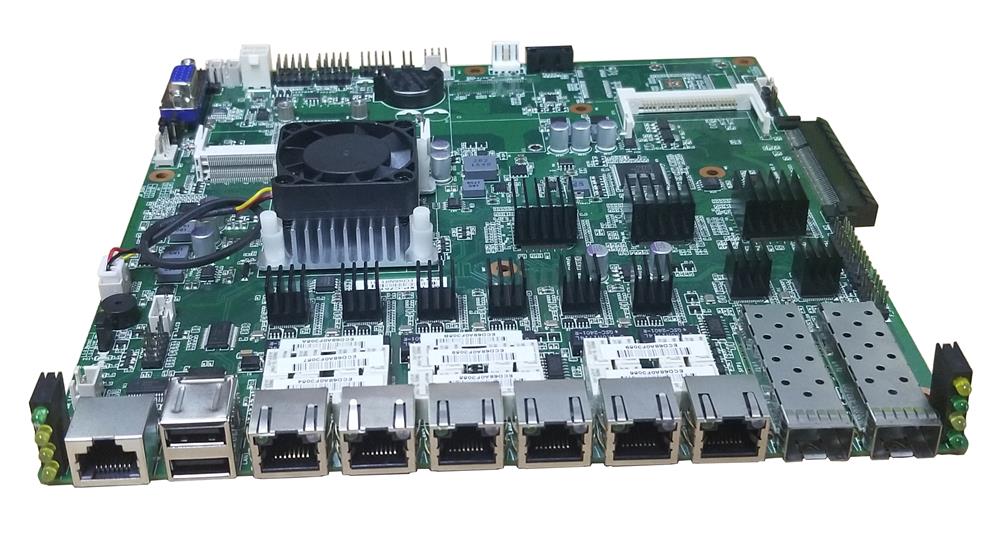

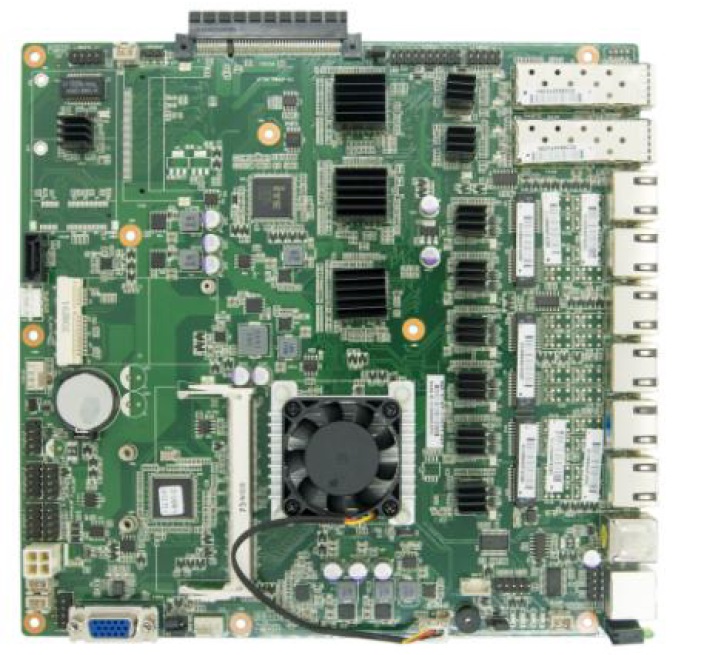

J1900SFP

Bay Trail Celeron®, PCIe 3.0 x8+Optional MiniPCIe, SATA+mSATA+CF, 7 LAN+2 SFP

Featured Highlights
	Intel® Celeron® Processor
	Intel® Bay Trail Platform (SOC)
	DDR3L SO-DIMM for up to 8GB Memory
	SATA-6Gb/s, mSATA-6Gb/s
	PCIe 3.0 x8, Optional MiniPCIe
	7 Intel® Gigabit LAN + 2 SFP Gigabit LAN
	3 USB 2.0
	5.1 ALC662 Audio Sound
	DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
	Applications: Set Top Box, Network Appliance, IP/PBX, IoT/Edge System, etc.

SKU: J1900SFP

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W • Intel® Celeron® N2807 1.58/2.16GHz 2Core 2Threads 1M 2.5/4.3W Chipset • Intel® Bay Trail Platform (SOC)
Memory • 1 x DDR3L SO-DIMM • 1333MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB Network • 7 x Intel® I211-AT Gigabit (10/100/1000 Mb/s) LAN • 2 x SFP/RJ45 Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot • 1 x PCI Express 3.0 x8 slot • Optional 1 x MiniPCIe full size slot Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s • 1 x CF (Compact Flash) (for OS boot)
Audio • Realtek® ALC662 6-channel (5.1) Back Panel I/O • 1 x DC-In 2.5mm Power Connector
Other I/O • 3 x USB 2.0 ports (Front) • 9 x LAN ports (Front) Function • 1 x 4in/4out GPIO header
System BIOS • Watchdog supported Systemboard • Small Form Factor • Back I/O
Chassis • 1U-Custom Ivy Bridge Multi display Mini PC • Dimensions: 1.75"(H)x17"(W)x16.9"(D) • Color: Black • Optional: via USB Audio Module • Option: 1750F Fanless with slot Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 7, Windows 8, Windows 10, IoT, Linux Application • Set Top Box, Network Appliance, IP/PBX, IoT/Edge System, etc. • Embedded-Longevity
Environment • Operating Temperature: 0 to +45 C • Non operating temperature: -10 to +55 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 95% (non-condensing) • Non-operating Relative Humidity: 10% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
