Processor
• Intel® Core™ i5-8250u 1.60/3.40GHz 4Core 8Threads 6M 10/15/25W • Intel® Core™ i3-8130u 2.20/3.40GHz 2Core 4Threads 4M 15W • Intel® Celeron® 3867u 1.80GHz 2Core 2Threads 2M 15W • Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 7.5/15/25W
Chipset
• Intel® Kaby Lake-r Platform (SOC)
• Option: Intel® Kaby Lake-u Platform (SOC)
|
Graphics
• Intel® UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color • Option: Intel® HD 620 Graphics, 4K Resolution • Support 1 Graphics port • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
Memory
• 4G/8G/16G DDR4 (built-in, non-changeable)
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
|
Storage
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • 32G/64G/128G eMMC Flash Internal Storage
Audio
• 5.1 HD Audio Subsystem via HDMI® 1.4 Interface • 1 x 3.5mm Analog Stereo Audio Combo jack (Headphone/Mic)
|

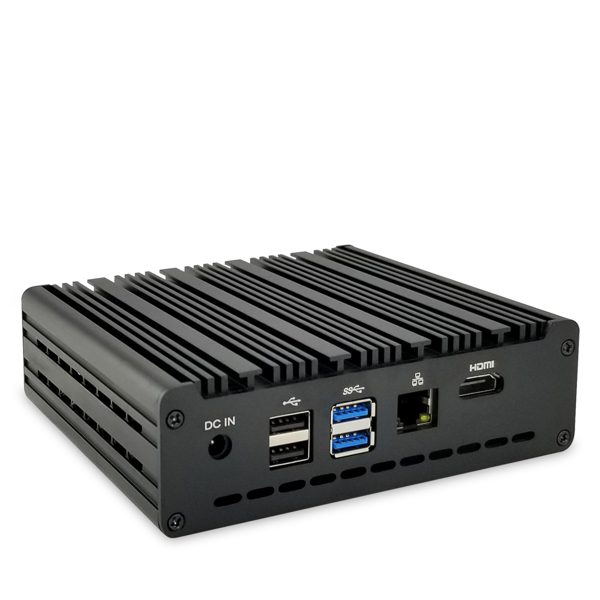

Back Panel I/O
• 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x HDMI® port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector
Other I/O
• 2 x USB 3.0 ports (Front) • 2 x Serial COM ports (Front) • 1 x 3.5mm Combo Audio jack (Front)
|
System BIOS
• AMI® UEFI / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
Chassis
• Nano-F5 Chassis • 15mm 2.5" HD Bay • Dimensions: 5.43"(W) x 4.96"(D) x 1.65"(H) (Height dimension changeable), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets • Option: Nano-F7S 8.27"(W) x 6.30"(D) x 1.38"(H), Nano-F8 5.43"(W) x 4.96"(D) x 1.65"(H)
|
Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 11/10, IoT, Linux
|
Application
• Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, Industrial Control/IPC, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
