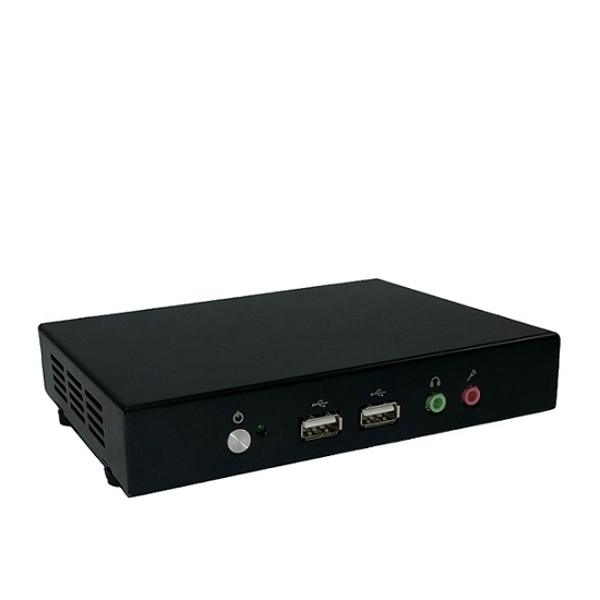

Picture of Nano-A6/A4

Picture of Nano-A6/A4

Picture of Nano-A6/A4

Picture of Nano-A6/A4

Nano-A6/A4

AMD APU A6-1450, HDMI, DVI, mSATA, MiniPCIe

Featured Highlights
	AMD APU A6-1450 Processor
	AMD® Kabini SoC
	AMD® Radeon HD 8250 Graphics, HDMI+DVI
	DDR3 SO-DIMM for up to 8GB Memory
	MiniPCIe
	RJ45® Gigabit LAN
	2 USB 3.0, 2 USB 2.0
	mSATA
	5.1 ALC662 Audio Sound
	Power Supply: DC12V 3A input
	OS Support: Windows 7, Windows 10, IoT, Linux
	Applications: Set Top Box, Digital Signage, Traffic Controller, etc.

SKU: Nano-A6/A4

Specifications
Request for Info

Product specifications

Processor • AMD® APU A6-1450 1.00GHz 4Core 8W • Option: AMD® APU A4-1250 1.00GHz 2Core 8W Chipset • AMD® Kabini SoC
Graphics • AMD® Radeon HD 8250 Graphics • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI Port Memory • 1 x DDR3 SO-DIMM • 1600/1333MHz unbuffered non-ECC • Supports up to 8GB
Network • 1 x RJ45 Gigabit (10/100/1000 Mb/s) LAN Expansion Slot • 1 x MiniPCIe full size Slot
Storage • 1 x mSATA 6Gb/s Audio • Realtek® ALC662 6-channel (5.1)
Back Panel I/O • 2 x USB 3.0 Ports • 1 x HDMI® port • 1 x DVI port • 1 x LAN port • 1 x DC-In 2.5mm Jack port Other I/O • 2 x USB 2.0 Ports (Front)
System BIOS • AMI® UEFI BIOS Chassis • Nano-Z series Plastic Enclosure • Dimensions: 6.00"(W) x 3.70"(D) x 1.00"(H), Weight: 7 lb. • Color: Black
Power Supply • Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 7, Windows 10, IoT, Linux
Application • Set Top Box, Digital Signage, Traffic Controller, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
