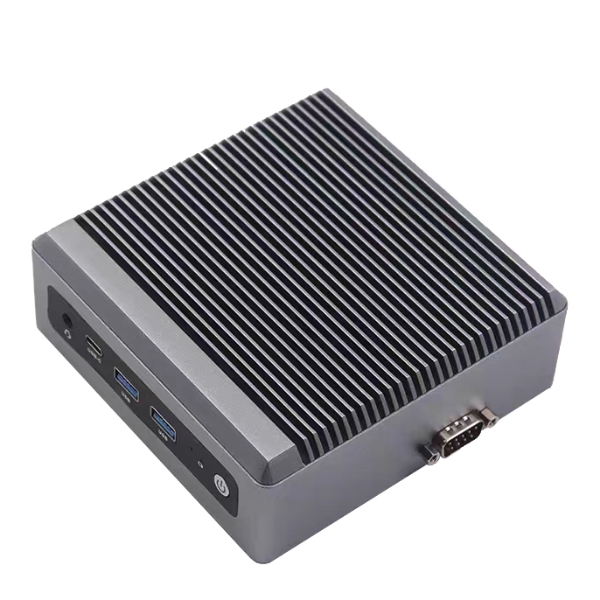

Picture of Nano-N7000L2V2c

Picture of Nano-N7000L2V2c

Picture of Nano-N7000L2V2c

Nano-N7000L2V2c

Alder Lake-N, HDMI + DP, COM + 2 LAN, Type-C

Featured Highlights
	Intel® 12th Gen® Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® 12th Generation UHD Graphics, HDMI 2.0 +DP 1.4, Type-C (DP 1.4)
	DDR4 SO-DIMM Memory up to 32GB
	M.2-SSD + SATA 3.0
	2 Gigabit LAN, miniPCIe-4G/5G
	3 USB 3.2, 1 USB 2.0, COM
	ALC897 HD Audio
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10/11, Linux
	Applications: Digital Signage, Edge AI, Set Top Box, Audio/Video PC, Network Security, Embedded Longevity

SKU: Nano-N7000L2V2c

Specifications
Request for Info

Product specifications

Processor • Intel N100 3.40GHz 4Cores 4Threads 6M 6W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® 12th Generation UHD Graphics • Multi Display Output • 2 x HDMI® 2.0 supports 4K 60Hz resolution • 1 x Type-C (with DP 1.4 4K 60Hz) Memory • 1 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 2 x Realtek RTL8125 2.5 Gigabit (10/100/1000 Mb/s) LAN (Optional 1 LAN with extra 2 USB 2.0 ports) • 1 x M.2 2230 (for WiFi/BT or 4G-LTE Module pair w/ SIM slot) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi/BT or 4G-LTE Module pair w/ SIM slot) • 1 x M.2 2280/2242 (for SATA-6Gb/s or NVMe SSD)
Storage • 1 x SATA 3.0 port • 1 x M.2 2280/2242 (for SATA-6Gb/s or NVMe SSD) Audio • HD Audio • 1 x 3.5mm Analog Stereo In/Out Audio Combo jack
Back Panel I/O • 1 x USB 3.2 ports • 1 x USB 2.0 ports • 2 x HDMI® 2.0 port • 2 x LAN ports • 1 x DC-In Power Connector(2.5mm) Other I/O • 1 x Type-C (Front) • 1 x 3.5mm Audio jack (Front) • 2 x USB 3.2 ports (Front)
Function • Optional TPM 2.0 System BIOS • AMI® UEFI 64MBit / Legacy BIOS
Chassis • Nano Fanless Enclosure • Dimensions: 5"(W) x 5"(D) x 1.79"(H), Weight: 3 lb • Color: Black or Silver as default color, custom colors available with special order Power Supply • Power: DC12V or higher wattage Power Adapter Phoenix 2 Pole plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10/11/IoT, Linux Application • Digital Signage, Edge AI, Set Top Box, Audio/Video PC, Network Security, Medical/Healthcare, High-Speed Railway
Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
