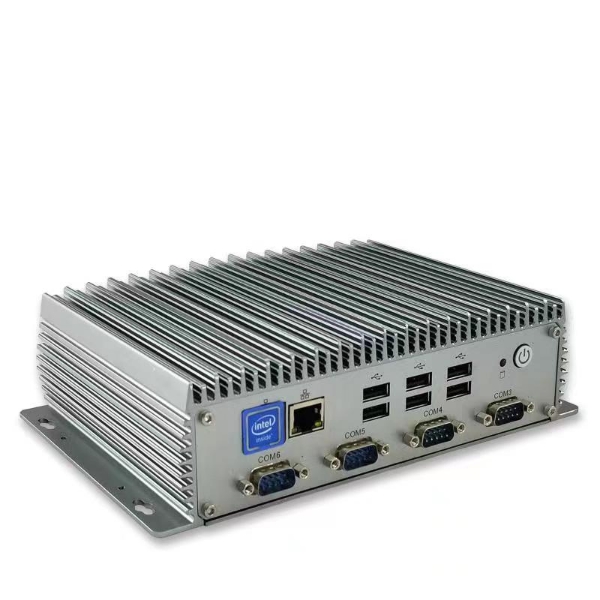

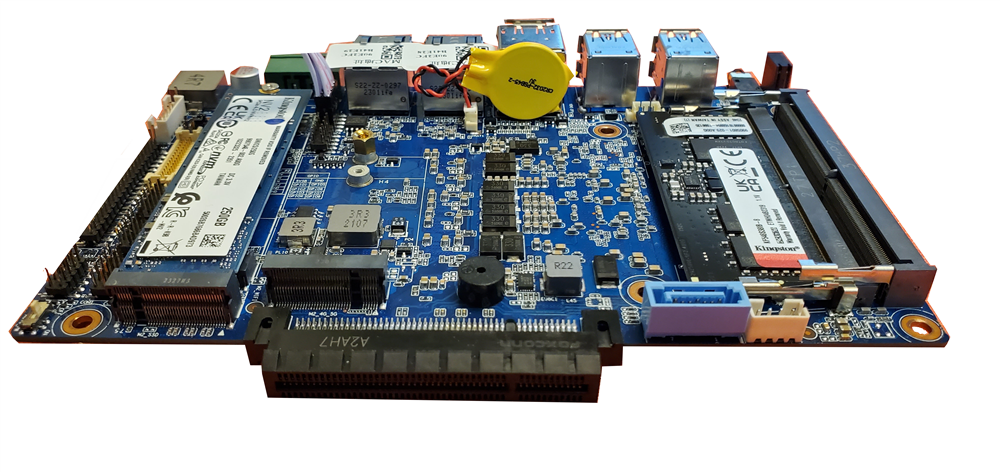

Nano-U12FL2C6

12th/13th Gen. Alder/Raptor lake u/P/H-Series CPU, Iris UHD Graphics HDMI+DP, 3/4 LAN+10 USB+2 M.2, PCIe x8+6 COM+vPro support

Featured Highlights
	Intel® 12th/13th Gen. Core™ i7/i5/i3/Celeron® u-Series Processor
	Intel® Alder/Raptor Lake-u Platform (SOC)
	Intel® Iris® Xe Graphics, DP+HDMI+LVDS/eDP
	2 DDR4 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, PCIe x8 Slot for Daughter I/O
	M.2 WiFi, M.2 NVMe/SATA SSD
	Up to 4 Gigabit LAN + Optional 4 PoE ports
	10 USB 3.0/2.0, 2xRS232/422/485 + 4xRS232 Serial Ports
	5.1 ALC662 Audio Sound
	9V-36V Wide Range Industrial Phoenix type DC-In Supported
	OS Support: Windows 8.1, Windows 10, Windows 11, Linux
	Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, Industrial Rugged PC etc.
	Tech manual

In Stock

SKU: Nano-U12FL2C6

Specifications
Request for Info

Product specifications

Processor 12th Gen Intel®: • Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W • Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W • Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W • Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W 13th Gen Intel®: • Intel® Core™ i7-1365U, i7-1335U • Intel® Core™ i5-1345U, i5-1335U • Intel® Core™ i3-1315U, i3-1305U, i3-1315U Chipset • Intel®Alder/Raptor Lake-u/p Platform (SOC)
Graphics • Intel® UHD Iris® Xe Graphics (based on CPU) • Support 3 Displays • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 1.2 4K 60Hz • 1 x LVDS/eDP header Memory • 2 x DDR4 SO-DIMM • 2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 or 2 x Intel® I211A Gigabit (10/100/1000 Mb/s) LAN (Rear) • 1 or 2 Optional Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN (Front) • 4 x Optional Gigabit PoE (upto 56V per port) LAN (front) • M.2 2230 (Taken by WiFi+BT Module) • Optional MiniPCIe or M.2 5G/4G-LTE+sim slot • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • Option: 1 x PCI Express x8 slot for custom I/O module or daughter board • Daughter Module Available for custom order: • Front 4 Port PoE out • Front 4 Gigait LAN Module • Front Dual LAN + 6 USB • Front 4 x RS422/RS485 • Front 8 x USB 3.0 • mini-PCIe or M.2 for 5G/4G-LTE modem • Video Capture Module • Additonal Dual M.2-2280 for NVMe
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Realtek® ALC662 6-channel (5.1) • 1 x 3.5mm Audio/Mic Combo jack
Back Panel I/O • 4 x USB 3.1 ports • 2 x RS-232/RS-422/RS-485 DB9 Serial ports • 1 x HDMI® port • 1 x DP 1.2 • 2 x LAN ports • 1 x 3.5mm Combo jack • 1 x DC-In 2 Pole Power Connector Internal I/O • 2 x 9pin USB 2.0 headers (Taken by Front USB) • 1 x LVDS header (Option: 1 x eDP) • 1 x 40pin COM header (for 4 x RS232, Taken by Front COM ports) • 2 x 5 pin COM headers (for 2 x RS232/RS485, Taken by Front COM ports)
Other I/O • 4 x RS232 Serial COM ports (Front) • 6 x USB 2.0 ports or Optional 2 x USB 3.0 + 4 x USB 2.0 (Front) • Optional 1 x LAN port or 4 x PoE LAN ports (Front) Function • 1 x TPM header • 1 x 4in/4out GPIO header • 2 x 4pin SPI headers
System BIOS • Watchdog supported Chassis • Nano-F11B Chassis • Dimensions: 7.79"(W) x 5.71"(D) x 2.41"(H), Weight: 3.5 lb. (Net) 5.5 lb. (gross with packaging) • Optional 100F2 Slim Fanless Chassis "8"(W)x5.71" x 1.90"(H) • Color: Black, custom colors available with special order • Supports VESA/wall mount brackets
Form Factor • FormFactor Power Supply • Power adapter: 9V-36V Phoenix type DC-In or DC12V/19V 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W Phoenix Adapter
OS Support • Windows 8.1, Windows 10, Windows 11, Linux Application • Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, etc.
Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -40 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
