Processor
• 8 th/10 th Generation Comet Lake FCBGA1528pin u-series Mobile processor • Intel® Core™ i5-8259u 2.30/3.80GHz 4Core 8Threads 6M 15/28W • Optional Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15W • Intel® Celeron® 5205u 1.90GHz 2Core 2Threads 2M 15W
Chipset
• Intel® Coffee Lake / Comet Lake-u Platform (SOC)
|
Graphics
• Intel® Iris® Plus Graphics 655 • Optional Intel® 10th Gen. UHD 4K Graphics • Support 3 Display • 1 x DP, 4K 60Hz Graphics port • 1 x HDMI® 2.0, 4K 60Hz Graphics port • 1 x Type-C, 4K Graphics port convertible to DP or HDMI® via Cable or converter
Memory
• 2 x DDR4 SO-DIMM • 2933/2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 1 x Intel® I211 Gigabit (10/100/1000 Mb/s) LAN • 1 x Intel® I219 Gigabit (10/100/1000 Mb/s) LAN • Intel® 3168ac 11ac WiFi+BT, Optional 11ax WiFi-6 • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • 1 x M.2 2242 (for Optional 5G/4G-LTE Modem along with MicroSIM Pair) • Wake on LAN, PXE boot (Diskless) supported
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2242 (for Optional 5G/4G-LTE Modem along with MicroSIM Pair) • 1 x M.2 2280 (for SATA-6Gb/s PCIe x4 NVMe)
|
Storage
• 1 x M.2 2280 (for SATA-6Gb/s PCIe x4 NVMe)
Audio
• Realtek® ALC662 6-channel (5.1) • 1 x 3.5mm Combo+ Audio jack (Supports S/PDIF)
|

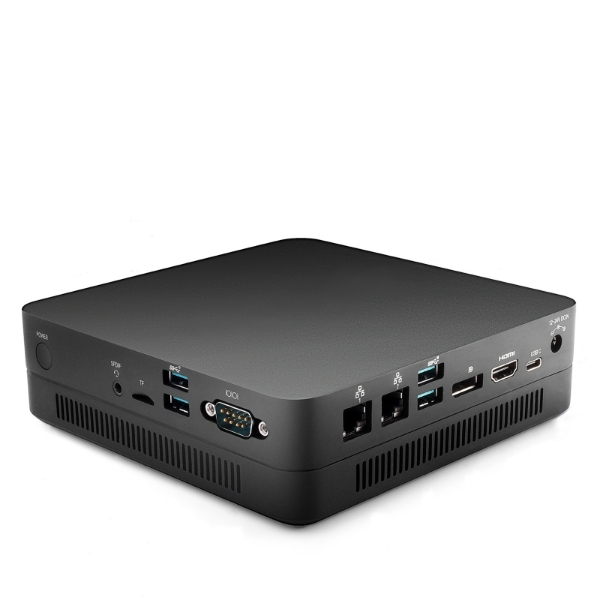

Back Panel I/O
• 1 x DP • 1 x HDMI® port • 1 x Type-C port (supports USB 3.2 and Graphics) • 2 x USB 3.1 ports • 2 xLAN ports • 1 x DC-In 2.5mm Power Connector (DC12-24V)
Other I/O
• 2 x USB 3.1 ports (Side) • 1 x RS-232 Serial COM port (Side) • 1 x 3.5mm Combo+ Audio jack (Side) • 1 x MicroSD (TF) slot (Side)
|
Internal I/O
• 1 x Serial COM header • 1 x MicroSIM slot
Function
• 1 x 4in/4out GPIO header
|
System BIOS
• AMI® UEFI / Legacy BIOS • Watchdog supported
Chassis
• STX-6A STX Plastic Chassis • Dimensions: 6.00"(W) x 6.00"(D) x 1.69"(H), Weight: 3 lb. (Net) 8 lb. (gross with packaging) • Cooling: Slim CPU Blower Fan with Copper Heatsink • Color: Black as default color, option: Other custom color available with MOQ required for Project customers • Supports VESA/wall mount brackets
|
Power Supply
• Power: DC12V 3A or DC19V 4.74A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 11/10, IoT, Linux
|
Application
• SoHo PC, Set Top Box, Digital Signage, POS/Kiosk, Visual Computing, Network Appliance, Edge AI, Vehicle PC, etc.
Environment
• Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
|
