Processor
• 8th/10th Generation Intel® Core™ u-series FCBGA1528 Processor• Intel® Core™ i7-10710U 1.10/4.70GHz 6Core 1Threads 12M 15/25W• Intel® Core™ i5-10210U 1.60/4.20GHz 4Core 8Threads 6M 15/25W• Intel® Core™ i3-10110U 2.10/4.10GHz 2Core 4Threads 4M 15/25W• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15• Intel® Celeron® 5205u 2.40GHz 2Core 2Threads 2M 15• Intel® Core™ i5-8259u 2.30/3.80GHz 4Core 8Threads 6M w/Iris Plus Graphics 655• Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W
Chipset
• Intel® Comet Lake/Whiskey Lake Platform (SOC) • Intel® Coffee Lake Platform (SOC)
|
Graphics
• Intel® 10th Gen. UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color • Support 2 Graphics ports • 1 x Standard JAE-80pin OPS Port (HDMI® signal) • 1 x HDMI® port
Memory
• 2 x DDR4 SO-DIMM • 2933/2666/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
|
Network
• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for 802.11 ac/n WiFi+BT or Other Module) • 1 x M.2 3042 (for 4G/5G-LTE Module Pair with SIM Card) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 4G-LTE Module Pair with SIM Card) • 1 x M.2 2280 (for SATA-6GB/s or PCIe 4x NVMe)
|
Storage
• 1 x M.2 2280 (for SATA-6GB/s or PCIe 4x NVMe) • Storage Capacity Supports >1TB SSD
Audio
• Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm analog stereo audio jacks for Audio Out and Microphone
|
Back Panel I/O
• 1 x JAE-80pin OPS Connector • 1 x DC-In 2.5mm Power Connector • 1 x Micro-SIM slot
Other I/O
• RS-232 Serial Signal via JAE-80pin OPS Connector
|

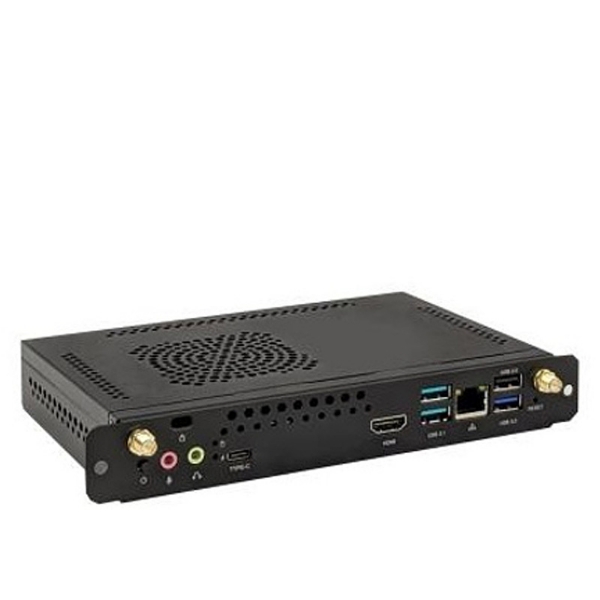

Front Panel
• 3 x USB 3.1 ports • 1 x USB 2.0 port • 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 1 x HDMI® port • 1 x LAN port • 2 x 3.5mm Audio jacks
Function
• 1 x TPM Header
|
System BIOS
• Watchdog supported
Chassis
• OPS Form Factor Chassis: 1.18"(H) x 7.87"(W) x 4.68"(D) • System Weight: 1.5 lb.
|
Power Supply
• Power Obtained from OPS Screen through JAE-80pin OPS connector • Optional Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10/11, IoT, Linux
|
Application
• Digital Signage, Airport, White-board for Education, Conference Room, Smart Boards, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
