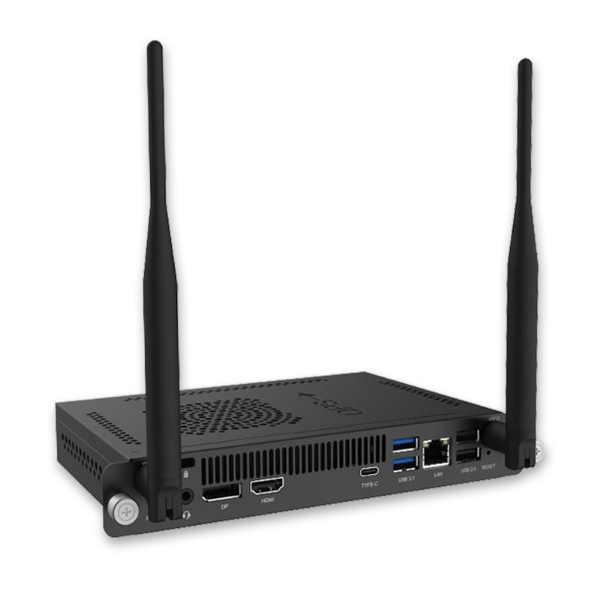

Picture of OPS-U12A

OPS-U12A

12th Gen Core™ -P vPro®, Iris® Xe/UHD Triple 4K/8K Displays, 4 USB + Type-C, LAN + 2 M.2

Featured Highlights
	Intel® Core™ i7/i5/i3-P Processor
	Intel® Alder Lake-u Platform (SOC)
	Intel® Iris® Xe/UHD 12th Gen. Graphics, DP 1.4 + HDMI® 2.1 + JAE 80pin OPS
	2 DDR4 SO-DIMM for up to 64GB Memory
	Intel® I219LM Gigabit LAN, M.2 WiFi/BT
	4 USB, Type-C
	M.2 SSD/NVMe
	5.1 ALC662 Audio Sound
	Power Supply: DC12-19V Input
	OS Support: Windows 10/11, IoT, Linux, FreeBSD
	Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.

SKU: OPS-U12A

Specifications
Request for Info

Product specifications

Processor • 12th Generation Intel® Core™ Alder Lake P-series FCBGA1744 Processor • Intel® Core™ i7-1280P 3.60/4.80Ghz 14Cores 20Threads 24M 28/64W, supports vPro® • Intel® Core™ i7-1270P 3.50/4.80GHz 12Cores 16Threads 18M 28/64W, supports vPro® • Intel® Core™ i7-1260P 3.40/4.70Ghz 12Cores 16Threads 18M 28/64W, supports vPro® • Intel® Core™ i5-1250P 3.30/4.40GHz 12Cores 16Threads 12M 28/64W, supports vPro® • Intel® Core™ i5-1240P 3.30/4.40GHz 12Cores 16Threads 12M 28/64W, supports vPro® • Intel® Core™ i3-1220P 3.30/4.40GHz 10Cores 12Threads 12M 28/64W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Optional: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U • Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U, i5-1334U 3.50/4.70GHz 12Cores 16Threads 12M 28/64W • Intel® Core™ i3-1315U, i3-1305U, i3-1315U 3.50/4.50GHz 6Cores 8Threads 12M 15/55W Chipset • Intel® Alder Lake-P Platform (SOC)
Graphics • Intel® Iris® Xe/12th Gen. UHD Graphics, 8/4K Resolution, • Support 3 Graphics ports • 1 x DP 1.4 port supporting a maximum resolution of 7680x4320 30Hz • 1 x HDMI® 2.1 port, supporting a maximum resolution of 4096x2160 30Hz • 1 x JAE 80pin OPS Connector (with HDMI® 2.0 signal, supporting a maximum resolution of 4096x2160 60Hz) Memory • 2 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® 8111H Co-Lay Intel® I226LM Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 1 x JAE-80pin OPS Connector • 1 x DC-In 2.5mm Power Connector Front Panel • 2 x USB 3.1 Gen. 1 ports • 2 x USB 2.0 ports • 1 x Type-C port (support for USB 3.1) • 1 x DP 1.4 port • 1 x HDMI® 1.4 port • 1 x LAN port • 1 x 3.5mm Audio jack
Function • 1 x TPM header System BIOS • AMI® UEFI BIOS
Chassis • OPS Form Factor Chassis: 7.1"(W) x 4.7"(D) x 1.18"(H) • System Weight: 1.5 lb. Power Supply • Power Obtained from OPS Screen through JAE-80pin OPS connector • Optional Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 Application • Digital Signage, Airport, White-board for Education, Conference Room, etc.
Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • 12th Generation Intel® Core™ Alder Lake P-series FCBGA1744 Processor • Intel® Core™ i7-1280P 3.60/4.80Ghz 14Cores 20Threads 24M 28/64W, supports vPro® • Intel® Core™ i7-1270P 3.50/4.80GHz 12Cores 16Threads 18M 28/64W, supports vPro® • Intel® Core™ i7-1260P 3.40/4.70Ghz 12Cores 16Threads 18M 28/64W, supports vPro® • Intel® Core™ i5-1250P 3.30/4.40GHz 12Cores 16Threads 12M 28/64W, supports vPro® • Intel® Core™ i5-1240P 3.30/4.40GHz 12Cores 16Threads 12M 28/64W, supports vPro® • Intel® Core™ i3-1220P 3.30/4.40GHz 10Cores 12Threads 12M 28/64W • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Optional: • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U • Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U, i5-1334U 3.50/4.70GHz 12Cores 16Threads 12M 28/64W • Intel® Core™ i3-1315U, i3-1305U, i3-1315U 3.50/4.50GHz 6Cores 8Threads 12M 15/55W Chipset • Intel® Alder Lake-P Platform (SOC)
Graphics • Intel® Iris® Xe/12th Gen. UHD Graphics, 8/4K Resolution, • Support 3 Graphics ports • 1 x DP 1.4 port supporting a maximum resolution of 7680x4320 30Hz • 1 x HDMI® 2.1 port, supporting a maximum resolution of 4096x2160 30Hz • 1 x JAE 80pin OPS Connector (with HDMI® 2.0 signal, supporting a maximum resolution of 4096x2160 60Hz) Memory • 2 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® 8111H Co-Lay Intel® I226LM Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 1 x JAE-80pin OPS Connector • 1 x DC-In 2.5mm Power Connector Front Panel • 2 x USB 3.1 Gen. 1 ports • 2 x USB 2.0 ports • 1 x Type-C port (support for USB 3.1) • 1 x DP 1.4 port • 1 x HDMI® 1.4 port • 1 x LAN port • 1 x 3.5mm Audio jack
Function • 1 x TPM header System BIOS • AMI® UEFI BIOS
Chassis • OPS Form Factor Chassis: 7.1"(W) x 4.7"(D) x 1.18"(H) • System Weight: 1.5 lb. Power Supply • Power Obtained from OPS Screen through JAE-80pin OPS connector • Optional Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 Application • Digital Signage, Airport, White-board for Education, Conference Room, etc.
Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
