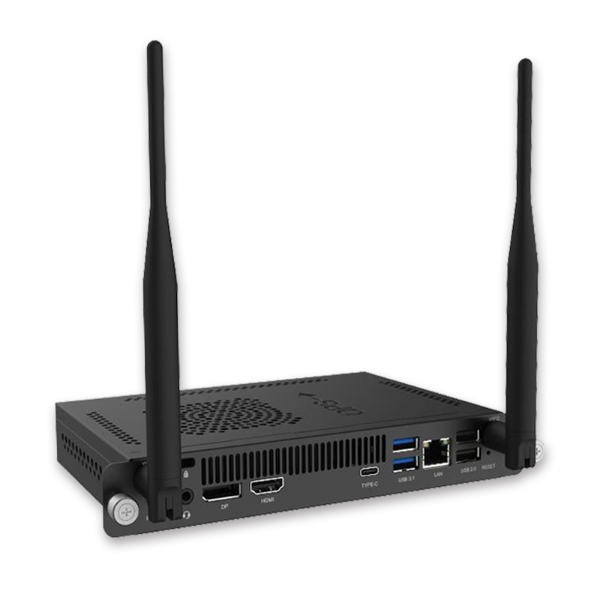

Picture of OPS-UC100A

Picture of OPS-UC100A

Picture of OPS-UC100A

OPS-UC100A

14th Gen Meteor Lake-H, Intel® Arc™ GPU, 4 USB + Type-C, 2.5GbE LAN + 2 M.2

Featured Highlights
	Intel® Core™ Ultra Processors
	Intel® Meteor Lake Platform (SOC)
	Intel® Arc™ GPU, HDMI® 2.0 + JAE 80pin OPS
	2 DDR5 SO-DIMM for up to 64GB Memory
	2.5GbE LAN, M.2 WiFi 7/BT
	M.2 SSD/NVMe
	2 USB 3.1, 2 USB 3.0, Type-C
	Realtek ALC897 HD Audio
	Power Supply: DC12-19V Input
	OS Support: Windows 10/11, IoT, Linux, FressBSD
	Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.

SKU: OPS-UC100A

Specifications
Request for Info

Product specifications

Processor • 14th Generation Intel® Core™ Ultra series • Intel® Core™ Ultra 7 Processor 155H 0.70/4.80GHz 6P/8E/2LPE-Cores 22Threads 24M 28W • Intel® Core™ Ultra 5 Processor 135U 0.70/4.60GHz 4P/8E/2LPE-Cores 18Threads 18M 28W • Intel® Core™ Ultra 5 Processor 125H 0.70/4.50GHz 4P/8E/2LPE-Cores 18Threads 18M 28W Chipset • Intel® Meteor Lake Platform (SOC) • Option: Intel® vPro® Support
Graphics • Intel® Arc™ Graphics • 1 x HDMI®-In port • 1 x HDMI® port, supports a maximum resolution of 4K @30Hz • 1 x JAE OPS connector (HDMI® 2.0, Optional DP 1.4, USB 3.0, 3 USB 2.0, TTL, DC-In) Memory • 2 x DDR5 SO-DIMM • 5200MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • Intel BE200NGW WiFi 7 • 1 x M.2 2230 (Taken by WiFi 7 Module) • Option: 4G Cellular Support Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2242 (for SATA-6Gb/s SSD) • 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD)
Storage • 1 x M.2 2242 (for SATA-6Gb/s SSD) • 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 1 x JAE OPS Connector (HDMI® 2.0, Optional DP 1.4, USB 3.0, 3 USB 2.0, TTL, DC-In) • 1 x DC-In 2.5mm Power Connector Front Panel • 2 x USB 3.1 Gen. 1 ports • 2 x USB 3.0 ports • 1 x Type-C USB port (USB Data only) • 1 x HDMI®-In port • 1 x HDMI® port • 1 x LAN port • 1 x 3.5mm Analog Stereo Audio jack
Function • TPM 2.0 chip System BIOS • AMI® UEFI BIOS
Chassis • OPS Form Factor Chassis: 7.1"(W) x 4.6"(D) x 1.2"(H) • System Weight: 1.5 lb. Power Supply • Power Obtained from OPS Screen through JAE-80pin OPS connector • Optional Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10, 11, Linux Application • Digital Signage, Airport, White-board for Education, Conference Room, etc.
Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
