P-D1508T

D1508 Pentium 2 x 10Gbit IPMI 6SATA

Featured Highlights
	Intel® Pentium® processor D1508,Single socket FCBGA 1667;2-Core, 4 Threads, 25W
	System on Chip
	Up to 128GB ECC RDIMM DDR4 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
	1 PCI-E 3.0 x16,M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
	2 10GbE LAN ports
	6 SATA3 (6Gbps) ports via SoC
	2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)
	1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
	12V DC input and ATX Power Source
	Power Supply: DC12V/ATX input
	OS Support: Windows 10 64-bit, Linux, IOT
	Applications: Set Top Box, Digital Signage, Surveillance, Network Appliance, Media Player/IPTV, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, Medical Equipment, etc.

SKU: P-D1508T

Specifications
Request for Info

Product specifications

Processor • Intel® Pentium® processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W Chipset • System on Chip
Graphics • Aspeed AST2400 Memory • 4x DDR4 DIMM sockets • Supports up to 128GB DDR4 ECC RDIMM • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Network • Dual LAN via SoC 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T and 1000BASE-T, RJ45 output • 1 Realtek RTL8201N PHY (dedicated IPMI) Expansion Slot • 1 PCI-E 3.0 x16 slot • Interface: PCI-E 3.0 x4 • Form Factor: M Key 2242/2280 • Support SATA devices
Storage • SoC controller for 6 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe I/O • 6 SATA3 (6Gbps) ports • 2 RJ45 10GBase-T ports • 1 RJ45 Dedicated IPMI LAN port • 2 USB 3.0 ports (rear) • 4 USB 2.0 ports (via headers) • 1 VGA port • 1 COM port (header) • 1 SuperDOM (Disk on Module) power connectors
System BIOS • 128Mb SPI Flash with AMI BIOS • PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup Systemboard • Mini-ITX:6.7" x 6.7"

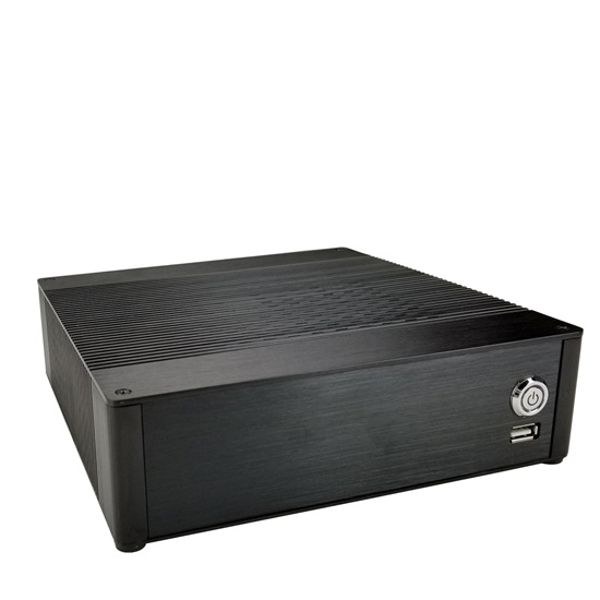

Chassis • 300B Series Aluminum Mini Chassis • Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Optional: 400B Aluminum 2.6" H • Optional: 500B 3.5" H w/LP Slot • Optional: 1750C 1750F Aluminum Form Factor Power Supply • Power: DC12V Power Adapter (UL/CE/FCC Certified) • Optional 100-240V ATX AC Power connector input • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10 64-bit, Linux, IOT Application • Set Top Box, Digital Signage, Surveillance, Network Appliance, Media Player/IPTV, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, Medical Equipment, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Pentium® processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W Chipset • System on Chip
Graphics • Aspeed AST2400 Memory • 4x DDR4 DIMM sockets • Supports up to 128GB DDR4 ECC RDIMM • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Network • Dual LAN via SoC 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T and 1000BASE-T, RJ45 output • 1 Realtek RTL8201N PHY (dedicated IPMI) Expansion Slot • 1 PCI-E 3.0 x16 slot • Interface: PCI-E 3.0 x4 • Form Factor: M Key 2242/2280 • Support SATA devices
Storage • SoC controller for 6 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe I/O • 6 SATA3 (6Gbps) ports • 2 RJ45 10GBase-T ports • 1 RJ45 Dedicated IPMI LAN port • 2 USB 3.0 ports (rear) • 4 USB 2.0 ports (via headers) • 1 VGA port • 1 COM port (header) • 1 SuperDOM (Disk on Module) power connectors
System BIOS • 128Mb SPI Flash with AMI BIOS • PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup Systemboard • Mini-ITX:6.7" x 6.7"
Chassis • 300B Series Aluminum Mini Chassis • Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging) • Color: Black as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets • Optional: 400B Aluminum 2.6" H • Optional: 500B 3.5" H w/LP Slot • Optional: 1750C 1750F Aluminum Form Factor Power Supply • Power: DC12V Power Adapter (UL/CE/FCC Certified) • Optional 100-240V ATX AC Power connector input • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10 64-bit, Linux, IOT Application • Set Top Box, Digital Signage, Surveillance, Network Appliance, Media Player/IPTV, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, Medical Equipment, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
