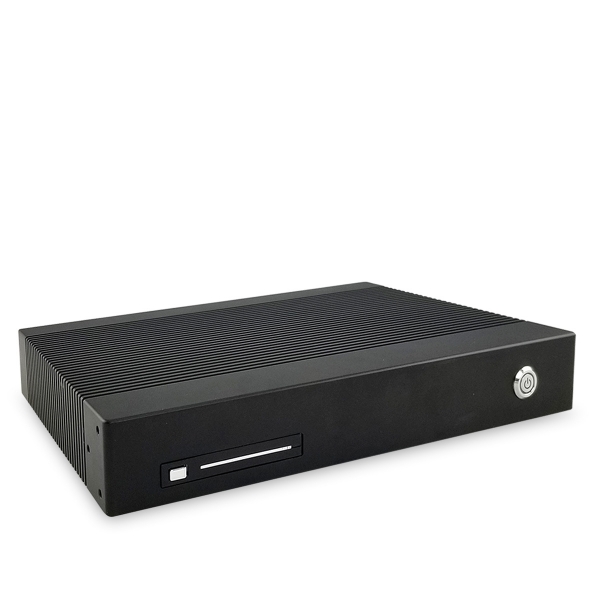

1750F Fanless Series

i7/i5 Socket-S 4Core PC, RISER Slot option, Z790/H510/Z370L2
Featured Highlights
• Dimensions: 12.25"(W) x 8"-9.9"(D) x 1.75"(H), variable depth size
• Intel® Core™ i7/i5/i3 14th-9th Gen. Desktop CPU
•  Z790/H510/Z370L2 selections
• Multi-LAN, with COM, Multi-Display, Multi-I/O, M.2/mSATA/SATA SSD/HD
• Small Form Factor Fanless Chassis with RISER Slot
• DC12-19V Fanless Power Adapter
•   Applications: Industrial Appliance, Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP/Phone, Video Capture, etc.
• This system is VESA
SKU: 1750F
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
B150V3 6/7th Socket 1151 B150 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H110L2V 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek\RTL8111H 2 R+4 H 4 R 2 DP+1 VGA+1 HDMI/H MiniPCIe+PCIe 16x 5.1 ALC662
H8100L2/H8100L3 Socket 1150 Haswell H81 2 DDR3 Intel HD 5000 2 Realtek 4 R+1 H 2 R 1 HDMI+1 DVI+1 VGA 1 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
X570E Socket AM4 Ryzen 3rd AMD X570 2 DDR4 Radeon Vega 1 Intel\i211AT 2 H 4 R+2 H 1 DP+2 HDMI2.0 PCIe 16x 7.1 ALC1220
Q170L2-6DP/8DP 6/7th Socket 1151 vPro Q170 2 DDR3 Radeon 7750 Radeon 7870 Radeon NV810 2 Realtek 4 R+1 H 2 R 6 or 8 DP MiniPCIe+PCIe 16x 5.1 ALC662
1750C-6DP Socket 1150 Haswell H81 2 DDR3 Radeon 7750/7870 Nvidia NV810 2 Realtek 4 R+1 H 2 R 6 or 8 DP MiniPCIe+PCIe 16x 5.1 ALC662
C3338L4 Atom-C (BGA-1310) Denverton C3000 2 DDR4 128G/1Ch Aspeed AST2400 4x1Gbit Intel LAN 2 R 1 H IPMI 2.0 (AST2400) 1x4 3.0 TPM option
H410AL2 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 2 Realtek\RT8111H 2R 2R+2F 1 HDMI+1DP/VGA Option: LPT/S 5.1 ALC662
H410A 10th Gen Socket 1200 H410 2 DDR4SO Intel UHD 630 Realtek\RTL8111F + WiFi 4R 2R + 2F HDMI + DP/VGA 5.1 ALC662
H310CAL2 6/7/8/9th Socket 1151 H310C 2 DDR4SO Intel UHD 2 Realtek\RTL8111H 2 R 2 R+2 F 1 DP+1 HDMI LPT/S 5.1 ALC662
H310CA 6/7/8/9th Socket 1151 H310C 2 DDR4SO Intel UHD 1 Realtek\RTL8111H 4 R 2 R+2 F 1 DP+1 HDMI LPT/S 5.1 ALC662
H170L8-1U 6/7th Socket 1151 H170 2 DDR4SO Intel HD 530 Intel HD 630 8 Intel/F\WGI211AT option 2 R+4 H 2 F+2 H 1 HDMI/H+1 HDMI(Option) PCIe 8x 1F-Console(RJ45) 1F-Console(RJ45)
