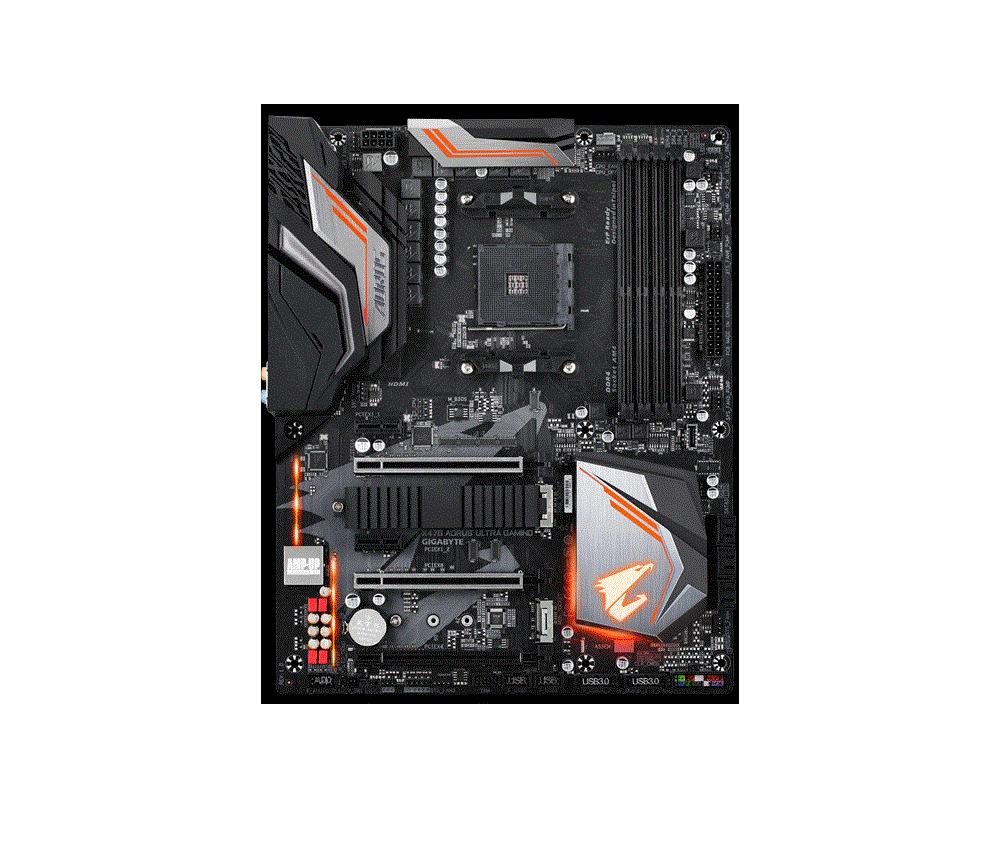

Processor
• AMD® Ryzen™ processor Socket AM4 • AMD® Ryzen™7 Pro 2700X 8C/16T 3.6/4.1G 20M+768K Cache 95W • AMD® Ryzen™7 Pro 2700 8C/16T 3.2/4.1G 20M+768K Cache 65W • AMD® Ryzen™7 2700E 8C/16T 2.8/4.0G 20M+768K Cache 45W • AMD® Ryzen™5 2600 6C/12T 3.4/3.9G 19M+576K Cache 65W • AMD® Ryzen™5 2600E 6C/12T 3.1/4.0G 19M+576K Cache 45W • AMD® Ryzen™5 2500X 4C/8T 3.6/4.0G 10M+384K Cache 65W • AMD® Ryzen™5 2400G 4C/8T 3.6/3.9G 6M+384K Cache 65W with Radeon Vega 11 Graphics
|
Memory
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory • Dual channel memory architecture • Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
Graphics
• 1 x HDMI® port, supporting a maximum resolution of 4096x2160@24 Hz • * Support for HDMI® 1.4 version. • Maximum shared memory of 2 GB
|
Audio
• 2 x Realtek® ALC1220 codecs • Support for Sound Blaster X-Fi MB5 • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out
LAN
• 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) • 1 x Rivet Networks Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)
|
Expansion Slot
• 1 x PCI Express x16 slot, running at x16 (PCIEX16) • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. • * Actual support may vary by CPU. • 1 x PCI Express x16 slot, running at x8 (PCIEX8) • * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. • * Actual support may vary by CPU. • (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4) • * The PCIEX4 slot shares bandwidth with all of the PCI Express x1 slots. The PCIEX4 slot operates at up to x4 mode when all of the PCI Express x1 slots are empty. • 3 x PCI Express x1 slots
* All of the PCI Express x1 slots share bandwidth with the PCIEX4 slot. The PCIEX4/PCIEX1_2/PCIEX1_3 slot operates at up to x1 mode when the PCIEX1_1 slot is populated; the PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. • (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support) • * Actual support may vary by CPU. • 1 x U.2 connector
* When the U.2 connector is populated, the M.2 connector becomes unavailable. • 2 x SATA Express connectors • 8 x SATA 6Gb/s connectors • Support for RAID 0, RAID 1, and RAID 10 • * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
|
Multi-GPU Support
• Support for NVIDIA® Quad-GPU SLI and 2-Way NVIDIA® SLI technologies • * Actual support may vary by CPU. • Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
USB
• USB Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1.1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
2.1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
• Chipset:
1.2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2.6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
3.4 x USB 2.0/1.1 ports (available through the internal USB headers)
• CPU:
4 x USB 3.1 Gen 1 ports on the back panel
|
Internal I/O
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x U.2 connector
• 1 x M.2 Socket 3 connector
• 2 x SATA Express connectors
• 8 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 2 x USB 3.1 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header
• 1 x CPU cooler LED strip/RGB LED strip extension cable header
• 1 x RGB (RGBW) LED strip extension cable header
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper
• 1 x power button
• 1 x reset button
• 1 x Clear CMOS button
• 1 x OC button
• 2 x BIOS switches

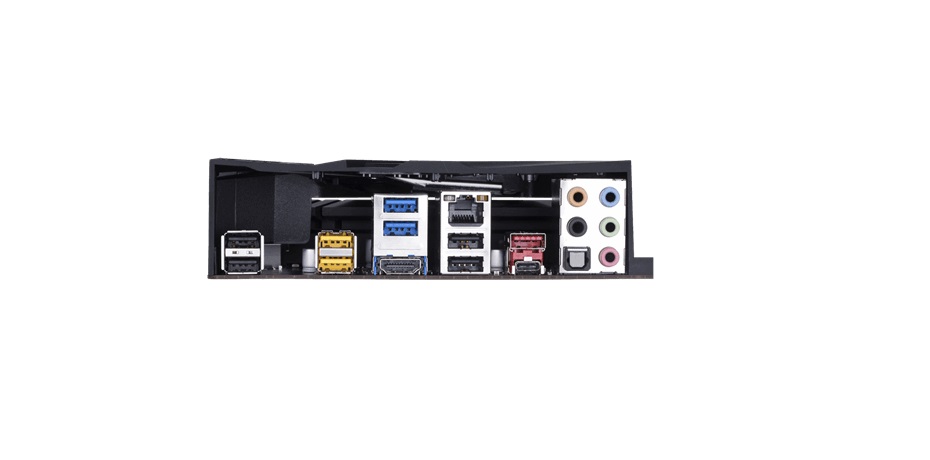

Back Panel I/O
• 1 x PS/2 keyboard/mouse port
• 1 x HDMI® port
• 1 x USB Type-C port, with USB 3.1 Gen 2 support
• 3 x USB 3.1 Gen 2 Type-A ports (red)
• 6 x USB 3.1 Gen 1 ports
• 2 x RJ-45 ports
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
I/O Controller
• iTE® I/O Controller Chip
Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
BIOS
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chassis

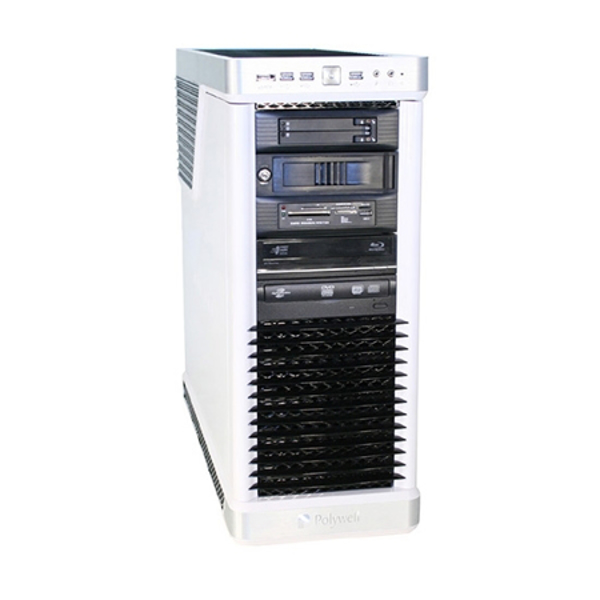

• TS900W 9-Bay ATX Tower • Drive Bay: 9 External 5.25" (convertible to 15 x 3.5" Swap bays) • Slot: 7 (supports double slot add-on card) • Cooling: Quiet and Cool 120mm Fans Cooling • Dimension: 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch • 500W, 600W, 700W, 850W, 900W, 1000W, 1250W or 1500W AC Power Supply 100-240V Switchable, FCC, CE, UR Certified • 80 Plus High Efficiency Active PFC with 140mm Quiet Fan
|
Unique Features
• 3D OSD
• AutoGreen
• BIOS Setup
• Cloud Station
• Color Temperature
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• System Information Viewer
• USB Blocker
• USB DAC UP 2
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
Bundle Software
• Norton® Internet Security (OEM version)
|
OS Support
• Support for Windows 10 64-bit • Support Linux
|
Power Supply
• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
Environment
• Operating Temperature: 0 to +55 C°
• Non operating temperature: -20 to +70 C°
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• RoHS
|
