Processor
• Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 7.5/15/25W • Intel® Core™ i3-7100u 0.80/2.40GHz 2Core 4Threads 3M 7.5/15W • Intel® Core™ i7-7500u 2.70/3.50GHz 2Core 4Threads 4M 7.5/15/25W • Intel® Celeron® 3865u 1.80GHz 2Core 2Threads 2M 10/15W • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u
Chipset
• Intel® Kaby Lake-u Platform (SOC)
|
Graphics
• Integrated Graphics Processor • Support 2 Graphics ports, 1 header • 1 x DP 4K 60Hz Graphics port • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x eDP header (can be customized with LVDS as alternative)
Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB
|
Network
• 2 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • 1 x M.2 2242 (for 4G-LTE Module Pair with SIM Card) • 1 x SIM socket for 3G/4G-LTE option • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x4 slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2242 (for SATA-6Gb/s only) • 1 x M.2 2242 (for SATA-6Gb/s or 4G-LTE Module Pair with SIM Card)
|
Storage
• 2 x SATA 6Gb/s • 2 x M.2 2242 (for SATA-6Gb/s) • Optional eMMC Flash Internal Storage
Audio
• Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
|

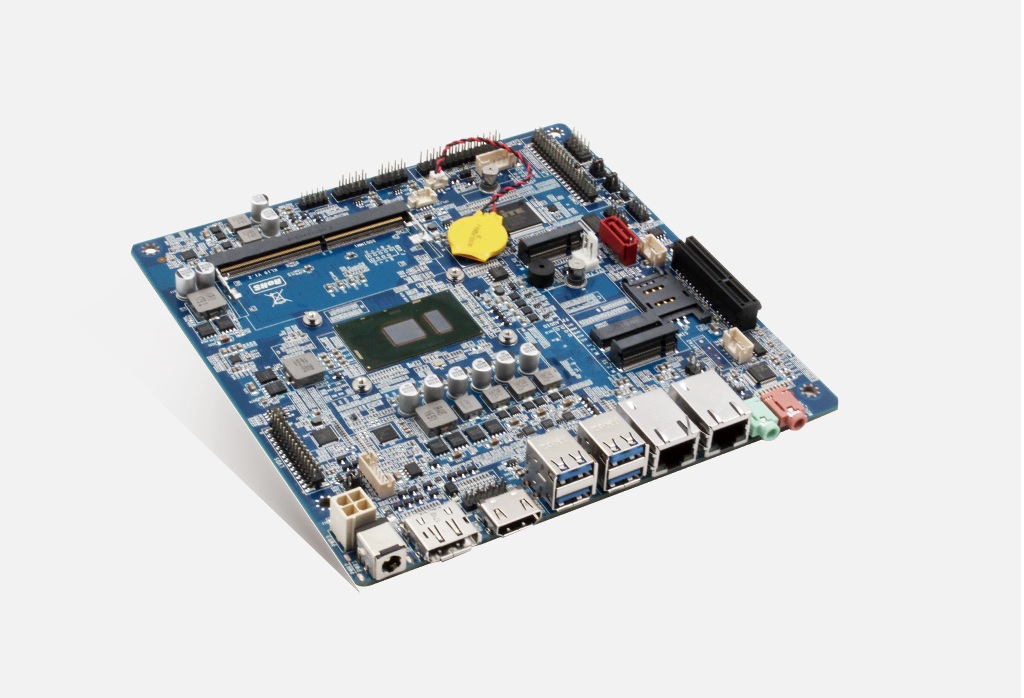

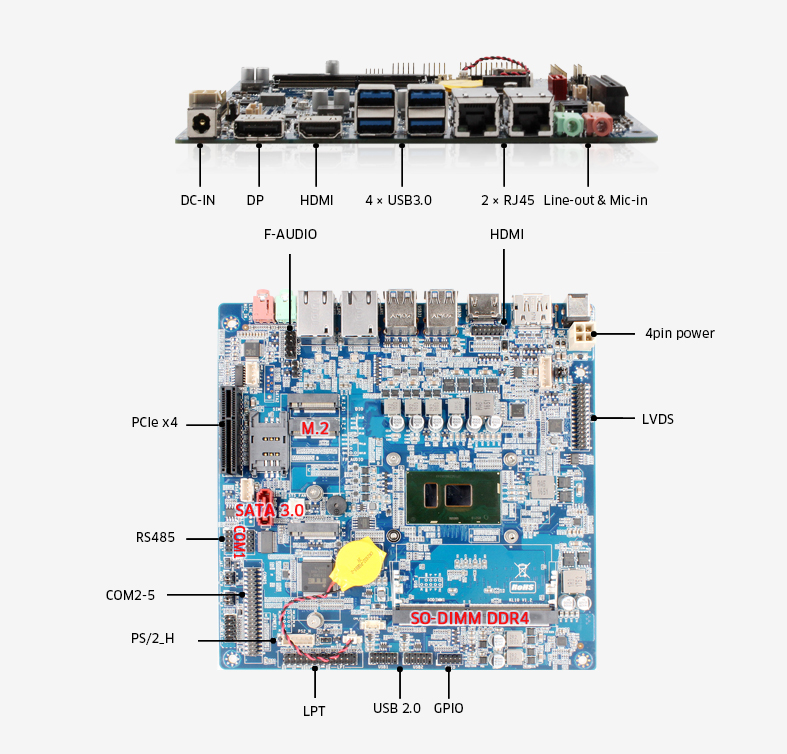

Back Panel I/O
• 4 x USB 3.0 ports • 1 x DP • 1 x HDMI® port • 2 x LAN ports • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 4 x USB 2.0 headers • 6 x Serial COM headers (5 RS-232, RS-485) • 1 x eDP header (can be customized with LVDS as alternative) • 1 x Parallel port header
|
Function
• 1 x 4in/4out GPIO header
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
|
Chassis

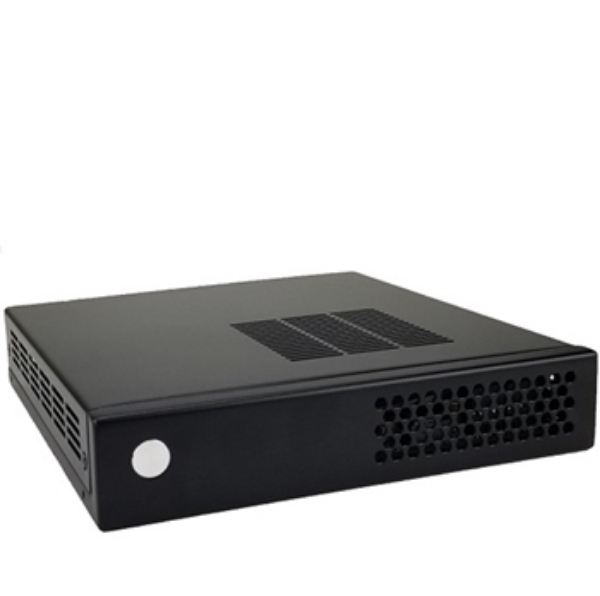

• 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7.00"(W) x 7.20"(D) x 1.38"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: 300B Aluminum 2.1"(H), 300A w/Slim DVD Bay, 300R with RISER slot • Option: 400R with RISER slot, 500S Swap Bay 2 x 2.5" • Option: 1750C with slot • Option: 1750F Fanless with slot
|
Power Supply
• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 8, Windows 10, IoT
• Option: Windows 7 (works with Skylake Processor family only)
|
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
