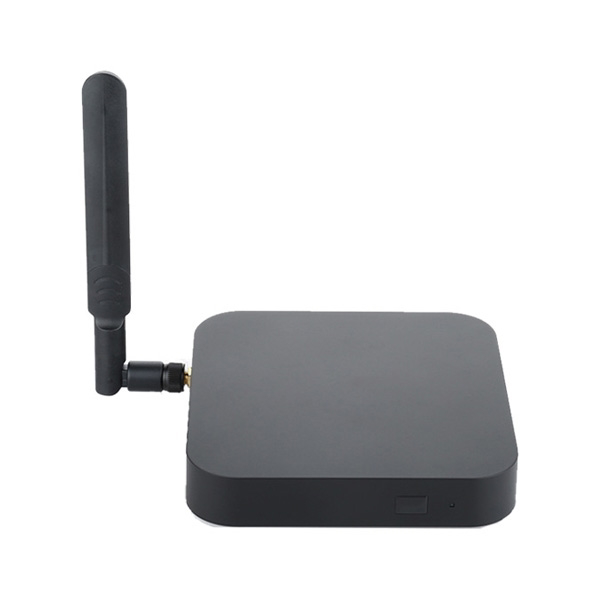

Picture of X7

X7

4Core ARM® Cortex®-A9, HDMI+3 USB2.0+LAN, 11n Dual Band WiFi+BT, 16GB NAND+128GB MicroSD/TF

Featured Highlights
	ARM® Cortex®-A9 Processor
	RK3188 Chipset
	Quad-Core Mali™ 400 GPU, HDMI
	2GB DDR3 Memory
	RJ45 100Mb/s LAN, 11n WiFi+BT
	3 USB 2.0
	5.1 HDMI Audio Sound
	Power Supply: DC5V Input
	OS Support: Android 4.2
	Applications: Set Top Box, Digital Signage, etc.

SKU: X7

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A9 4Core up to 1.60GHz Chipset • RK3188
Graphics • Quad-Core Mali™ 400 GPU • Support 1 Graphics port • 1 x HDMI® , supporting a maximum resolution of 1920x1080 @30Hz Memory • 2GB DDR3 (built-in, non-changeable)
Network • 1 x RJ45 (10/100 Mb/s) LAN • 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.0GHz) • Bluetooth 4.0 Storage • 16GB NAND Flash • 1 x TF (MicroSD) reader, supports 128GB+ MicroSD/TF Card
Audio • 5.1 HD Audio Subsystem via HDMI® 1.4 Interface • Support for S/PDIF Out • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 3 x USB 2.0 ports • 1 x HDMI® port • 1 x LAN port • 1 x S/PDIF port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
System BIOS • Watchdog supported Chassis • Nano-MX5 Plastic Enclosure • Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H), Weight: 0.75 lb. (Net) • Color: Black as default color, custom colors available with special order • Custom logo is available for OEM order (MOQ is required) • Supports VESA/wall mount brackets
Power Supply • Power: DC5V 3A 15W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 4.2
Application • Set Top Box, Digital Signage, Traffic Controller, etc. Environment • Operating Temperature: 0 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A9 4Core up to 1.60GHz Chipset • RK3188
Graphics • Quad-Core Mali™ 400 GPU • Support 1 Graphics port • 1 x HDMI® , supporting a maximum resolution of 1920x1080 @30Hz Memory • 2GB DDR3 (built-in, non-changeable)
Network • 1 x RJ45 (10/100 Mb/s) LAN • 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.0GHz) • Bluetooth 4.0 Storage • 16GB NAND Flash • 1 x TF (MicroSD) reader, supports 128GB+ MicroSD/TF Card
Audio • 5.1 HD Audio Subsystem via HDMI® 1.4 Interface • Support for S/PDIF Out • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 3 x USB 2.0 ports • 1 x HDMI® port • 1 x LAN port • 1 x S/PDIF port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
System BIOS • Watchdog supported Chassis • Nano-MX5 Plastic Enclosure • Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H), Weight: 0.75 lb. (Net) • Color: Black as default color, custom colors available with special order • Custom logo is available for OEM order (MOQ is required) • Supports VESA/wall mount brackets
Power Supply • Power: DC5V 3A 15W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 4.2
Application • Set Top Box, Digital Signage, Traffic Controller, etc. Environment • Operating Temperature: 0 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
