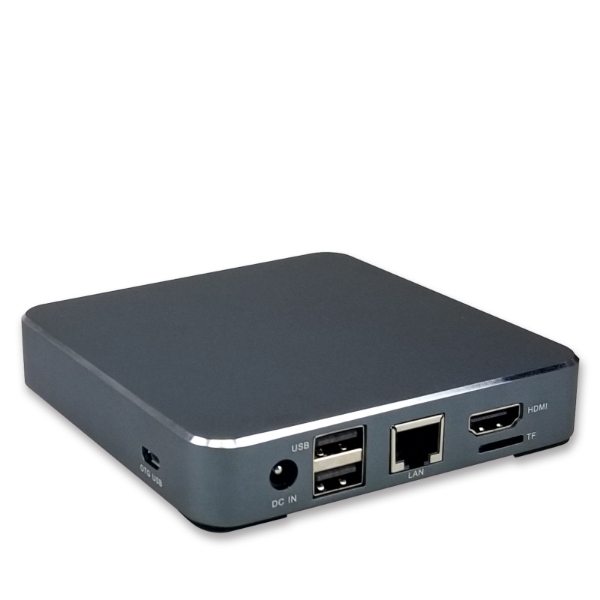

Picture of X10-mini

Picture of X10-mini

Picture of X10-mini

Picture of X10-mini

Picture of X10-mini

X10-mini

8Core ARM® Cortex®-A53, HDMI 2.0 4K Display, Android 6.0/10.0 OS Support, MiniPCIe Slot for 4G-LTE+SIM

Featured Highlights
	ARM® Cortex®-A53 Processor
	RK3368 Chipset
	PowerVR G6110, HDMI 2.0
	2GB SO-DIMM DDR3 Memory
	MiniPCIe full size slot
	RJ45 100Mb/s LAN, 11n WiFi+BT
	2 USB 2.0
	Everest ES8323S Audio chip
	Power Supply: DC12V 2A 24W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Android 6.0, 10.0
	Applications: Set Top Box, Digital Signage, IPTV, etc.

In Stock

SKU: X10-mini

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A53 8Core up to 1.20GHz Chipset • RK3368
Graphics • PowerVR G6110 • Support 1 Graphics port • 1 x HDMI® 2.0, 4K 30Hz Graphics port Memory • 2GB SO-DIMM DDR3 (built-in, non-changeable)
Network • 1 x RJ45 (10/100 Mb/s) LAN • 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.0GHz) • Bluetooth 4.1 • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
Storage • 16GB eMMC Flash Internal Storage • 1 x TF (MicroSD) reader, supports 128GB+ MicroSD/TF Card Audio • Everest ES8323S Audio chip • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 2.0 ports • 1 x HDMI® 2.0 port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector • 1 x TF reader, supports 128GB+ MicroSD Card Other I/O • 2 x 3.5mm Audio jacks (Front)
System BIOS • Watchdog supported Chassis • NUC-X Chassis • Dimensions: 4.10"(W) x 4.10"(D) x 0.99"(H), Weight: 1.5 lb. (Net) 3 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 6.0, Optional Android 10.0 by project only (MOQ required)
Application • Set Top Box, Digital Signage, IPTV, Traffic Controller, etc. • Embedded-Longevity Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A53 8Core up to 1.20GHz Chipset • RK3368
Graphics • PowerVR G6110 • Support 1 Graphics port • 1 x HDMI® 2.0, 4K 30Hz Graphics port Memory • 2GB SO-DIMM DDR3 (built-in, non-changeable)
Network • 1 x RJ45 (10/100 Mb/s) LAN • 802.11 n Dual-Band Wi-Fi (2.4GHz / 5.0GHz) • Bluetooth 4.1 • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
Storage • 16GB eMMC Flash Internal Storage • 1 x TF (MicroSD) reader, supports 128GB+ MicroSD/TF Card Audio • Everest ES8323S Audio chip • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 2.0 ports • 1 x HDMI® 2.0 port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector • 1 x TF reader, supports 128GB+ MicroSD Card Other I/O • 2 x 3.5mm Audio jacks (Front)
System BIOS • Watchdog supported Chassis • NUC-X Chassis • Dimensions: 4.10"(W) x 4.10"(D) x 0.99"(H), Weight: 1.5 lb. (Net) 3 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 6.0, Optional Android 10.0 by project only (MOQ required)
Application • Set Top Box, Digital Signage, IPTV, Traffic Controller, etc. • Embedded-Longevity Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
